Element Trailrunner: Fender Set

ATTENTION: The full set takes a few days to print depending on our order load. Expect this item to ship a few days after ordering.

The fenders are designed for the stock Trailrunner configuration (SHORT BATERY TRAY). The long Battery tray can be use of you offset the tray and add spacers to the mount. They can be used with the other Enduro body’s but may require some trimming on the overall width depending on the body. I did print and install the Knight Customs printable parts on the shell before I started designing just to make sure that what I do is compatible with what they already did. The designs will compliment each other and should folks want to use both, there will not be fitment issues.

We can now remove the rear ladder body mount to clean up the overall look of the interior. Front and rear have caps that bolt to the sliders that are removable should you move on to an aftermarket slider or no slider at all.

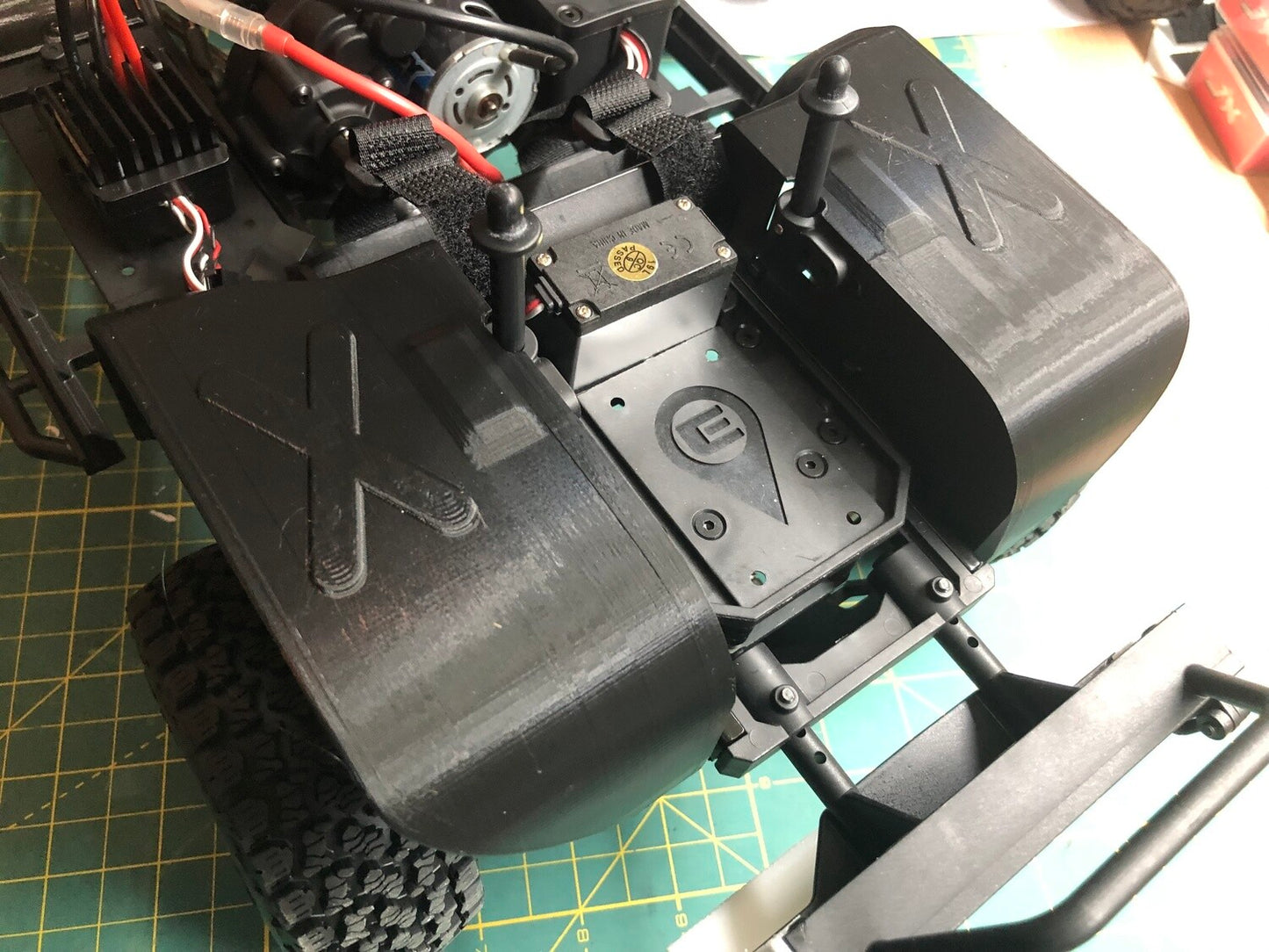

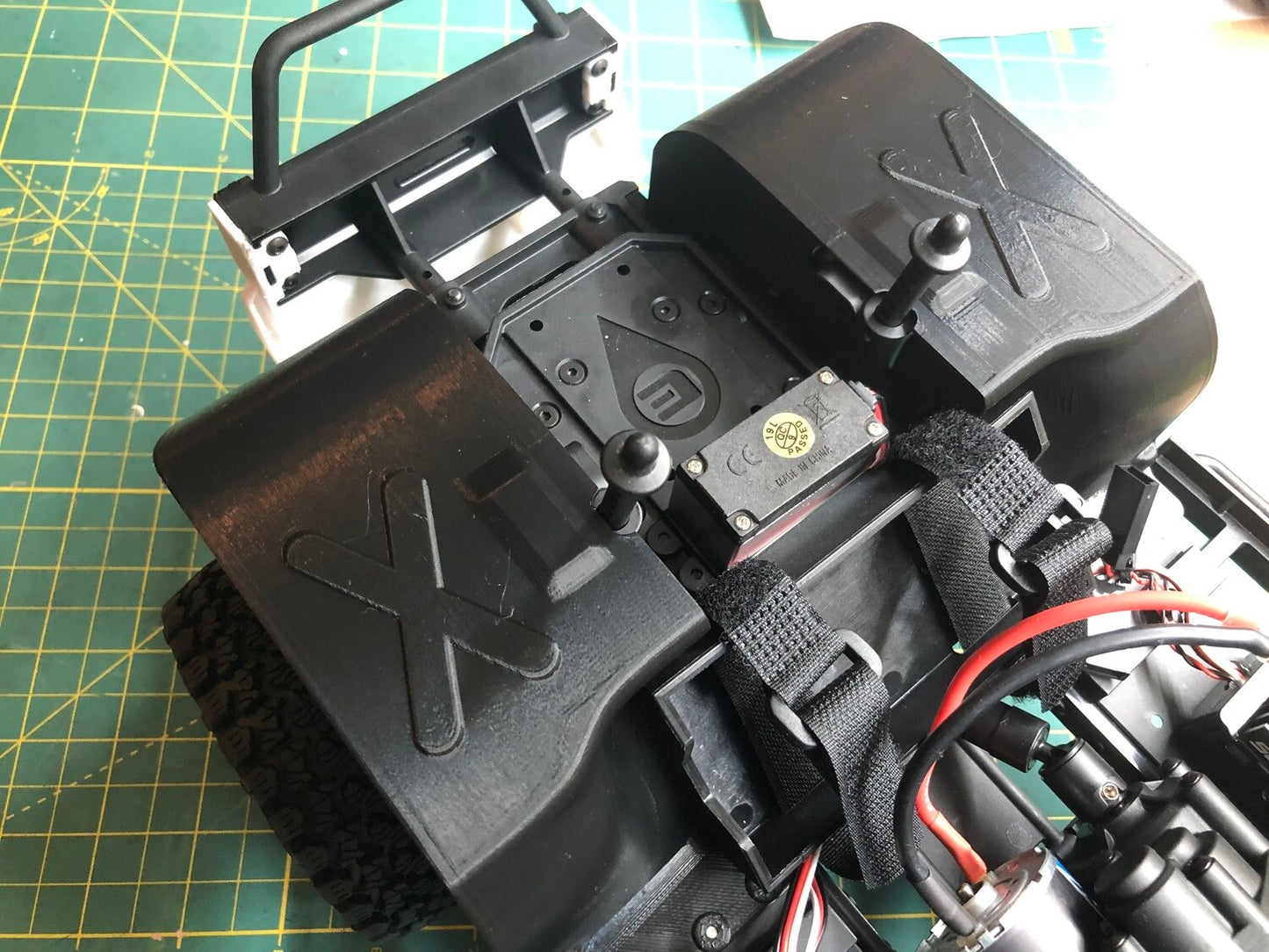

FRONT: Left/Right Fenders, Slider Joiner, Incognito Body Mount Front

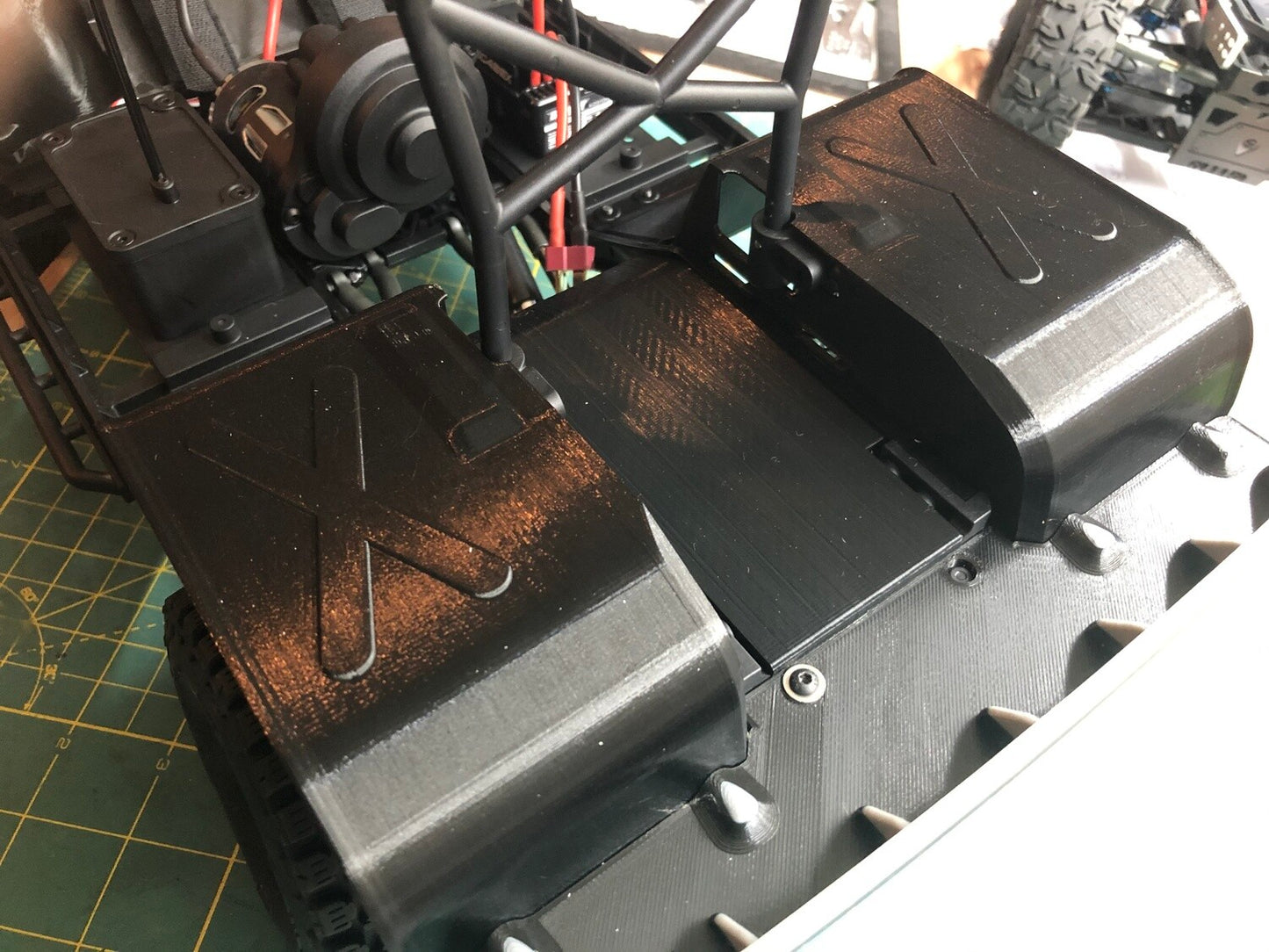

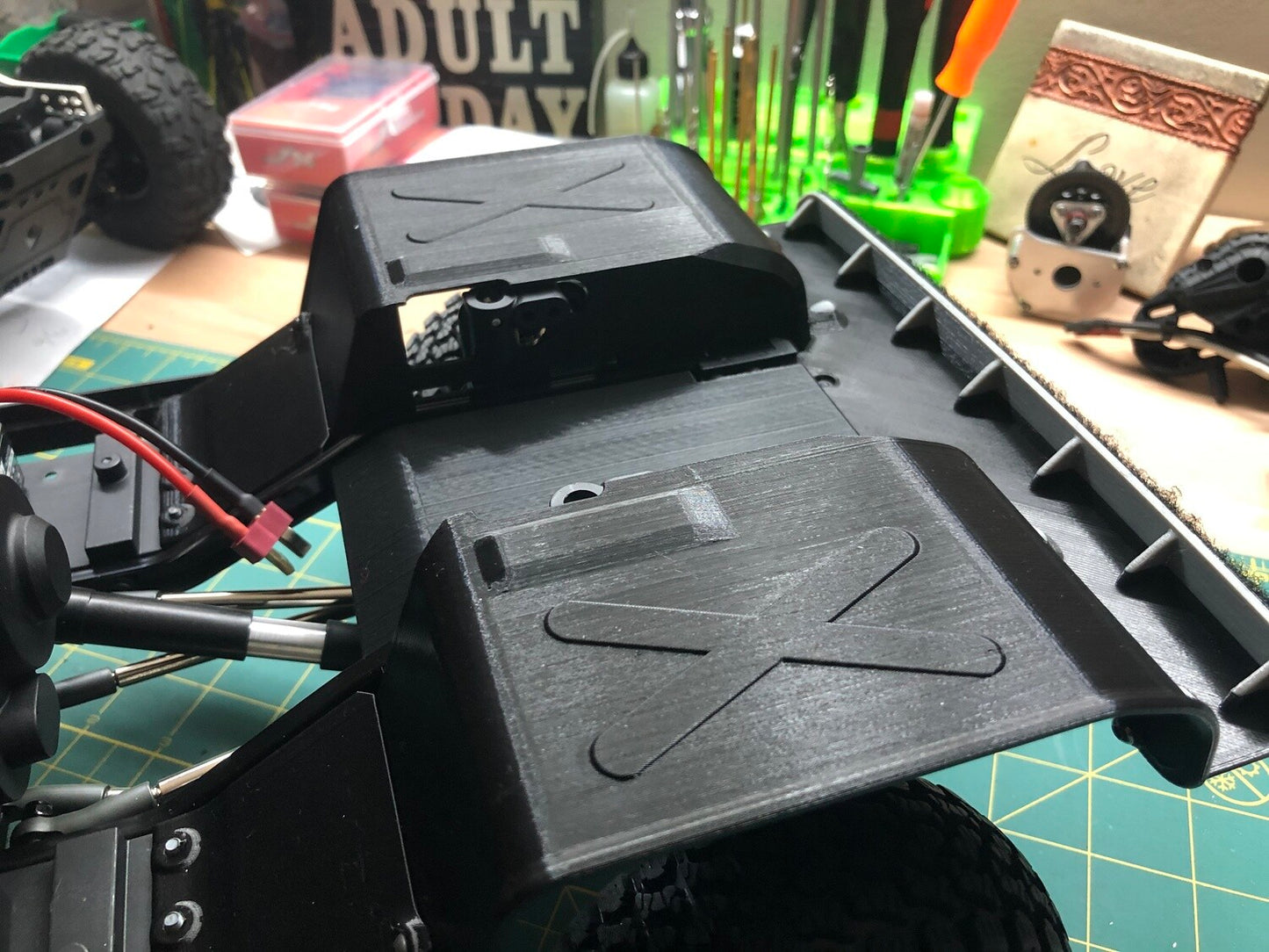

REAR: Left/Right Rear Fender, Bed, Fore Fenders (Fill the gap from the fender to the running board, Split Tail Cap/Tail Cap with velcro body mounting option, Incognito Mount Rear

The Split fender tail is intended to be used when you are not running the rear stock frame brace.

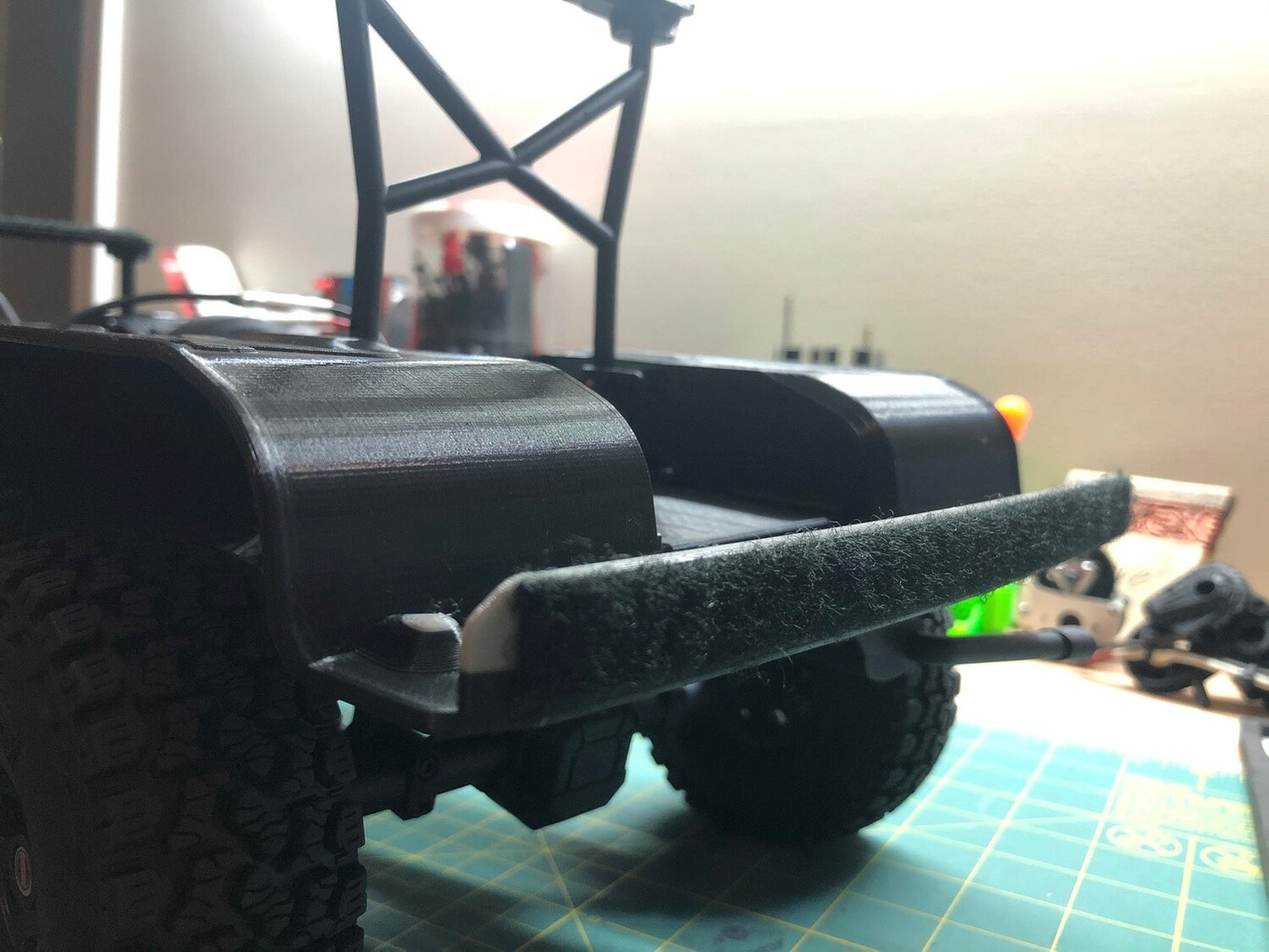

The long tail doubles as a Body mount when fixed with Velcro to the rear of the body allowing you to remove the rear tall body mount.

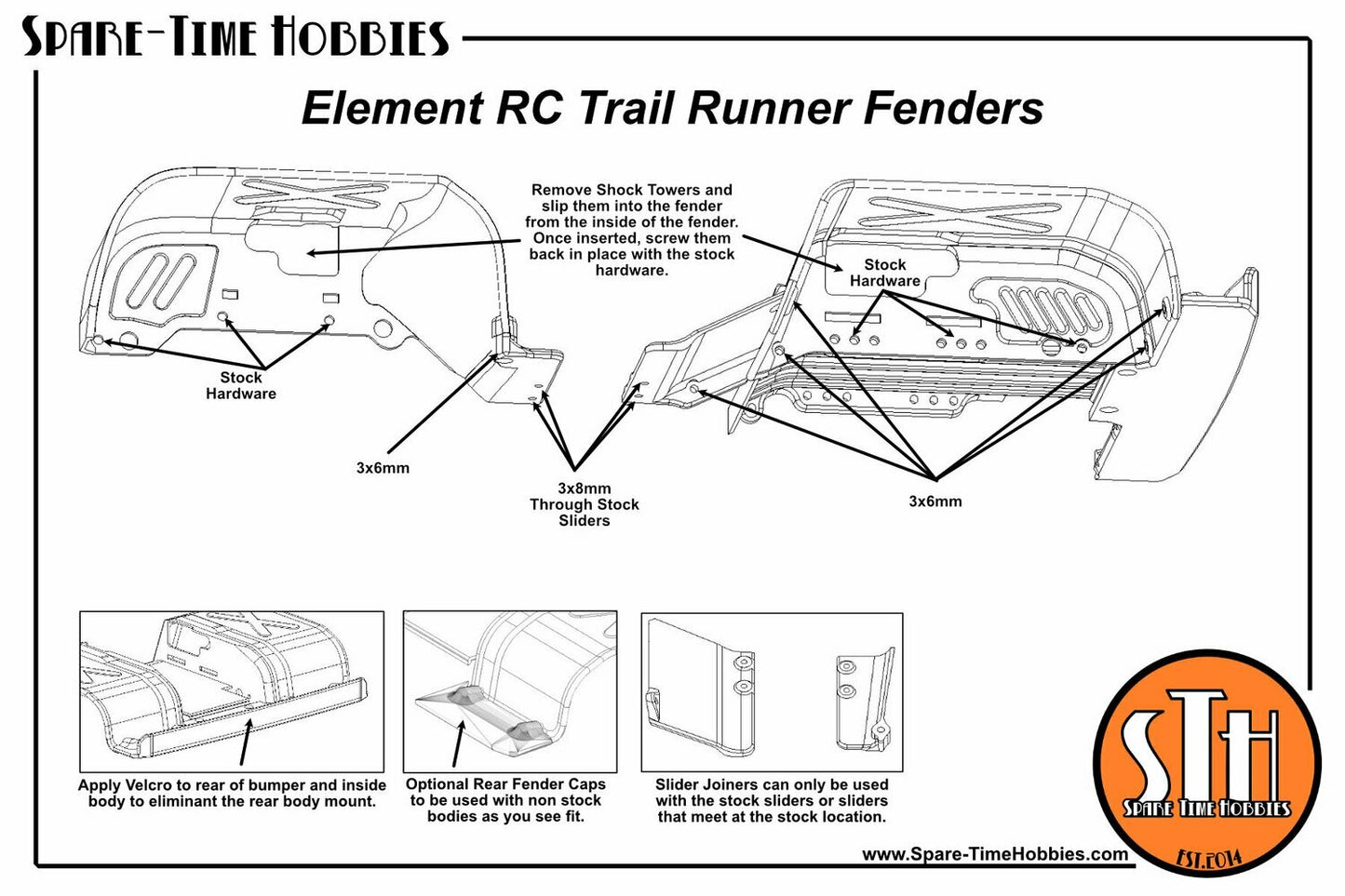

The incognito mounts are attached to the body posts with 2x12mm Cap screws. You attach the body with either velcro or magnets.

Hardware You will need: 14 - 3x6mm, 4 - 3x8mm, 4 - 2x12mm Cap, Velcro

---

IMPORTANT READ:
IF A COLOR OS NOT SPECIFIED, YOUR ORDER WILL BE CYCLED TO THE BACK OF THE Q UNTIL I HEAR FROM YOU FOR YOUR COLOR SELECTION

You are selecting the Backing (Color of the back of the Bed Side Insert) and the Surface (Color of the part you see from the side of the truck. Look at the renderings for color example.

---

To install the Bed components, you must do it in the following order. 1) Remove the radiator, 2) Slip the bed sides between the fuel cell and the cage (It's a Snug Fit But It will Go), 3) Slide in and glue (Shoe Goo/E-6000/Hot Glue) the bed bottom to the side inserts(From Underneath), 4) Install the bed cap and glue or fasten with Zip Ties, 5) Glue/Zip sail panel in place. Use 2x M3 studs (Not Provided) and nitro fuel tube (Not Provided) to mock fuel fill. 6) Install the Radiator
Note: Zip Ties Must be Small (1.4x2.5mm Opening)

---



Due to the nature of 3D printing, items may contain tiny visual blemishes. Items may require some trimming and painting for optimal visual appeal/fit; similar to what you would expect to do with model parts.

---

IMPORTANT: Do not use power drivers on 3D printed parts. Over tightening printed parts and cause premature cracking and crushing. Always ensure you hardware will not bottom out in the screw pocket. This can also cause at 3D printed part to break prematurely.

Printed Parts - These parts will be printed in Black (Unless otherwise requested) using advances slicing methods for maximum strength. All 3D printed parts come with a lifetime replacement guarantee. If you break a part, simply send us a photo and your order number. The photo is simply to evaluate for common issues and help identify potential improvements to existing designs.
