Ford F250 1/10 4WD KG1 Edition Lifted Truck, Burnt Copper - RTR

8993 Ford F250 KG1 Edition Lifted Truck Burnt Copper - RTR

Ford F-250 Super Duty Custom Truck Specs

Features:

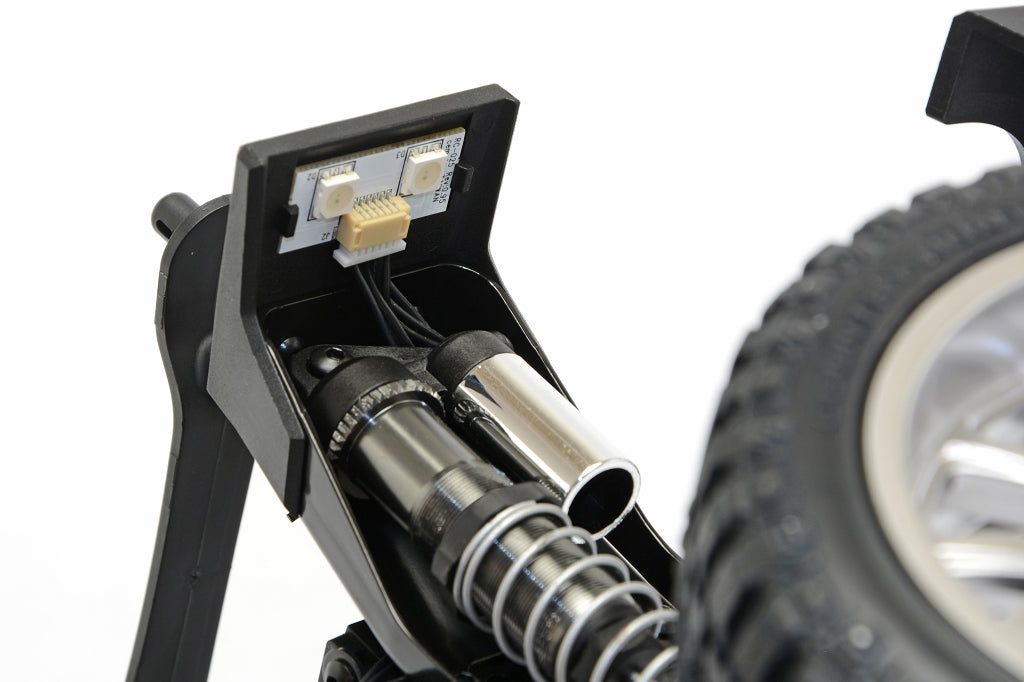

RGB LED Light:

- Stander Under Fender Multicolor RGB LED.

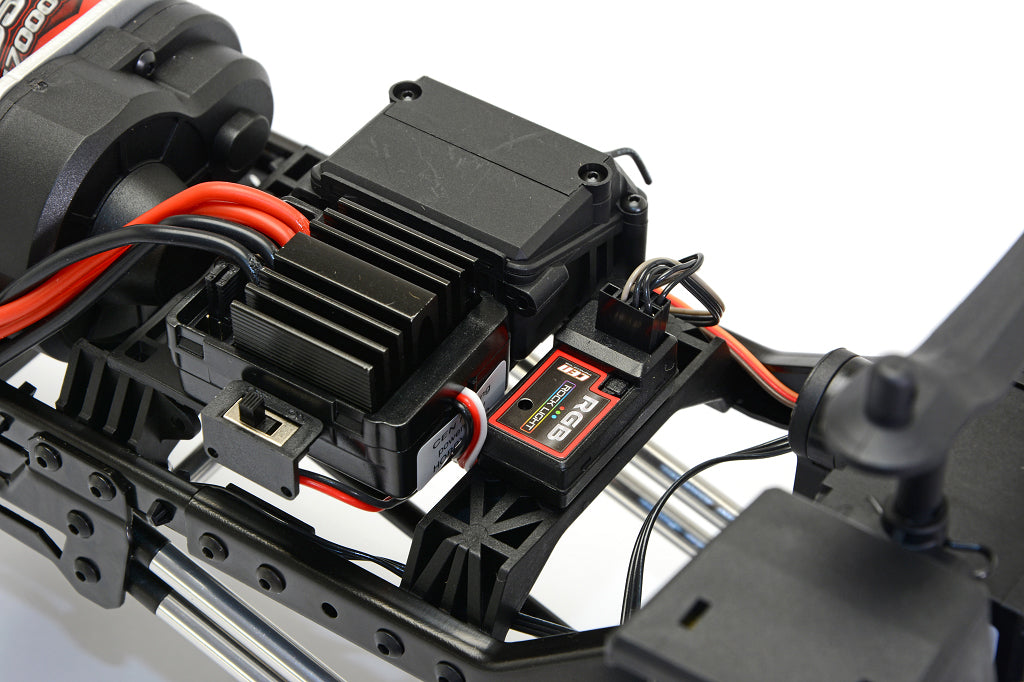

* ESC - 40A WP-1040-Brushed (By HobbyWing).

- Water-Proof and Dust-Proof for All Weather.

- Built-In Capacitor Module.

- Automatic Throttle Range Calibration.

- Low Voltage Cut-Off Protection for Li-Po and NiMH Battery.

- Over-Heat Protection and Throttle Signal Loss Protection.

* Motor

- RS-540 High Torque Brushed Motor.

* Servo

- 12Kg Metal Gear Servo (By Savox).

4.8V - 0.26 sec/60° 10.0 kg-cm.

6.0V - 0.23 sec/60° 12.0 kg-cm.

25T Horn Gear Spline.

* Radio System

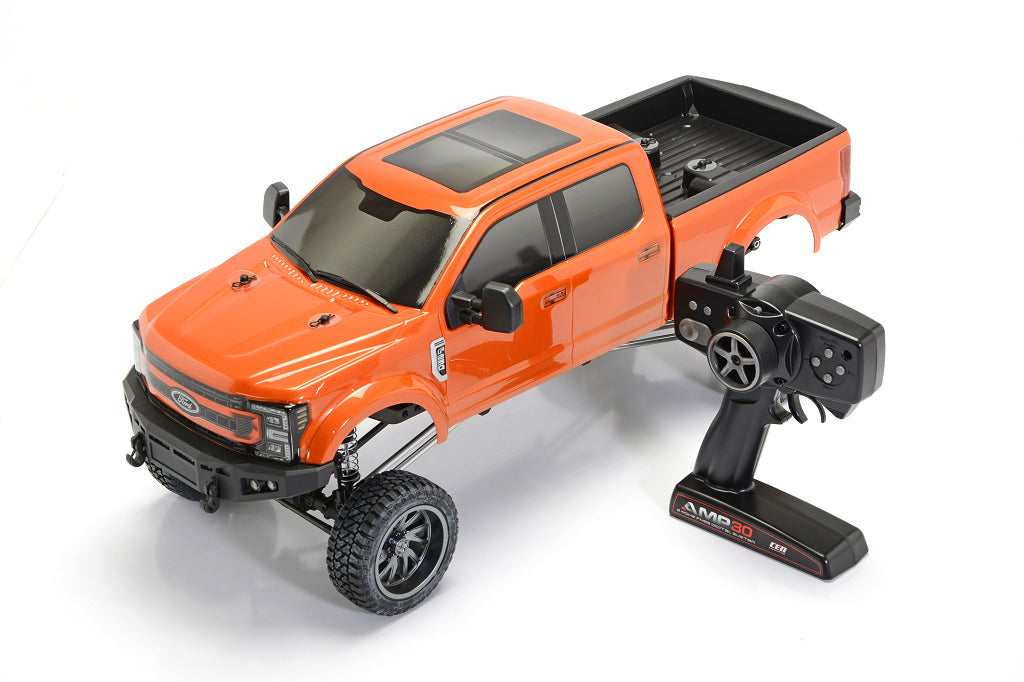

- Pistol-Grip Mod-3S 3 Channel Transmitter.

- Digital Trimming.

- Steering Dual-Rate (ST D/R) Adjustment.

- End Point Adjustment (EPA).

- Build in Failsafe.

Transmitter Model: 82190

    Frequencies: 2.4GHz

    Weight: 375gm

    Power Supply: 4 - AA Alkaline (Not Included).

-Receiver

Receiver Model: G82191

    Frequency: 2.4GHz

    Power Supply: DC 4.8 ~ 6.0V

    Dimensions: 1.35” (L) x 0.72” (W) x 0.53” (H).

Body:

Official Licensed by Ford Motor

- F-250 Super Duty.

- Scale Realistic Body Details.

- Black Bed Liner Coating.

- hard Molded Front & Rear bumpers with build in 3mm LED housing



Chassis:

- Steel Frame Rails.

- CMS (Chassis Mounted Servo) Chassis Design.

- Stamped Steel Shock Hoops.

- Steel Skid Plate.

- Full Precision Ball Bearing Supported.

- Adjustable Turnbuckles.

- High Torque Servo Saver Horn.

- Easy Access Battery Tray.

- Battery Tray Size 146 x 50 x 25mm.

Suspension:

- Custom Lifted Suspension Design.

- 110mm Big Bore Oil Filled Adjustable Coil Over Shocks.

- 12mm over size shock body with 3mm Hardened Steel Polished Shaft.

- Harden Steel Steering Drag Link.

- CNC Machined 6mm Aluminum Linkage.

- Front / Rear Sway Bar.

Drivetrain:

- Full Metal Transmission Gears.

- 4 Wheels Drive.

- Center Shaft Drivetrain for More Power Transferred to the Wheels.

- Hight Efficient Transmission System.

- Wide Range Easy Changeable Gear Box Design.

- Sealed Transmission Case.

- Sealed Axle Housing.

- Metal Planetary Gear Type Differential.

Gear Ratio:

- Hi / Speed Ratio 1.56:1

- Hi / Torque Ratio 2.8:1

- Spur / Pinion Gear 32p85/32p12T

- Ring & Pinion Gear30/15T 2:1

Wheel:

Official Licensed by KG1 Forged

-KF004 Vile Wheel.

-66.50mm x 37.5mm.

Tires:

Official Licensed Fury Tires

-Low Profile Country Hunter tires.

-65 x 100.50 x 38.50 mm.

Specs:

Item Number: 8992 / 8993

F-250 Super Duty

1/10 Scale 4 wheels Drive Lifted Custom Truck

Length:          25.6 inches (650mm).

Width:            10.04 inches (255mm).

Wheelbase: 16.02 inches (407mm).

Ground Clearance: 3.54inch (90mm).

Weight:         5.51 lb. 2.5 kg.

Battery Recommend : 2S 5000mah Lipo Battery with dean connector
