BowHouse RC: Hood Hinge Mount Set for Mojave and Hilux

BowHouse RC: Hood Hinge Mount Set for Mojave and Hilux

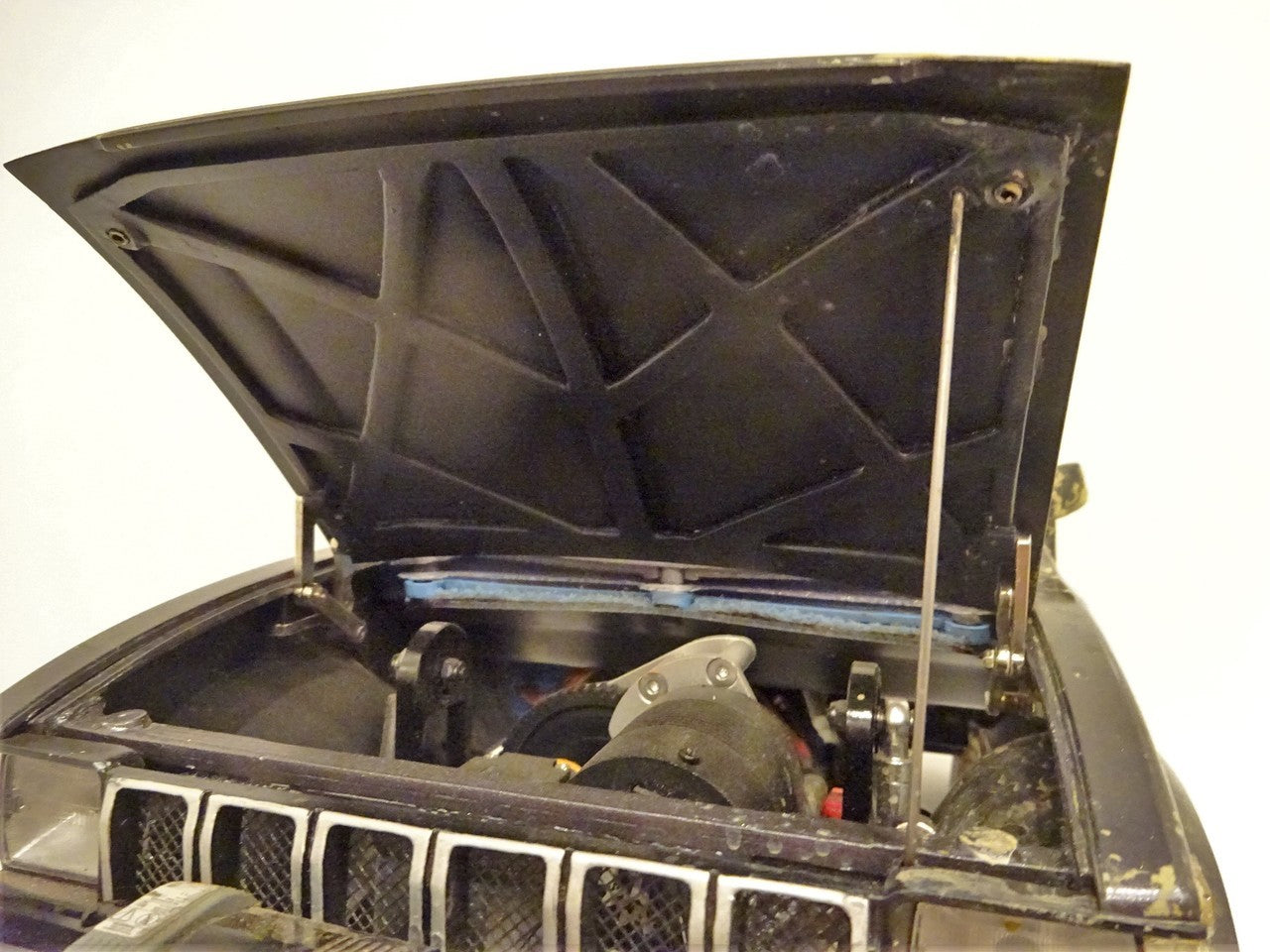

Transform the functionality and scale realism of your RC4WD Mojave or Hilux hard body with the BowHouse RC Hood Hinge Mount Set. Designed for hobbyists who demand precision and performance, this kit enables a clean, functional hood hinge setup while maintaining a secure structure for your grille, cowl, and accessories—even if you’ve trimmed away the lower front fenders or valance.

Features:

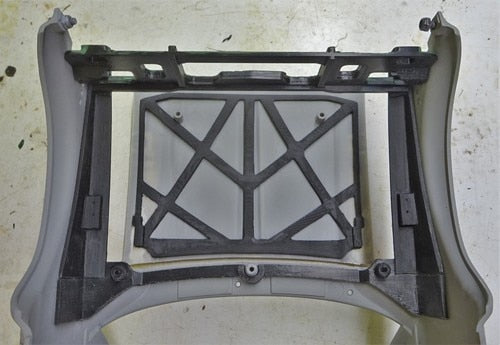

• A structural radiator support provides strong grille mounting, even with aggressive body trimming.

• The included cowl support replaces the molded-in windshield and dash mounts that need to be removed when making a working hood.

• Compatible with RC4WD and n00b inner fenders—some trimming may be needed for a perfect fit.

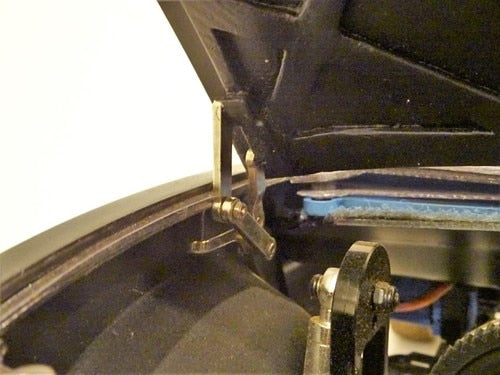

• Provides mounting points for hood hinges using durable underhood and inner fender brackets.

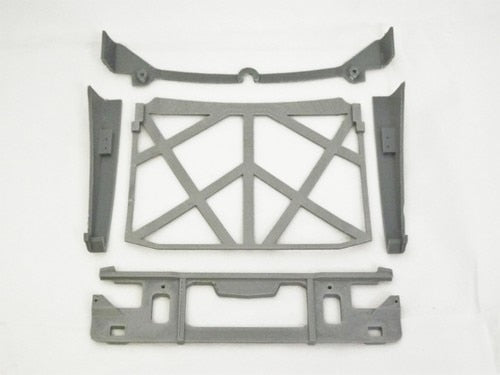

Included in the Kit:

• (1) Radiator support

• (1) Cowl support

• (1) Underhood brace with hinge mounts

• (2) Inner fender brackets with hinge mounts (Left and Right)

• (4) Flat Head Tapping Screws (1.6 x 6mm)

• (4) Button Head Screws (M3 x 8mm)

Installation Notes:

To complete your setup, you’ll need to source the RC4WD Chevrolet Blazer Functional Hood and Tailgate Hardware (Z-S1564), available online. Please note, magnets and a hood prop are not included and will require custom installation. As with all 3D printed parts, expect to do some light sanding or finishing for the best fit and finish.

Whether you're building a show truck or a trail beast, this hinge mount set is the perfect upgrade for adding realism and utility to your RC experience. For detailed installation tips and build inspiration, check out the official BowHouse RC build threads on Scale Builder’s Guild and RCCrawler.
