Losi Mini Weight Balancing Set

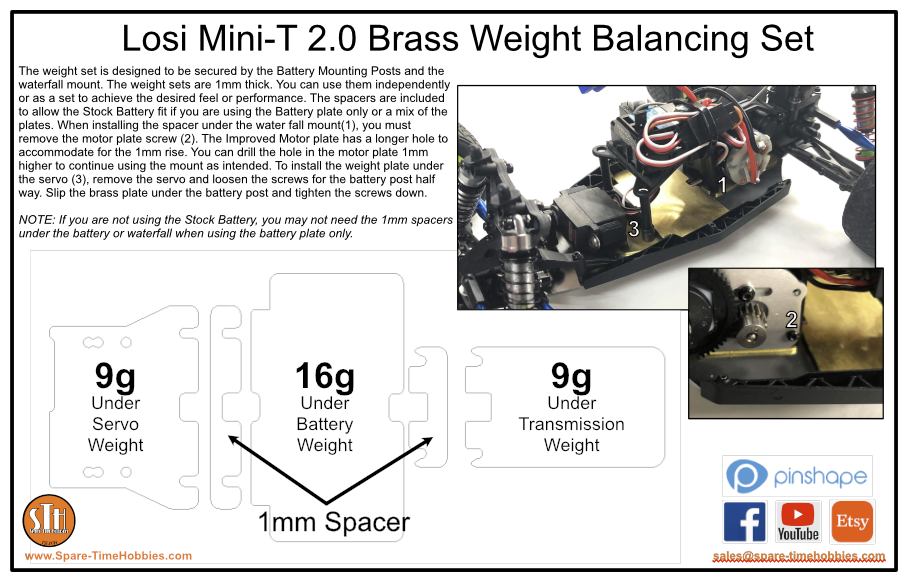

Mini-T 2.0 Weight Tuning Set: The weight tuning set allows you to adjust or add weight to the truck with tree 1 mm thick brass plates. You can add a total of 34grams to the car.

Front Plate: 9 grams
Under Battery Plate: 16 grams
Rear Plate: 9 grams

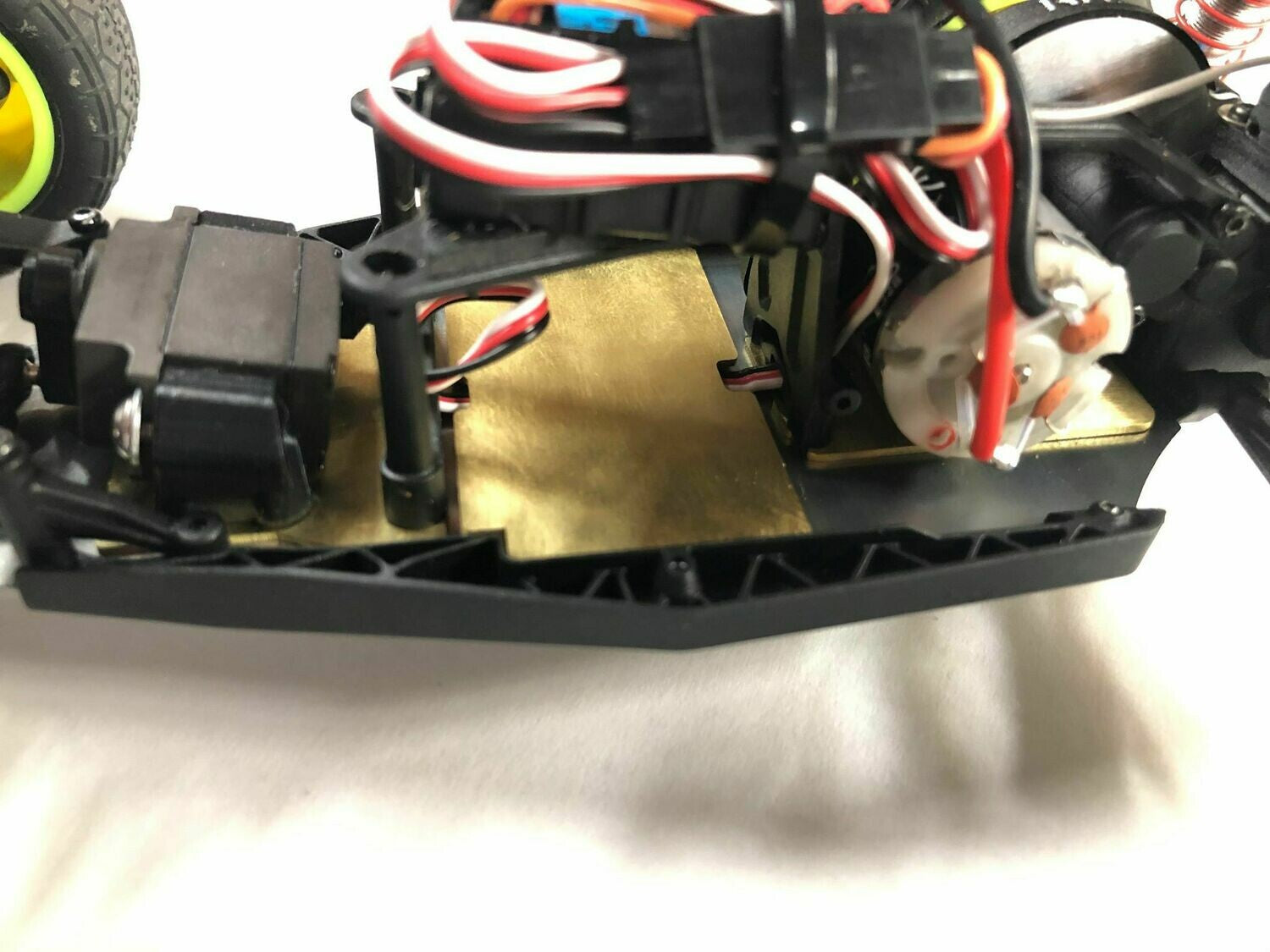

The front plate mounts under the servo and will rase your servo 1mm. There are three mounting holes in the plate +6mm and +8mm. These or for people who have drilled the chassis to move the servo forward to use it without the servo saver. You can also use them as a template to make your drill point for moving the servo. The plate is initially mounted under the battery posts. The plate has been slotted to allow youto slide the plate under without completely removing the screws.

The Under Battery Plate requires the front battery post and waterfall to be Shimmed 1mm with the stock battery. If you are using the front and rear plates, the waterfall and battery tie down have already been shimmed with the weight plate.

The Rear Weight Plate is mounted under the battery posts. The plate has been slotted to allow you to slide the plate under without completely removing the screws. If you need additional rear weight, you can add up to 14 grams of sticky wheel balancing weight on the brass plate under the transmission cavity.

Mini-B Weight Tuning Set: The weight tuning set allows you to adjust or add weight with 1 mm thick brass plates. (SEE CHART FOR BREAK DOWN)

The front plate mounts under the servo and will raise your servo 1mm. There are three mounting holes in the plate +6mm and +8mm. These or for people who have drilled the chassis to move the servo forward to use it without the servo saver. You can also use them as a template to make your drill point for moving the servo. The plate is initially mounted under the battery posts. The plate has been slotted to allow youto slide the plate under without completely removing the screws.

The E-Palate can be used to mount your electronics for easy removal and cleaning. The E-plate also has an insert plate under the battery to adjust bias. There is included one large under battery plate to further adjust the mass of the car.

The Rear Weight Plate is mounted under the waterfall mount posts. The plate has been slotted to allow you to slide the plate under without completely removing the screws. If you need additional rear weight, you can add up to 14 grams of sticky wheel balancing weight on the brass plate under the transmission cavity.

Mini Drag Car Weight Tuning Set: The weight tuning set allows you to adjust or add weight with 1 mm thick brass plates and a 1mm front Plate for your electronics if you decide you do not need the brass up front.

Aluminum Front E-Plate: 6.4 grams
Brass Front E-Plate: 21.8 grams
Brass Full Battery Plate: 24.2 grams
Brass Pocket Battery Plate: 16 grams (Offset)
Brass Tail Plate: 14.4 grams

The front plate mounts under the servo and will raise your servo 1mm. There are three mounting holes in the plate +6mm and +8mm. These or for people who have drilled the chassis to move the servo forward to use it without the servo saver. You can also use them as a template to make your drill point for moving the servo.

The battery plate come in two configurations. You have a Full plate and a plate with a cut out. The cut out plate lets you flip the void front or rear to shift the weight bias.

The tail plate adds additional weight, lowers the chassis plate 1mm, and adds a touch of stiffness to the rear of the chassis. The plate will allow for both of the included wheelbases that are built into the chassis.

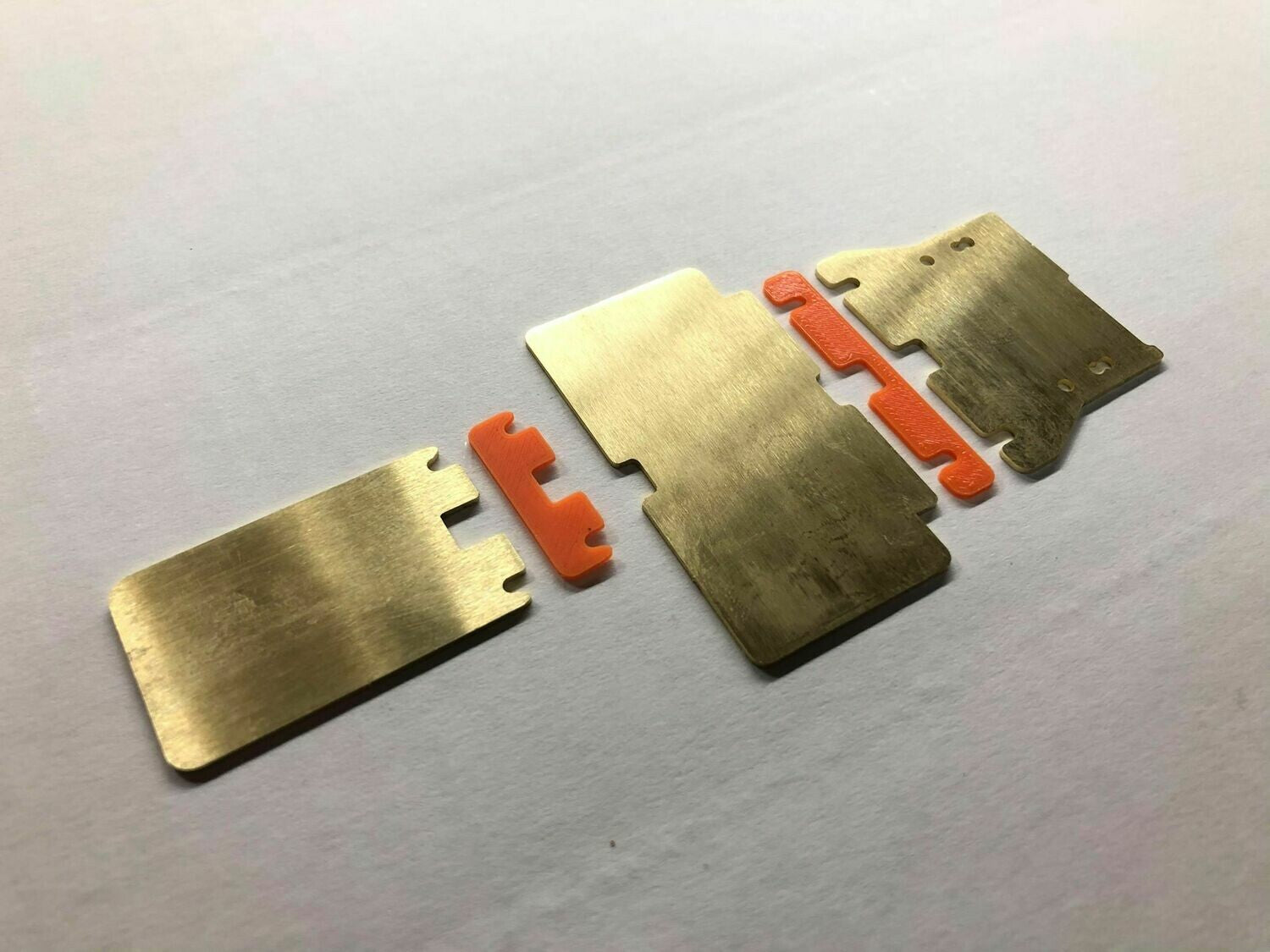

Parts are but from 1mm Brass and bonus aluminum plate is 1mm aluminum.
