Mamba Micro X2, 16.8V WP Sensored ESC w/ 1406-2280KV Combo

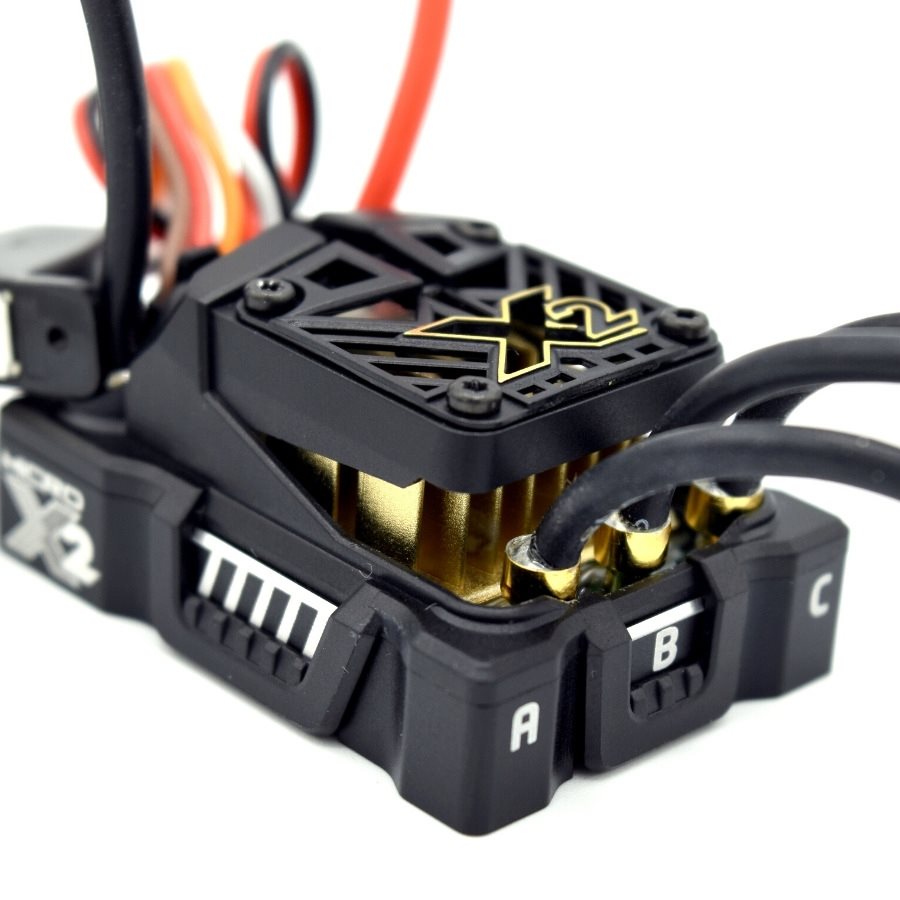

The Mamba Micro X2 is a refresh of the popular Mamba Micro X. This ESC increases the maximum input voltage to 4s, added DATA LOGGING, and CRYO-DRIVE TECHNOLOGY; CryoDrive allows the ESC to run cooler and more efficiently at partial throttle. Like its predecessor, is waterproof, and has SENSORED MOTOR SUPPORT.
This ESC is ideal for the weight conscious builder or where space is limited, used in low speed crawling or trail running in vehicles weighing up to 8lbs on 2s or 3s. It can also be used in slightly more aggressive setups like rock racing and extended hill climbing on vehicles up to 4lbs. Recommended motors include Castle's "Slate" crawler motors.
Note: Use of an external BEC is required if running a high power or digital servo.
Input Voltage range 2S-4S
ESC contains no internal BEC. Package includes an external Castle 10Amp CC BEC (010-0004-00)
Sensored Motor capable
Convenient transmitter programming for six common adjustable settings.
Additional settings and software updates available via Windows-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App and a B-LINK Bluetooth Adapter (sold separately)
Telemetry Ready (Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters)
Auxiliary Wire Functionality allows for "on-the-fly" adjustments such as Max Power and Max Brake.
Audible Alerts that will notify you of possible issues with calibrations and error conditions.
Designed and manufactured in Olathe, Kansas.
Mamba Micro X2 w/1406-2280Kv Purchase Includes:
Mamba Micro X2 ESC with 4 mm Connectors

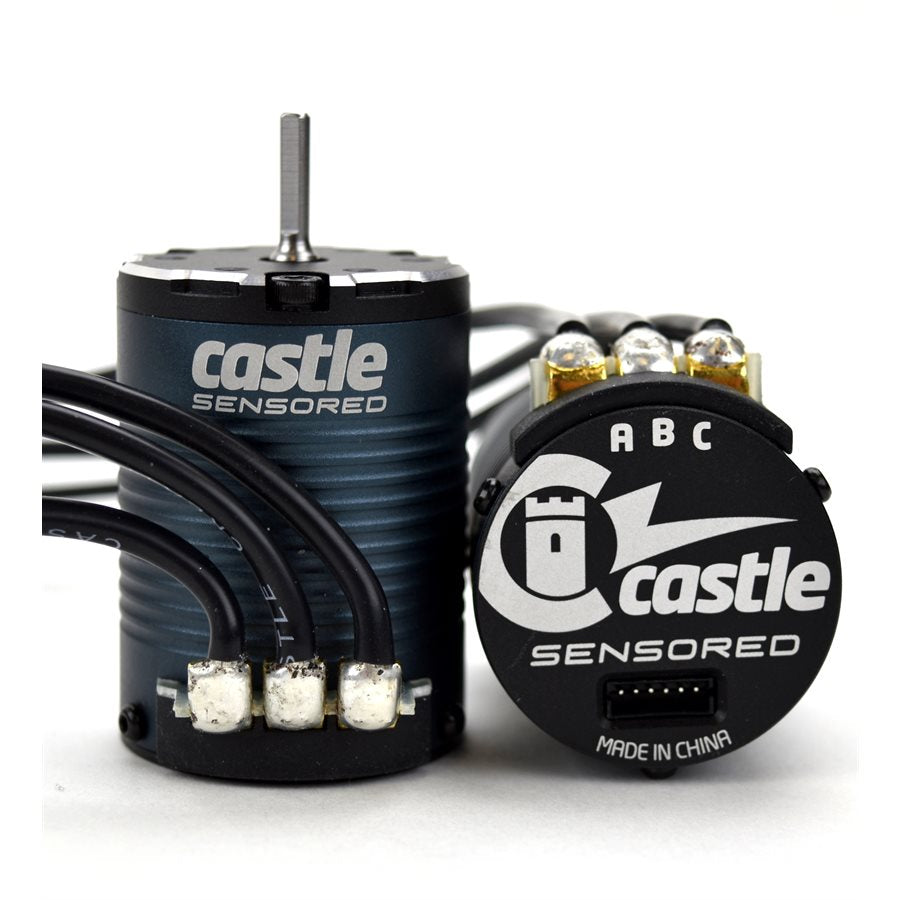

1406-2280Kv Sensored Motor
Coupon for free Castle Link USB adapter
Driver's Ed and Quick Start Guide
Item First Received: 09/22/2022
