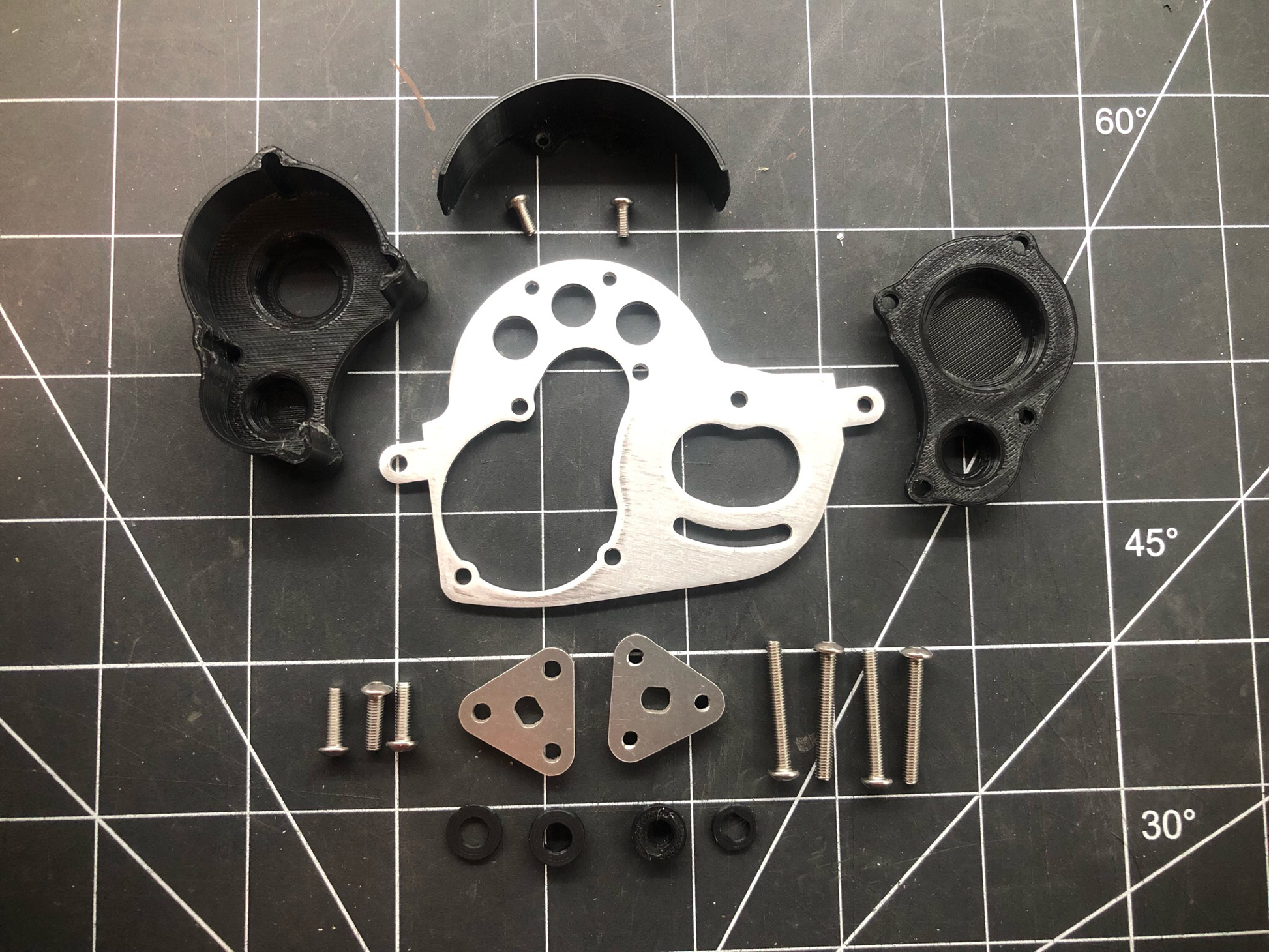

NOTE: The kit only includes the motor plate, hardware, and printed gear case. If you opted to print your own transmission case, the STL will be available to download after purchase.

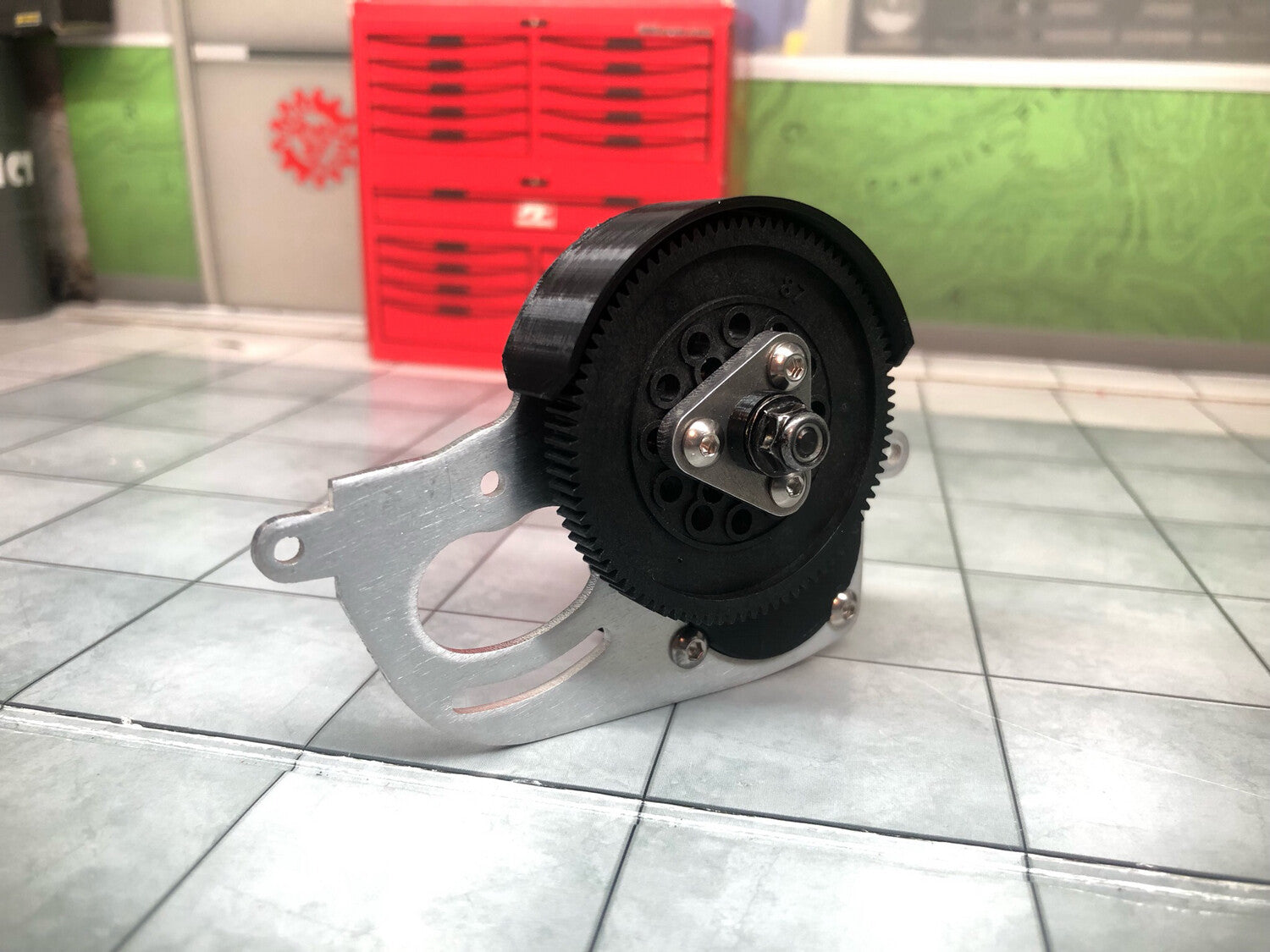

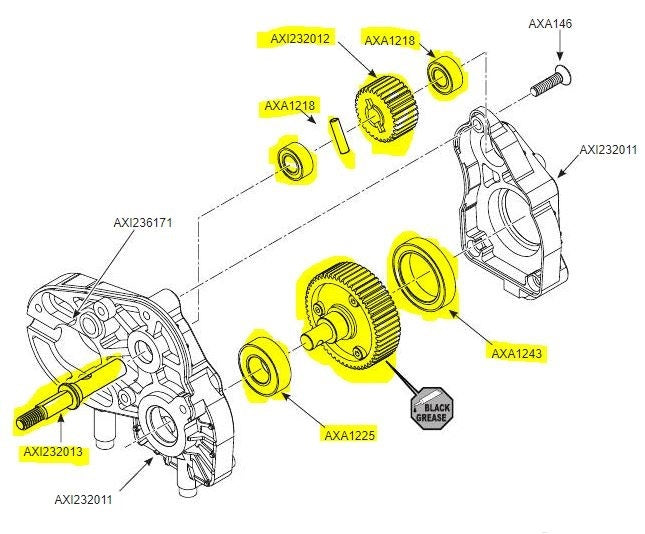

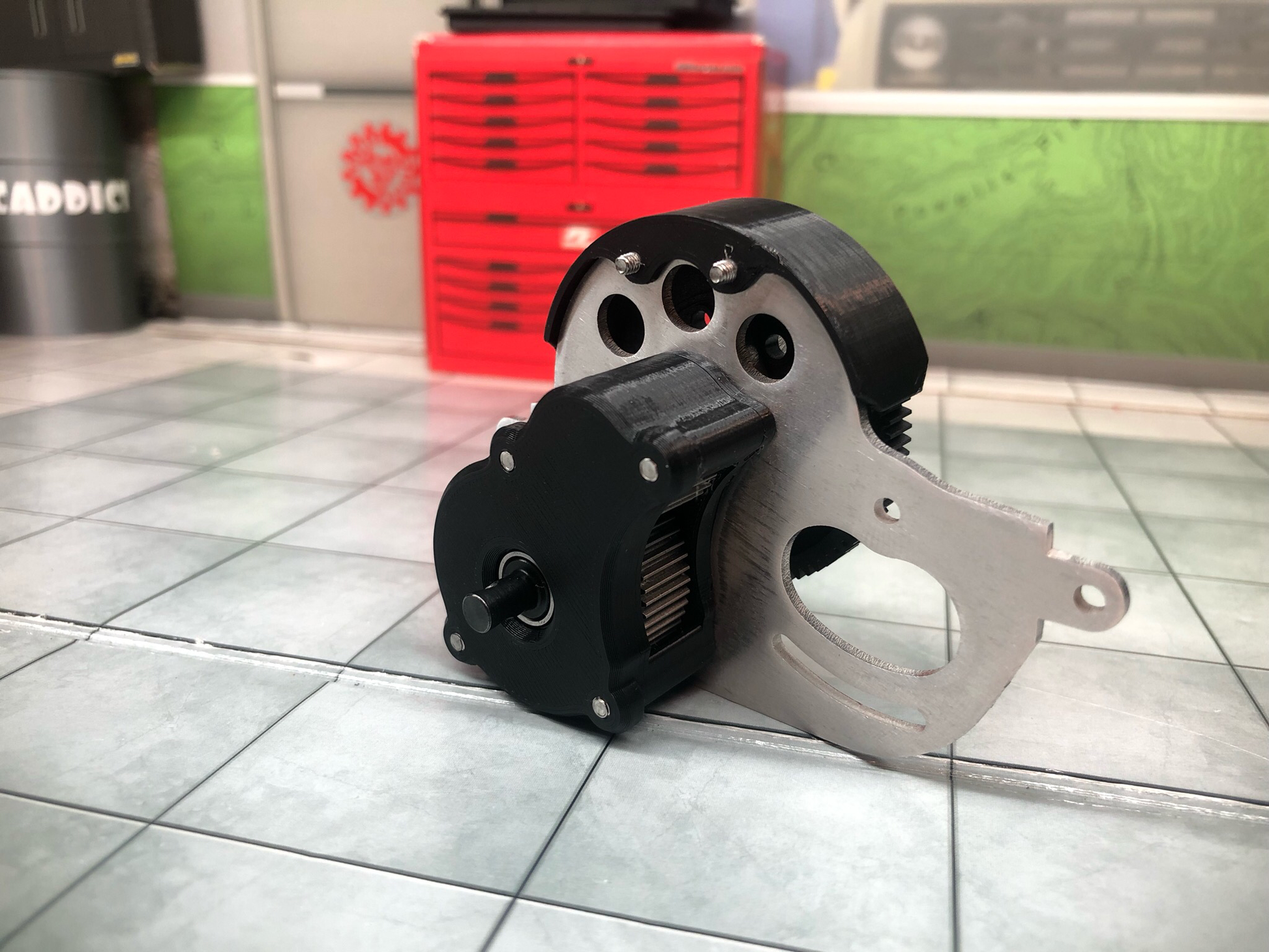

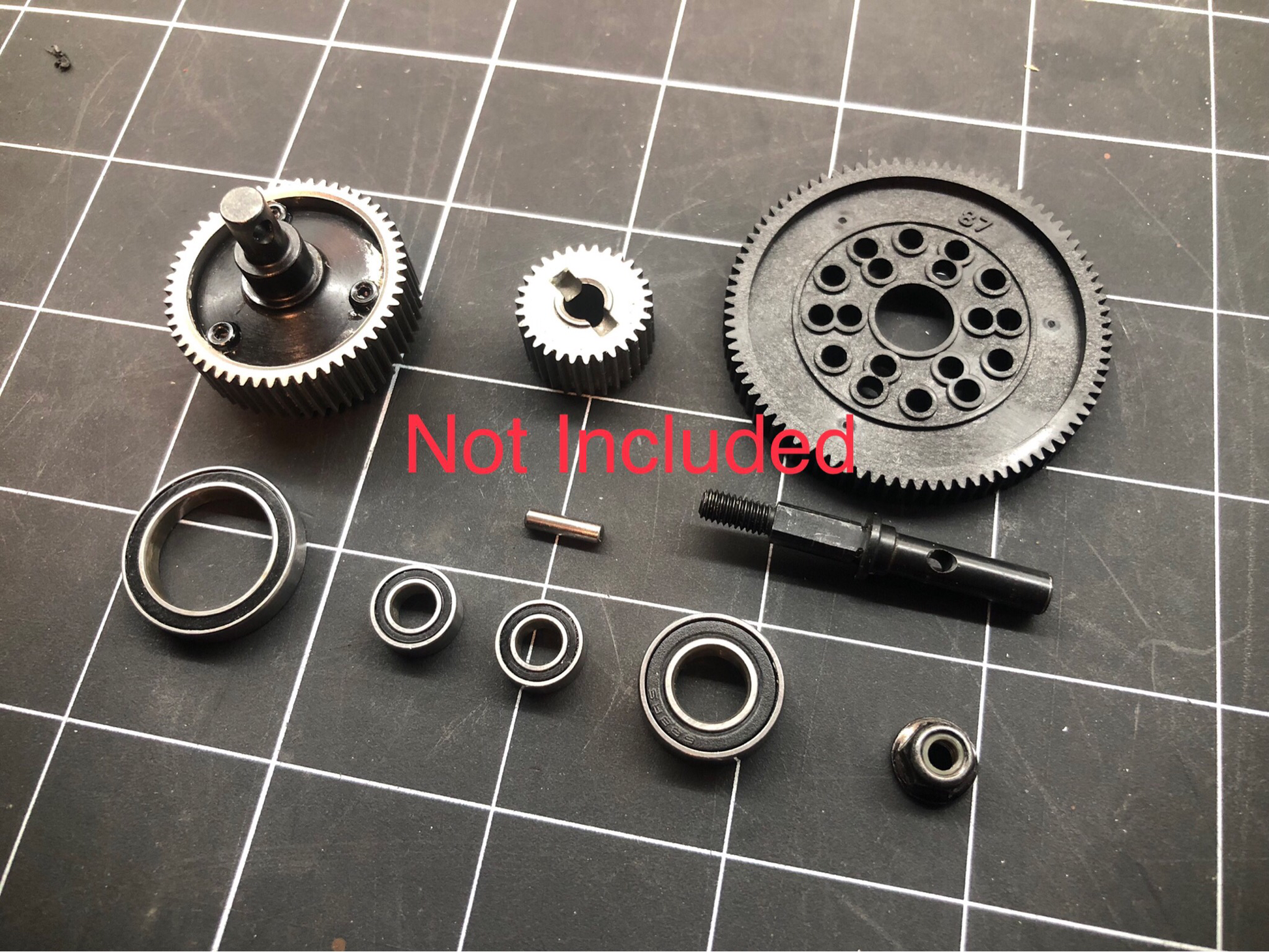

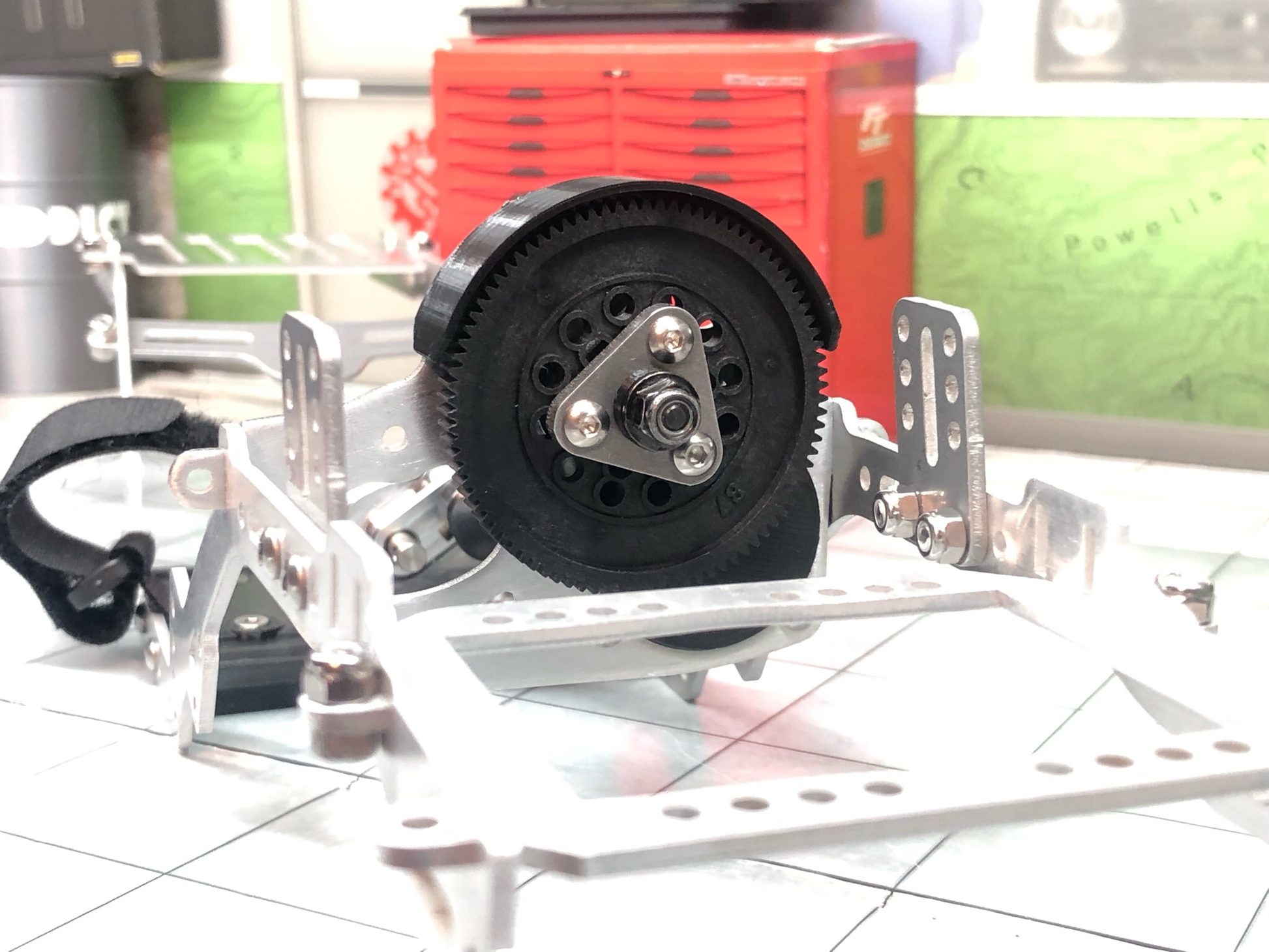

Optional Forward motor mount/gear reduction: We provide you with the Motor Plate, Spur Plate, Hardware, and Housing. You must source the follow parts from an Axial Capra Transmission and a 87T Axial Spur Gear (AX30672) or similar. Axial Parts: Bearings (8x16x5mm (AXA1225), 15x21x4mm (AXA1243), 2 - 5x10x4mm (AXA1218), Pin M2.5x10mm (AXI236171), Top Shaft (AXI232013), Gears (AXI232012 & AXI232012), Outputs (AXI232014 & AXI232014), 3 - M2x6mm, M4 Nylock Nut (AX31250)
Drive Ratio
13.1 : 1 - 12T Pinion, 87T Spur**
12.0 : 1 - 13T Pinion, 87T Spur**
11.2 : 1 - 14T Pinion, 87T Spur
10.4 : 1 - 15T Pinion, 87T Spur
9.7 : 1 - 16T Pinion, 87T Spur
**Not Achievable with Some Motors
Due to the nature of 3D printing, items may contain tiny visual blemishes. Items may require some trimming and painting for optimal visual appeal/fit; similar to what you would expect to do with model parts.
IMPORTANT: Do not use power drivers on 3D printed parts. Over tightening printed parts and cause premature cracking and crushing. Always ensure you hardware will not bottom out in the screw pocket. This can also cause at 3D printed part to break prematurely.
Printed Parts - These parts will be printed in Black (Unless otherwise requested) using advances slicing methods for maximum strength. All 3D printed parts come with a lifetime replacement guarantee. If you break a part, simply send us a photo and your order number. The photo is simply to evaluate for common issues and help identify potential improvements to existing designs.
Contact us @ Sales@spare-timehobbies.com or PM us @ Spare-Time Hobbies on Face Book.
