Don’t forget to add the chassis to your order.
Parts are printed on order and will ship in 1-10 days depending on order volume.
STL's available for self printing - https://sth.ecwid.com/STL-File-V1W-Victor-1-Whisky-p162096569

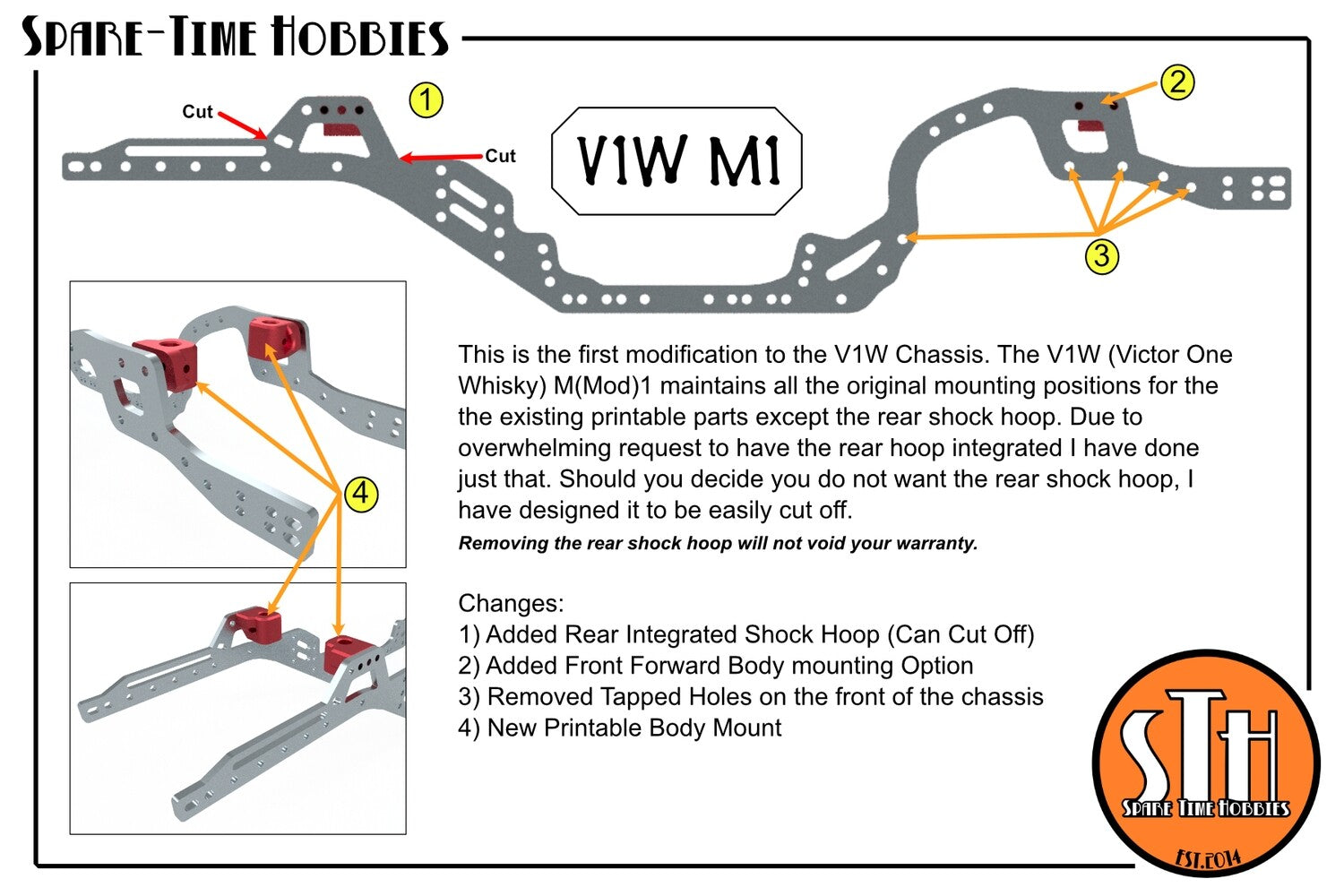

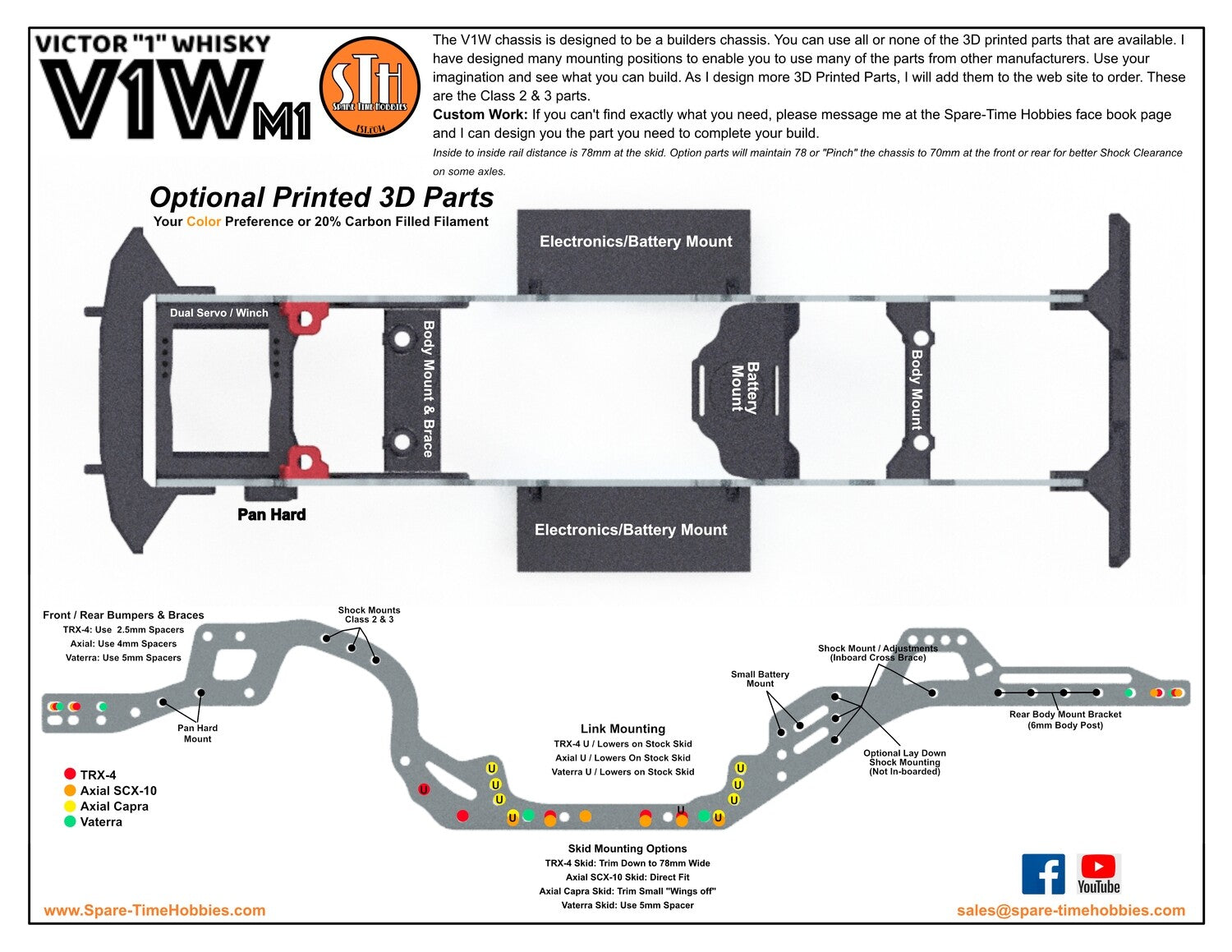

There are currently parts designed for 2 inside chassis rail widths: 70 and 78mm wide. The chassis is designed to be widest at the skid (78-80mm) and either 70 or 78mm in the front/rear as desired. When altering widths (Pinch), make sure you select the appropriate part labeled with a 70 or 78mm to ensure compatibility. Part without a width designation will work with either width.
Traxxas TRX4 (SPORT or Two Speed) - Front Comp Bumper 78mm, Front Dual Servo Mount (78mm), Pan-Hard Mount Set, Front Chassis Brace w 6mm Body Post hole 70mm, Rear Low Battery Mount (78), Rear Inboard Shock Mount (78mm), Rear Body Mount Brace (78mm), Rear Comp Bumper (78mm), Side Plates (Electronics/Battery)

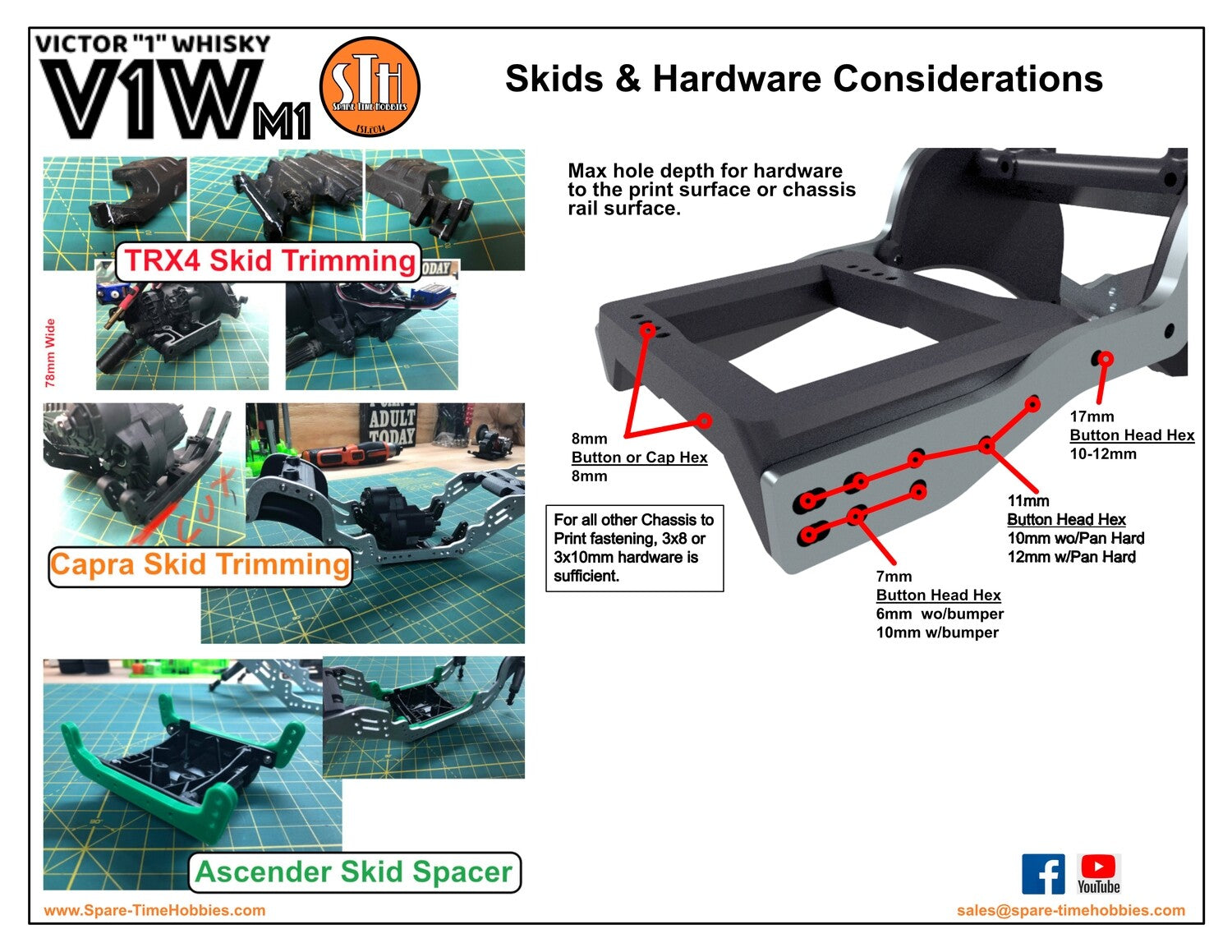

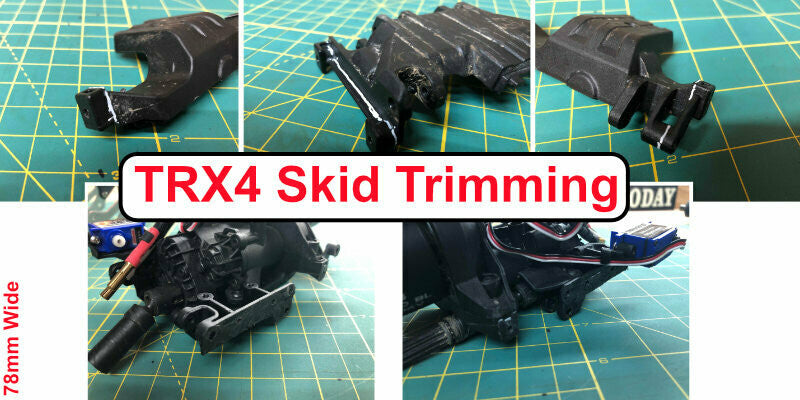

Use Stock Parts: Links All, Shocks, Skid (Trimmed Per Guide), Body Posts (Front and Rear)
Fabricate or Find: Various Hardware, Body
______________________
THIS CHASSIS IS NOT A DIRECT BOLT ON FOR ANY PARTICULAR KIT.
This is a builders chassis, expect to fabricate parts, adjust/make links, or trim parts to achieve the desired build.

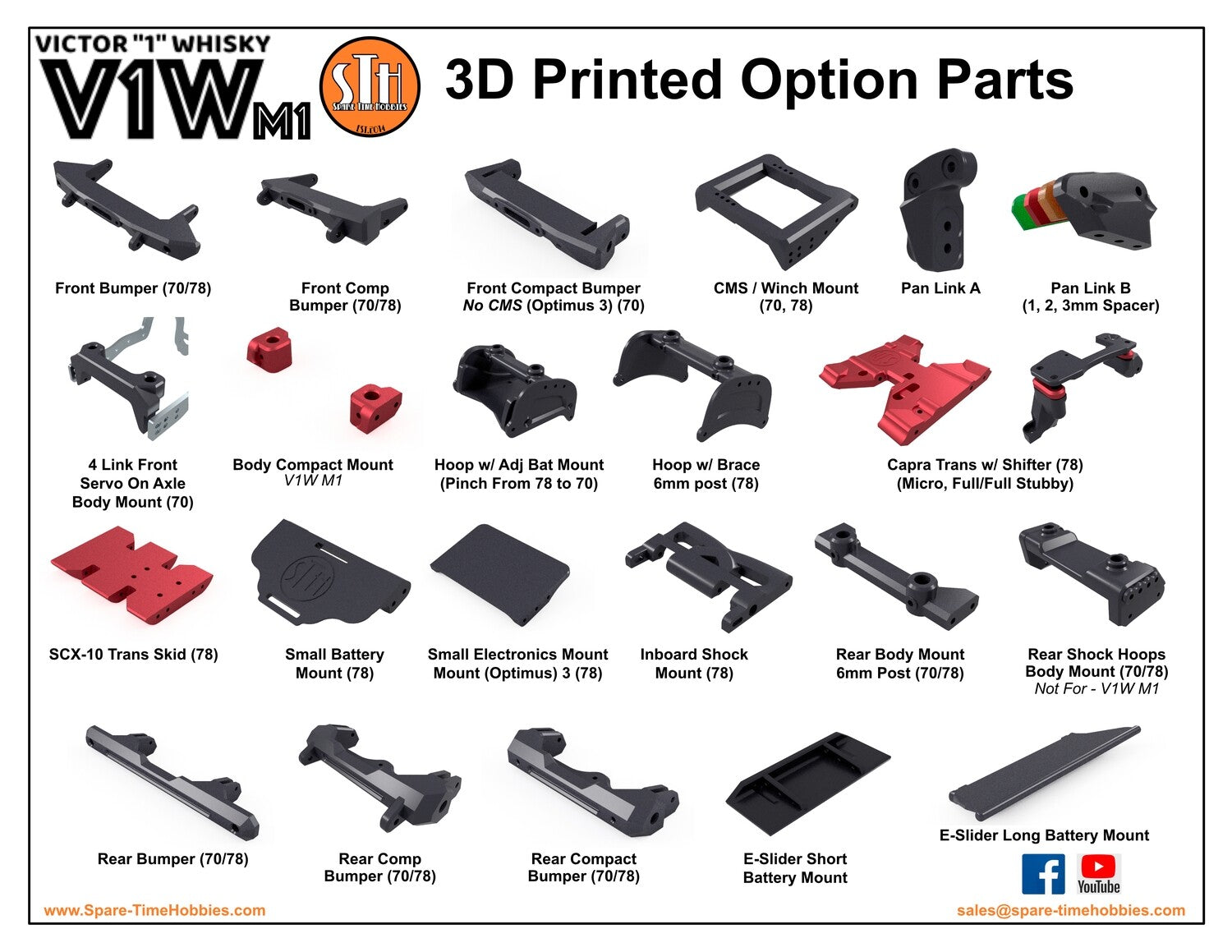

Printed Parts
Additional options will become available as the designs are completed and tested.
Printed Parts - These parts will be printed in Black using advances slicing methods for maximum strength. All 3D printed parts come with a lifetime replacement guarantee. If you break a part, simply send us a photo and your order number. The photo is simply to evaluate for common issues and help identify potential improvements to existing designs.
Sales@spare-timehobbies.com or PM us @ Spare-Time Hobbies Face Book Page.
