179 SMART Micro Servo Winch

Sale price $89.99 Regular price $167.77

Shipping calculated at checkout.

SEHREEFS129

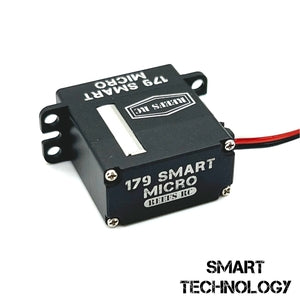

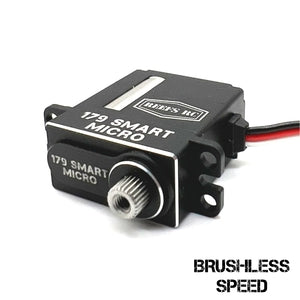

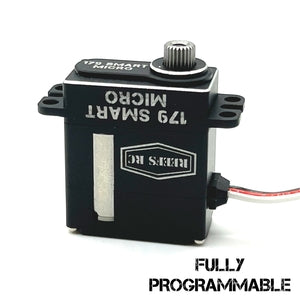

179 SMART Micro Servo Winch

With up to 179 oz of torque, this brushless micro servo packs one heck of a punch. It's smart too, which allows you to program this servo for either standard servo or winch duty with our optional programmer.

Features:

  • High Torque High Speed
  • Brushless Servo / Winch Fully Programmable, REEFS LINK required for Programming
  • Magnetic Angle Sensor
  • Pulse Width Modulation Control
  • Temperature Rating: -15C ~ +70C

Specifications:

  • Voltage 6-8.4V/ Internal: Metal & Steel Gears
  • CNC Aluminum Casing; Metal & Steel Gears; Bearing Type: 2BB
  • Unload Current: 150/180/240/300mA @ 4.8V/6.0V/7.4V/8.4V; Load Current:1.6/2.0/2.2/2.4A @ 4.8V/6.0V/7.4V/8.4V

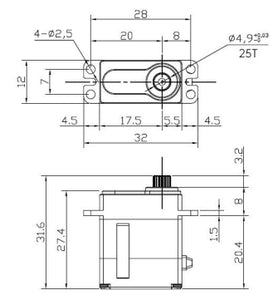

  • Dimension: (LWH)Weight: .90 x .47 x 1.08 in/23 x 12 x 27.5 mm .74oz / 21g
  • Torque: 135 oz-in@ 6.0V / 159 oz-in@ 7.4V / 179 oz-in@ 8.4V
  • Speed:.09 sec @ 6.0V / .07 sec @ 7.4V / .06 sec @ 8.4V
