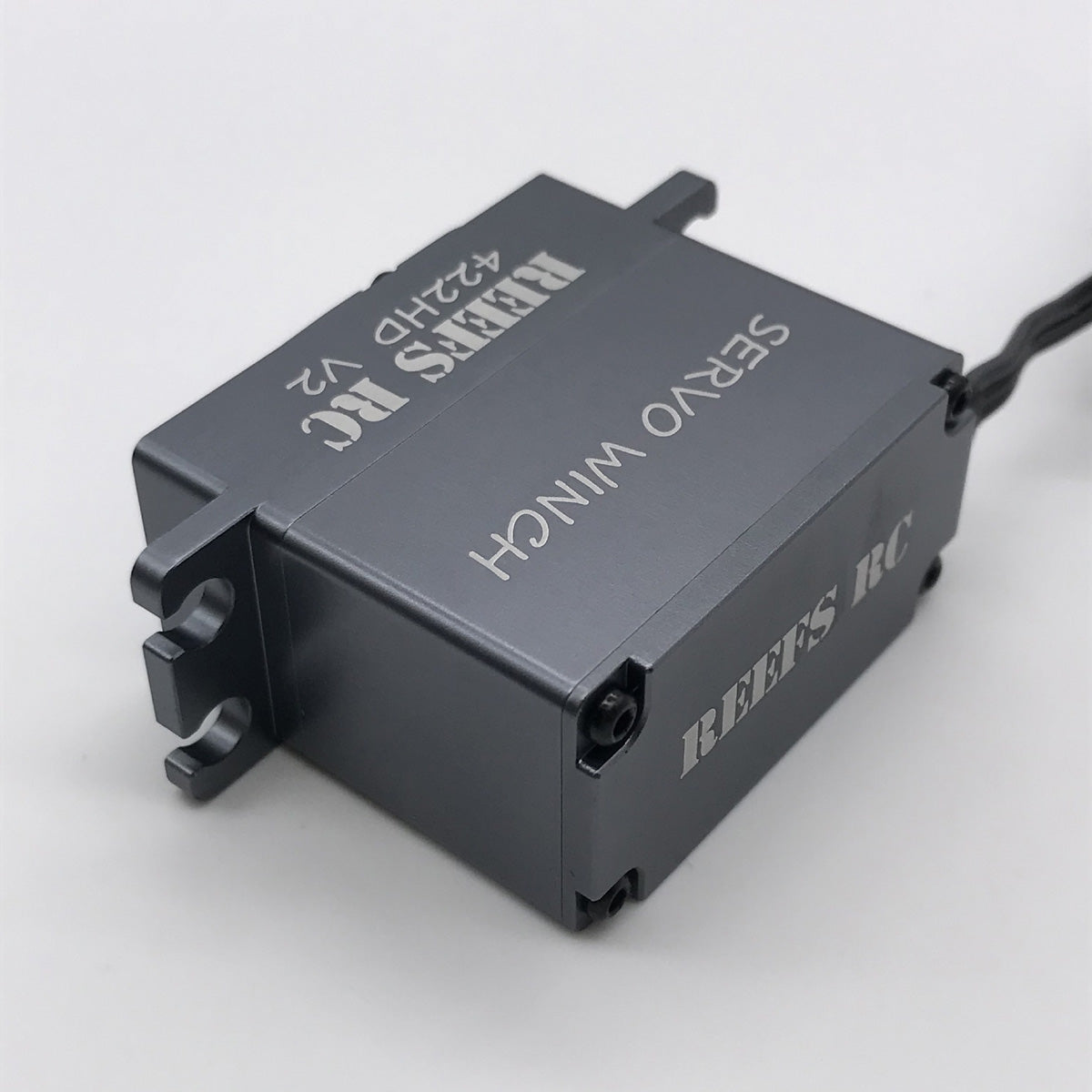

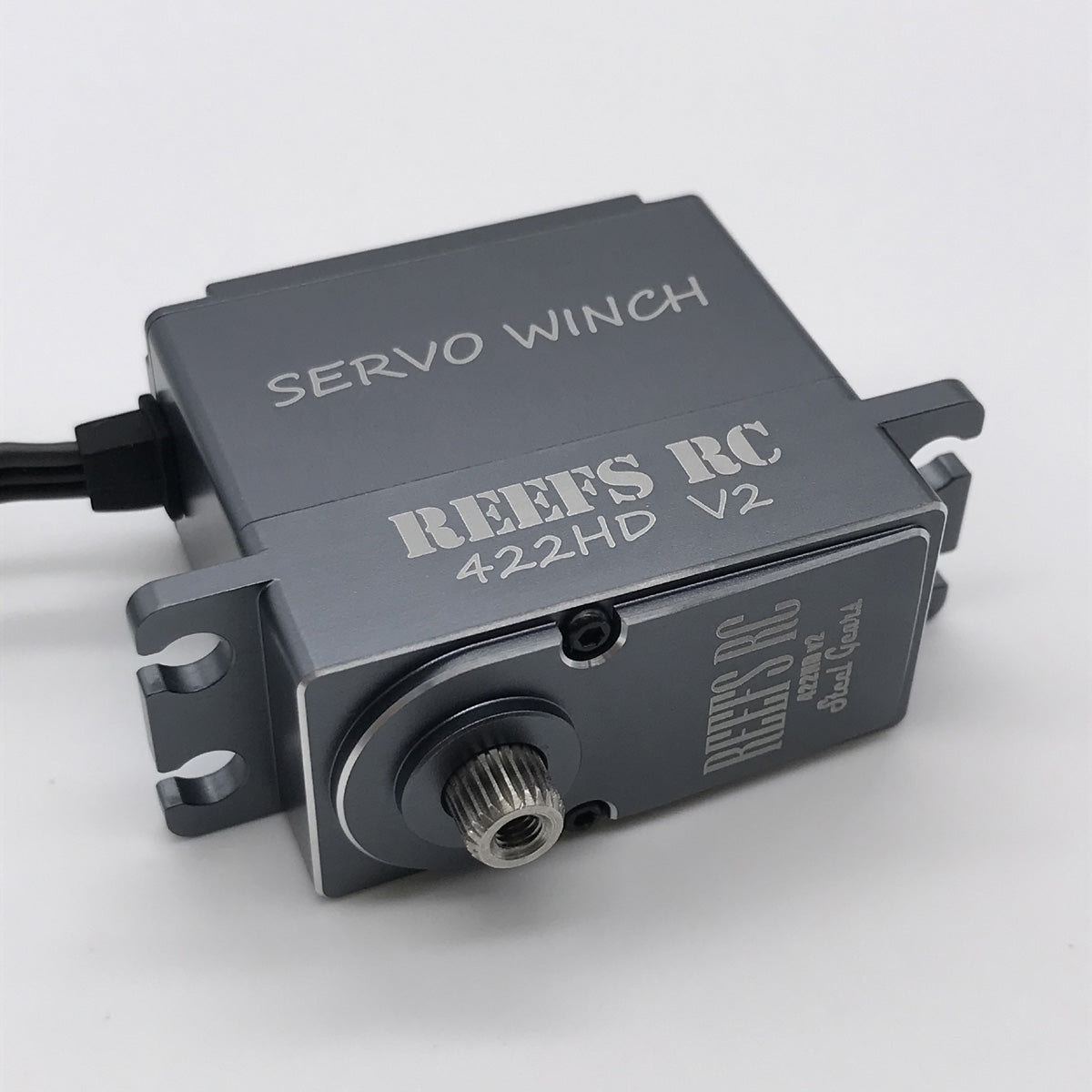

422HDv2 Servo Winch w/ Built In Controller

SEHREEFS43

422HDv2 Servo Winch w/ Built In Controller

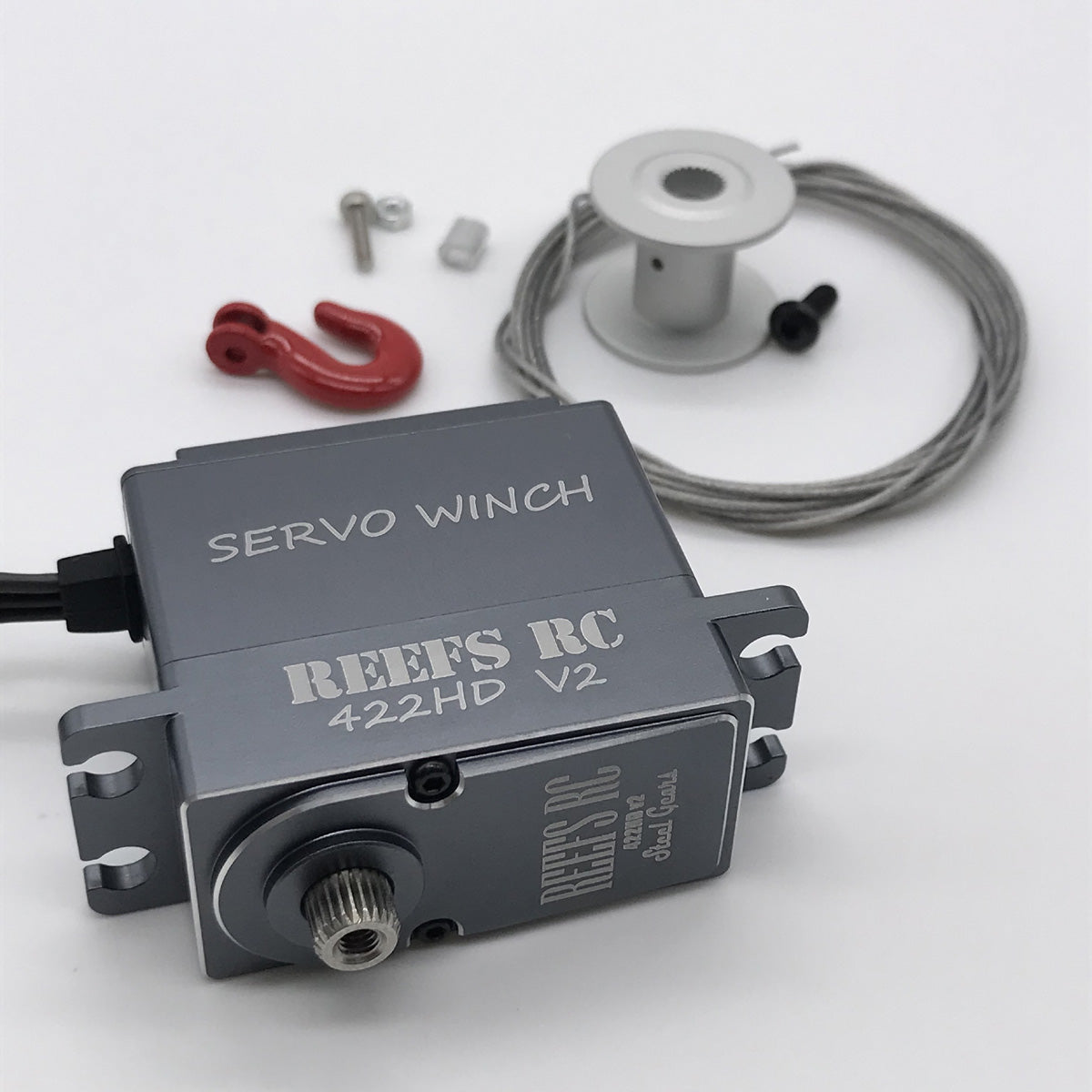

Contained in an aluminum servo case is a powerful winch and integrated controller for simple and convenient operation from a 3rd channel. In fact, it drops into the Element chassis (as well as many other 1/10 crawlers) and is easily controlled by the standard third channel on the Element RTR transmitter.

High Torque Digital Coreless Servo Winch with Built-In, Pre-Programmed Winch Controller:

• "Submarine Waterproof"
• Operating Voltage: 4.8V-8.4V
• 7075 Aluminum CNC-Machined Spool w/Clear Finish
• 7' Silicone Coated Steel Braided Line, w/Scale Recovery Hook
• Internal Steel Gears
• All CNC Aluminum Casing
• Anodized Color: REEFS GRAY
• Bearing Type: 2BB
• Weight: 2.84oz
• Dimension: 1.57" x .79" x 1.5" (LxWxH)
• Torque: 405oz @ 6.0v / 450oz @ 7.4v / 480oz @ 8.4v
• Speed: .11sec @ 6.0v / .10sec @ 7.4v / .09sec @ 8.4v
• Spline: 25T
• BEC: Not Required

WARRANTY:
Returns / Exchanges - Purchases made directly
from REEF’S RC may be returned/exchanged
within 30 days of purchase, product must be
unopened from its original packaging. If factory
seal is broken, no return or exchange. One year
MFG warranty on purchases through an
Authorized Dealer. Bearings not covered under
warranty, nor is subsequent damage caused to the
motor by bearing failure. Bearings are considered
a normal wear and tear item, and should be
maintained / changed periodically. Warranty does
not apply to improperly installed, handled, abused,
or impact related damage. Any unit which has
been repaired or modified will not be covered
under the warranty.
