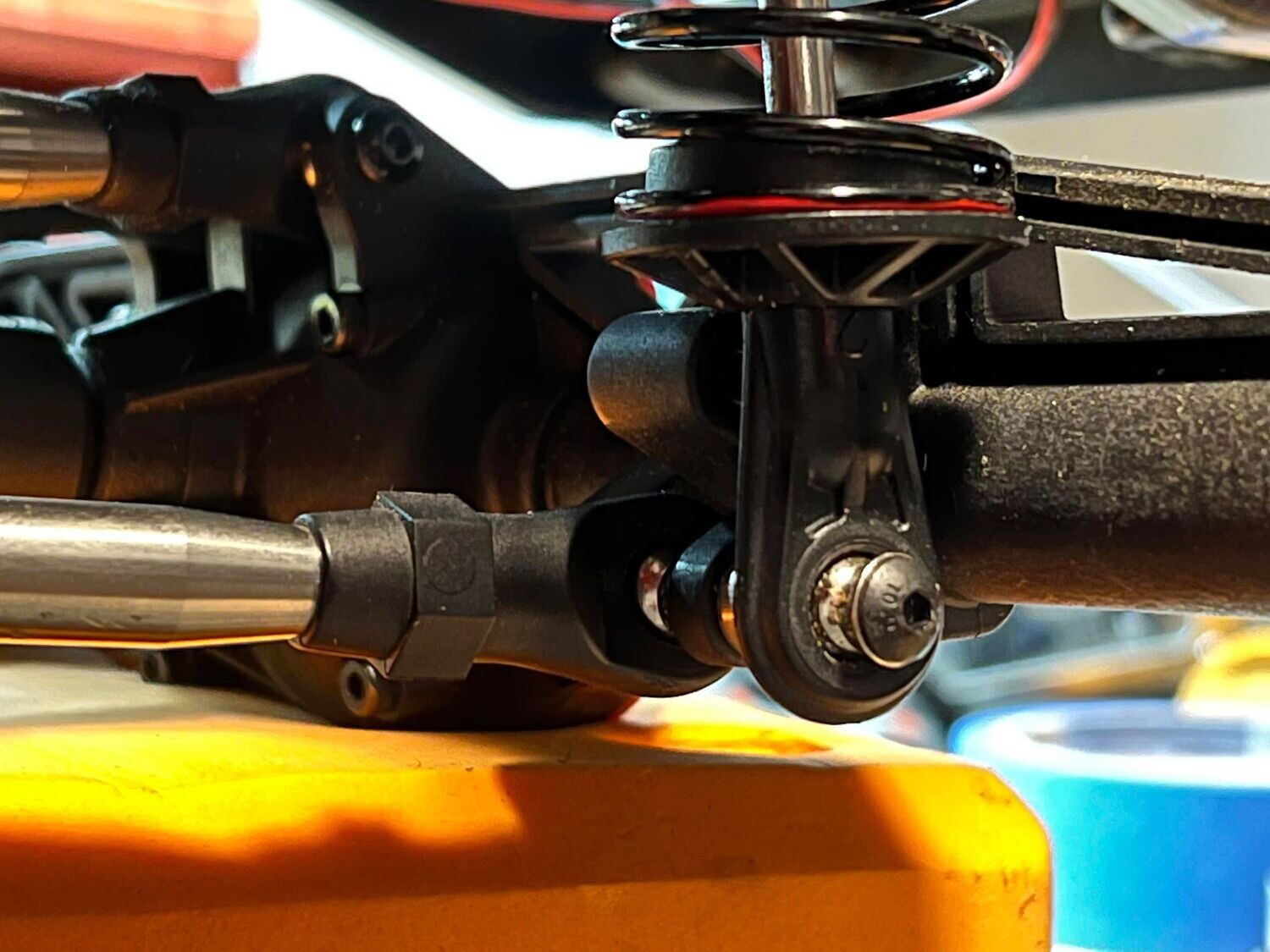

This is a simple kit that allows you to relocate your shocks to your lower link mounting holes. This will give you an effective droop of about 12mm. By drooping your rig, you will gain some lateral stability. Due to the weight of the rig, we have included some flexible bump stops for tuning to help prevent damage to your rig.
What you get:

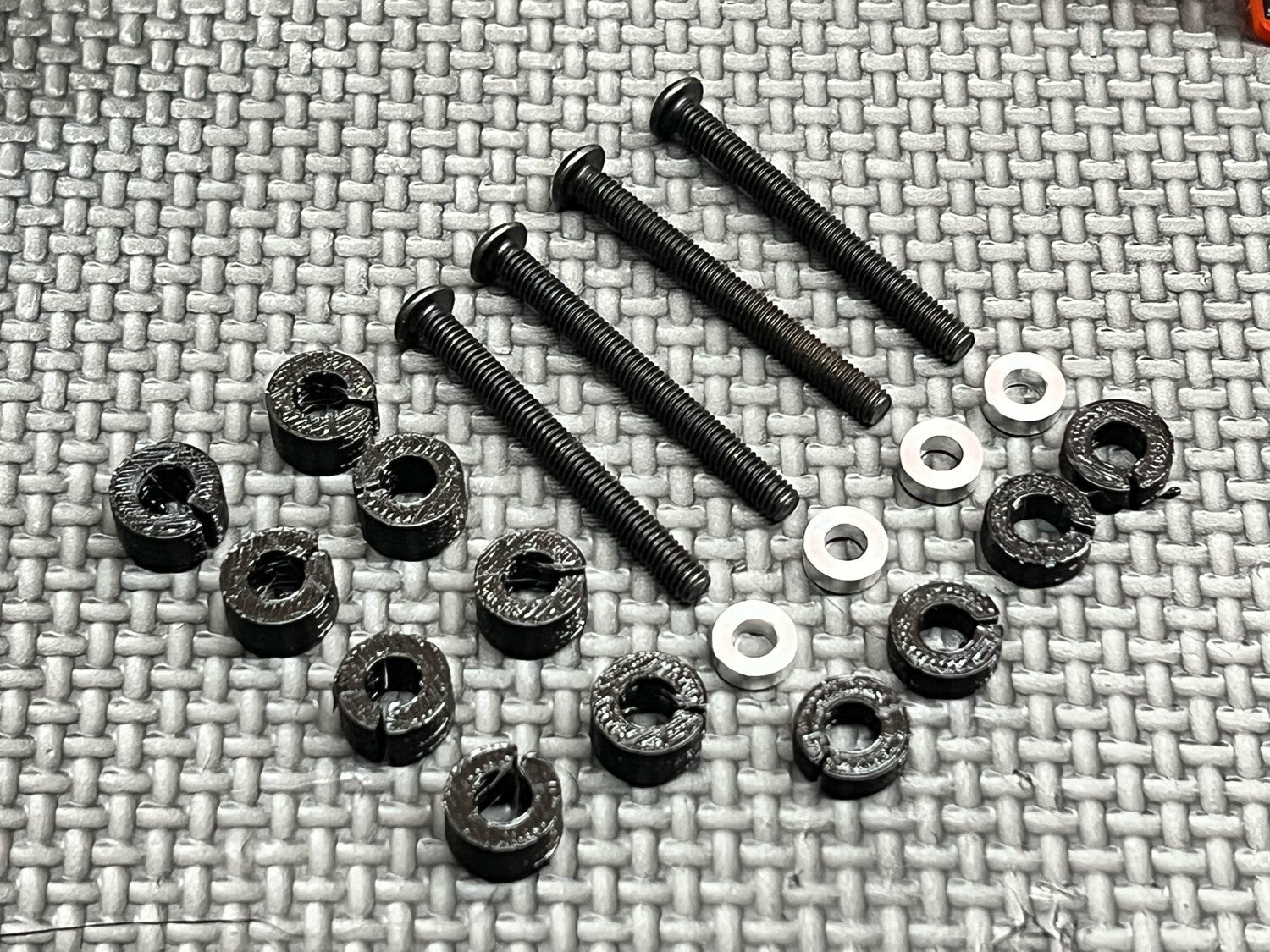

4 - m4x40 BHS, 4 - m4x3 Spacers, 4 - Spring Cup Risers, 8 - 6mm Thick Bump Stops
To Install:

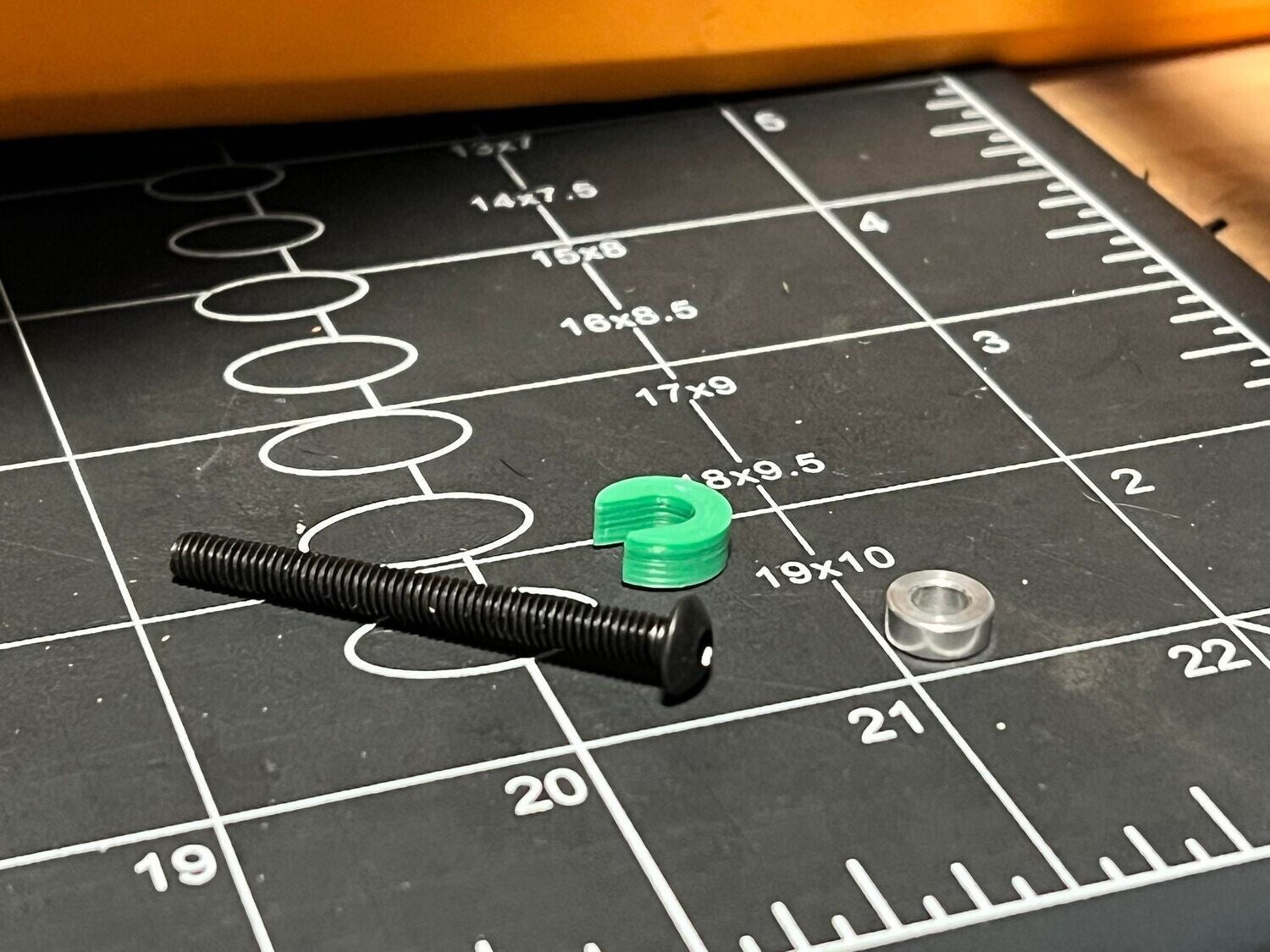

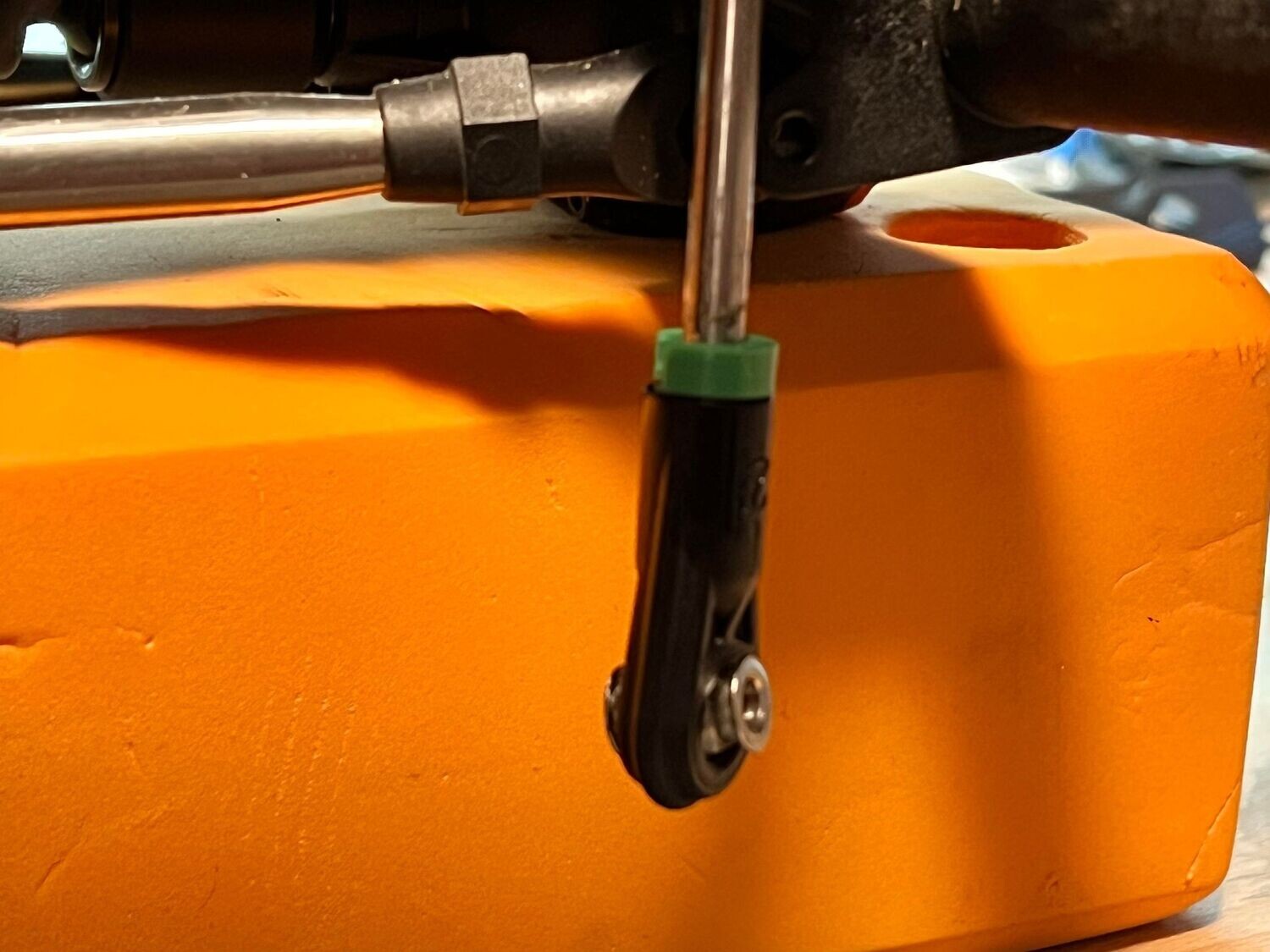

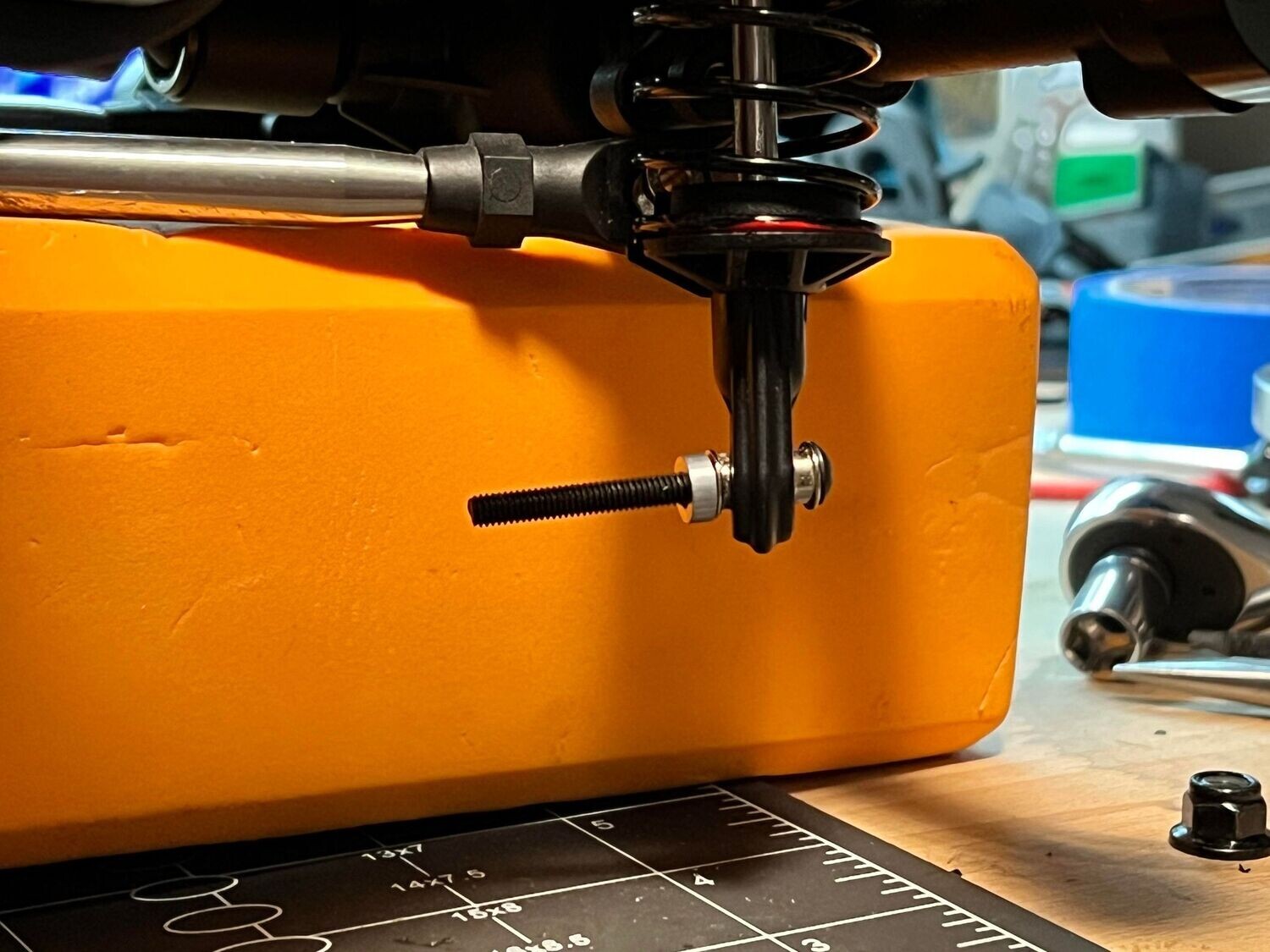

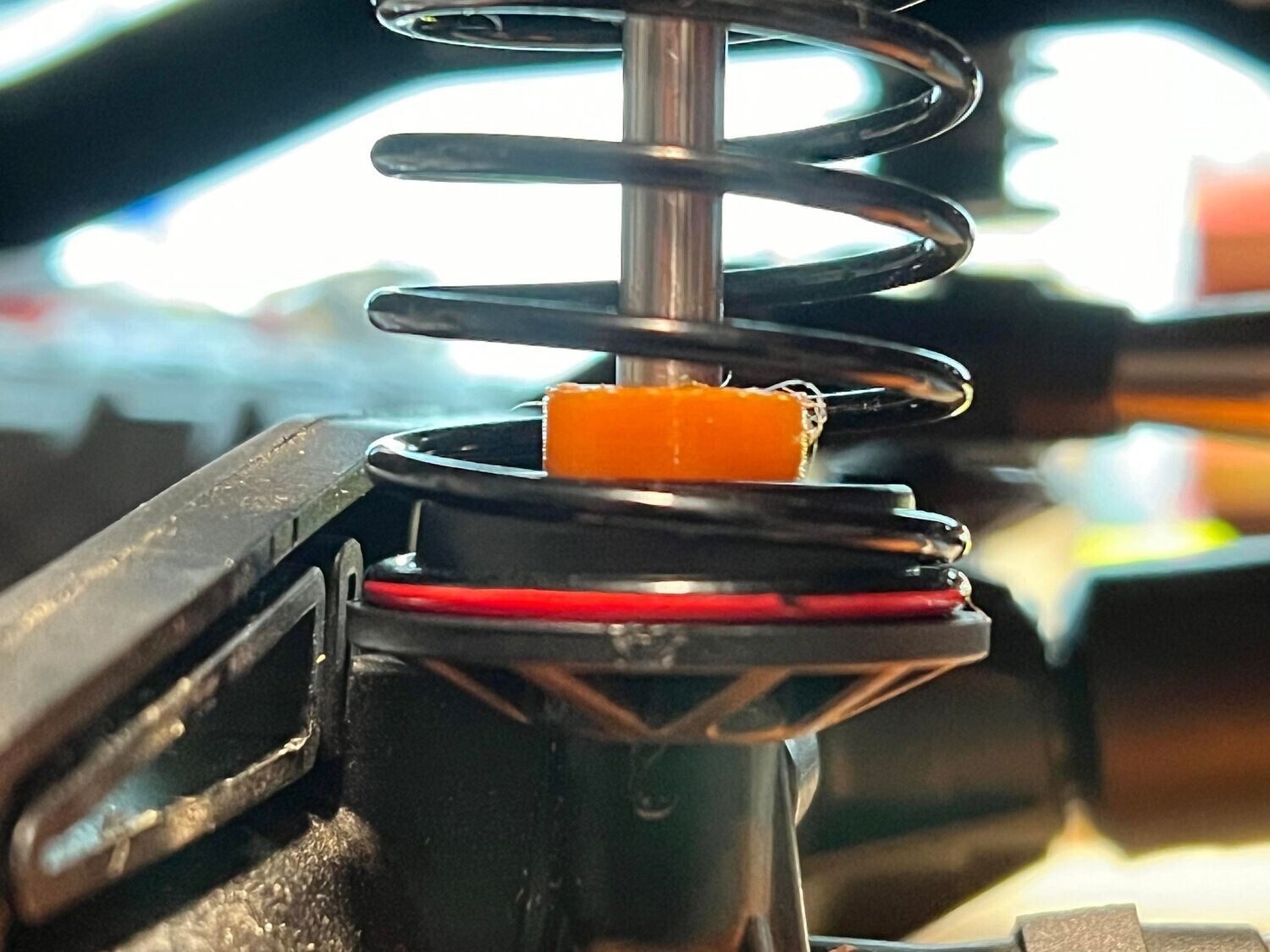

1) Remove your Shock from the upper Position and the bolt for the lower link mount 2) Lift your spring cup and slip on the "C" Shaped Spacer on the Shock Shaft 3) Using the 40mm Bolt and 3mm aluminum spacer Securing the shock to the lower link mount in this order - Shock - Spacer - Mount - Lower Link - Mount 4) Check your schock travle for binding or links coliding 5) Add Bumps stops or adjust shocks on the tower as needed to prevent the links from bottoming out on the chassis
\\\ CAUTION ///
The front shocks will not fully compress without the Pan-hard bar bottoming out on the chassis. You should use the bump stops or a lower moutning hole on the shock tower to perevent the panhard link from coliding. Failing to adjust the shock or use bump stops can cause damage to your rig.
