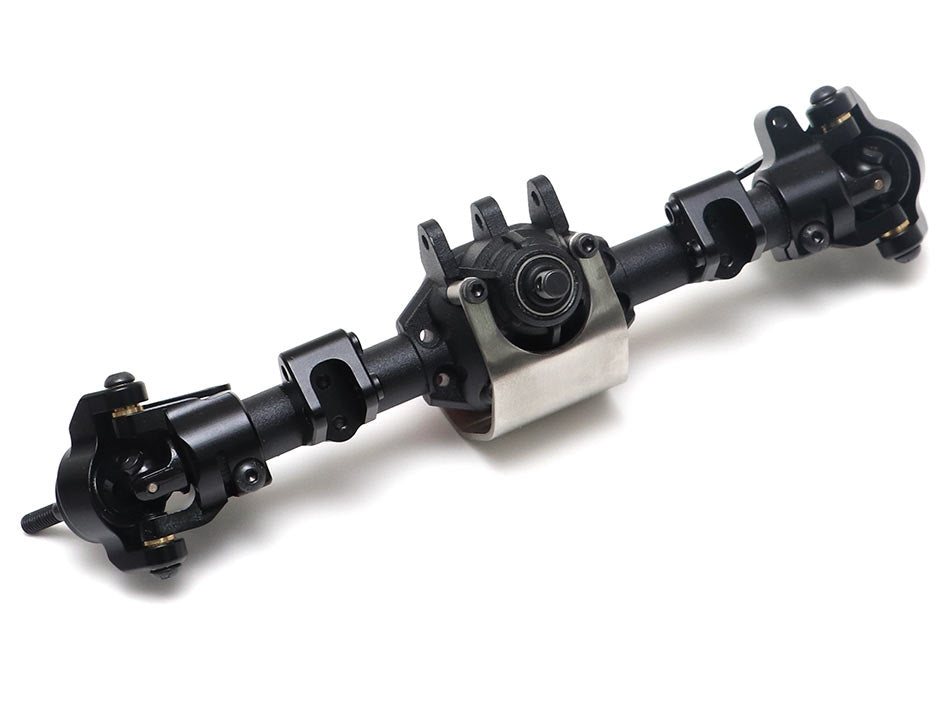

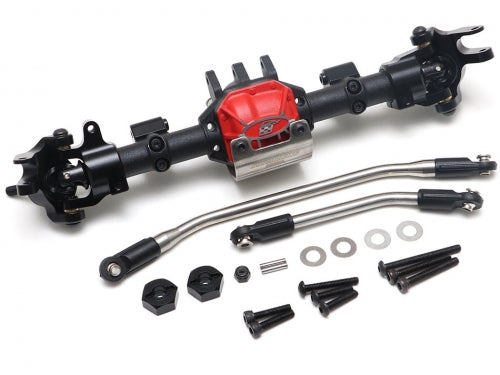

Boom Racing Complete Front Assembled AR44 PHAT™ Axle w/ BADASS Universal Shafts [RECON G6 The Fix Certified] for Axial SCX10 II

PRODUCT INFORMATION:

• Want the ultimate scale performance axles? Look no further than Boom Racing's Front AR44 PHAT Axle. This special edition axle is factory installed by Boom Racing.

  Be warned. This PHAT axle is heavy. The most desirable thing for an axle is the weight and how it helps increase overall performance for a crawler.

  The AR44 PHAT axles are also smooth and durable. The gears are heavy-duty hardened steel (30/8T) with keyed spool for durability and strength. The BADASS universal driveshafts are made of high-strength alloy steel for durability.

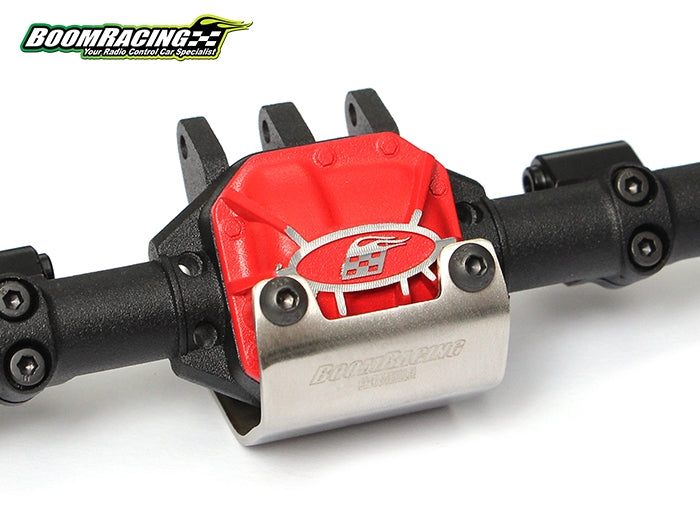

  This AR44 PHAT Axle comes with a stainless steel skid plate to protect the axle housing and helps to slide over rocks.

  Optional Front Brake Disc Set #BR955035F and Brass Knuckle Base Weight Set #BRLC7089 are available.

  Specifications:
  • Total Length: 215mm (8.46")
  • Hole to Hole: 183mm (7.2")
  • Weight: 333grams
  • Input pinion shaft: 5mm

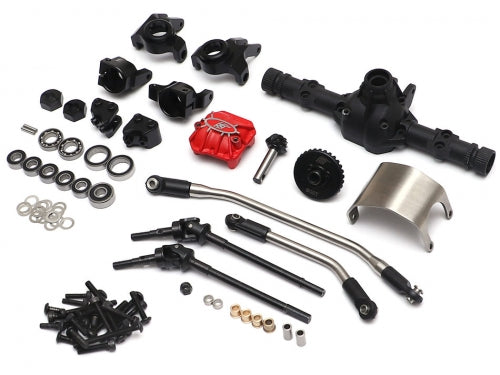

  Includes:
  • AR44 PHAT Axle Housing
  • AR44 PHAT Diff Cover With Stainless Steel ARMOUR Skid Plate
  • High pinion axle setup for better clearance
  • Heavy Duty Keyed Helical Bevel Gear and Input Shaft
  • Heavy Duty Keyed Spool
  • BADASS™ Heavy Duty Hard Steel Universal Shafts
  • High Steer Aluminum Knuckles & C-Hubs - Over 45 Degree
  • Special anodize finish on Knuckles and C-Hubs
  • Special anodize finishing on aluminum Lower Link Mounts
  • Aluminum 12mm wheel hex
  • High Steer Stainless Steel Steering Tie Rod & Drag Links M4 Threads
  • Stainless Steel Pivot Ball
  • High Quality Angled M4 Nylon Ballends
  • Full Ball Bearings
  • Shims
  • Hardware

  This product comes with Boom Racing's industry leading warranty service.

  Note: Before you run the axles, here are a few tips:

  1. Make sure there is plenty of grease in the diff (enough to cover the gears)
  2. Shim the axles (if need be) with the included shims. Spin them to make sure the drivetrain is smooth
  3. Fasten all screws securely.

  The drag link will fit Axle Mounted Servo conversion. Use the original stock drag link if you run SCX10 II chassis mounted servo setup.

  Replacement parts:
  • AR44 PHAT™ Axle Housing W/ ARMOUR™ Skid Plate #BR955015
  • BADASS Ultra Hard Steel Axle Universal Driveshaft (2pcs) #BRBD955001
  • PHAT™ Axle Diff Cover W/ ARMOUR™ Skid Plate
  • AR44 Wide Angle Steering Knuckle & C-Hub Carrier Set
  • Aluminum AR44 Link Mounts for SCX10 II (2) Black
  • Heavy Duty Keyed Bevel Helical Gear 30/8T + Differential Locker Spool Set For AR44 Axle
  • Stainless Steel Wide Angle Steering Link Set for Axle Mounted Servo
  • Brass Bushings for AR44 & BRX70 Axle knuckle

  Optional Parts:

  • BRX70/BRX90 Alum Front Knuckles #BRLC7002 (for Front Brake Disc Set #BRLC7081F and Brass Front Base Weights #BRLC7089)
  • Brass Front Brake Disc Complete Set for AR44 Axles #BR955035F
  • Brass Front Knuckle Base Weights for BRX70/BRX90 PHAT Axle (2) #BRLC7089 (requires BRLC7002 or BRLC7002/CA) (not for brass calipers)
• Package total weight: 400.00 grams (incl. packaging)
• Package size: 10.00 x 25.00 x 9.00cm
• Factory description: Boom Racing Axial SCX10 II Complete Assembled AR44 PHAT™ Axle with Internals (Front)
• Manufactured by Boom Racing
• Manufacturer number: BR955022
