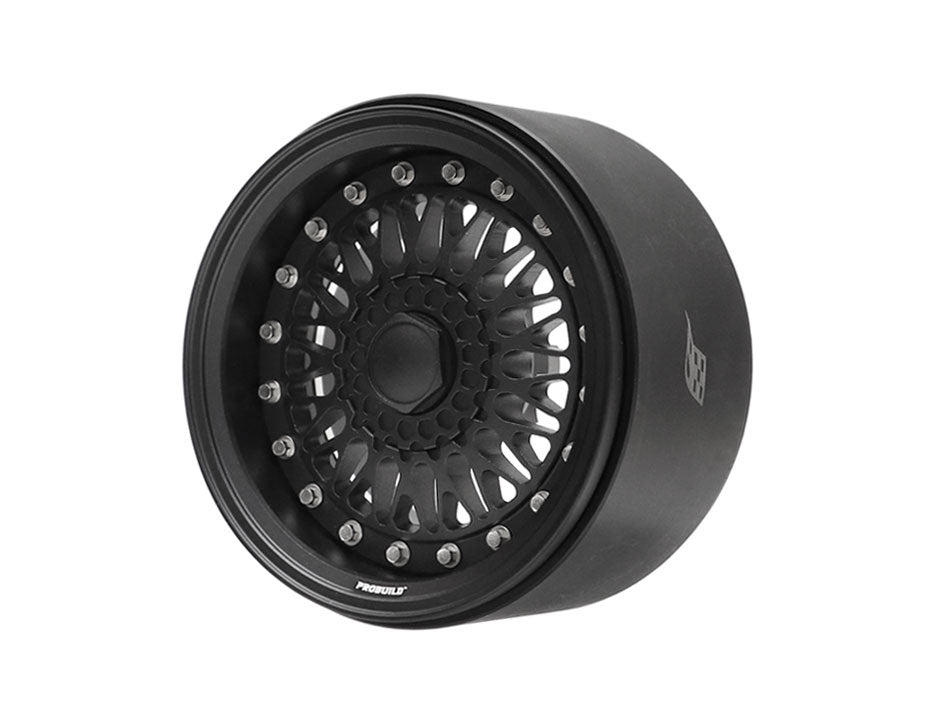

Boom Racing ProBuild™ 2.2" R01 Mesh Adjustable Offset Aluminum Beadlock Wheels (2) Matte Black/Matte Black

PRODUCT INFORMATION:

• Watch a video introduction about this product
• This is ProBuild 2.2" R01 Mesh Adjustable Offset Aluminum Beadlock Wheels (2). The Boom Racing ProBuild wheels use a patented design for quick and easy installation and setup.

  Wheel Combination:

  • Size: 2.2"
  • Width: Standard
  • Barrel Color: Matte Black
  • Barrel Material: Aluminum
  • Center Ring Material: Delrin
  • Faceplate Style: R01 Mesh
  • Faceplate Color: Matte Black
  • Faceplate Material: Aluminum
  • Outer hardware: Cap Head 12.9
  • Bolt Pattern: 6-Lug
  • Hub: XT604V2 (4mm Offset)
  • Hub Hardware: Cap Head 12.9

  Build your wheels exactly the way you want with Boom Racing's all-new ProBuild Wheels.
  The idea behind PROBUILD was to find a way to make a fully customizable and adjustable wheel with multiple setup options. Today, that sounds really smart, but back when we started most people thought we were crazy. That’s alright, everything has its time!

  Quality off-road wheels are not always affordable. Most of us save our money to get a nice set. Deciding on the right set of wheels can end up being a scary and expensive learning lesson. Our proprietary customizable design completely removes any fear of getting another set of wheels that are “almost right”. We took into consideration all of the desirable wheel features - style, color, offset, material, total width, weight, hub size, hardware styling, etc., and provide the options to adjust the wheel to the way you like.

  What makes PROBUILD probuild?
  • High changeability, unlimited possibilities
  • Built-in offset options
  • Revolutionary and cutting-edge designs
  • Engineered to the exact specifications of world-class drivers

  With unlimited combinations of colors, faceplates, multiple offset options, etc, ProBuild wheels is a game-changing design for how we build and match custom rigs. No longer are we stuck with a full set of wheels that remain the same for too long.

  Specification:
  • Diameter: 2.2"
  • Width: 36.5mm (1.437")
  • Inner Wheel Clearance: 52.5mm (2.067")
  • Weight:
    • 93 grams per wheel (fully assembled)
    • 81 grams per wheel (without hub and hardware)

  What's Included?
  • 2x Alum 13.5mm Barrel #BRPROB22-01
  • 2x Alum 23mm Barrel #BRPROB22-02
  • 2x Alum 29.5mm Beadlock Center Piece #BRPROB22-03BK
  • 2x Alum Faceplate
  • 2x XT604V2 Alum Wheel Hub Adapter #BRXT604V2
  • 20x M2x8mm 12.9 Grade Socket Cap Screw for wheel #BRPROB-07BK
  • 12x M2.5x8mm 12.9 Grade Socket Cap Screw for hub #BRPROB-08
  • 6x M2x14 12.9 Grade Socket Cap Pilot Screw
  • 2x M4 Nyloc Nut
  • 2x M5 Nyloc Nut
  • 1x 7m to 8mm (Thin-Walled) Nut Driver Adapter #BRT10056
  • 1x Decal Sheet

  Fits:

  • 2.2" Crawler Tires
  • XT6 V2 hubs fit M4 and M5 locknuts (fits 7mm and 8mm wrenches with diameters smaller than 10.8mm)

  Optional Wheel Hub Adapter Sizes:
  • XT6015PINV2 - 1.5mm Pin Alum Offset #BRXT6015PINV2
  • XT601V2 - 1mm Alum Offset #BRXT601V2
  • XT604V2 - 4mm Alum Offset #BRXT604V2 (Included)
  • XT606V2 - 6mm Alum Offset #BRXT606V2
  • XT608V2 - 8mm Alum Offset #BRXT608V2
  • XT612V2 - 12mm Alum Offset #BRXT612V2
  • XT616V2 - 16mm Alum Offset #BRXT616V2

  Optional Hex:

  • VT8 12mm Alum Hex for wheel shafts using 6mm Shaft (at wheel pin) and 5mm (threads) #BRT10054

  7mm to 8mm (Thin-Walled) Nut Driver Adapter #BRT10056

  This is a hardened steel 7mm to 8mm socket nut wrench adapter. Eliminate the need for an 8mm socket nut wrench. This thin-walled 8mm (10.5mm) wrench adapter fits the Boom Racing XT6 V2 hubs. Use this if your vehicle uses M5 locknuts for the drive shafts. Features a center hole for better torquing.

  Build your beadlock wheels exactly the way you want like a Pro!
• Package total weight: 275.00 grams (incl. packaging)
• Package size: 10.00 x 20.00 x 6.00cm
• Factory description: Boom Racing ProBuild™ 2.2" BRS Adjustable Offset Aluminum Beadlock Wheels (2) Matte Black/Matte Black
• Manufactured by Boom Racing
• Manufacturer number: BRPB2206MBKMBK
