BowHouse RC: High Clearance Skid Extension for Traxxas TRX-4 High Trail or lift kit

This part only works with the updated version of our popular N2R High Clearance Skid for the Traxxas TRX-4.

We have gained 4mm of additional ground clearance compared to the stock skid in critical areas, and we have created smoother surfaces with better angles for sliding over roots and rocks with ease.  V2 is printed in ultra strong, ultra high resolution nylon.

You will need to purchase the Skid and this part to fit with the High Trail edition trucks or any trx-4 that have had the Traxxas lift kit installed.

This extension allows the factory length links to be used on the high trail.

This provides all the same improvements as the N2R skid.

Installation Instructions:

Loosen up the frame rails (likely you already have them off to change the skid.)

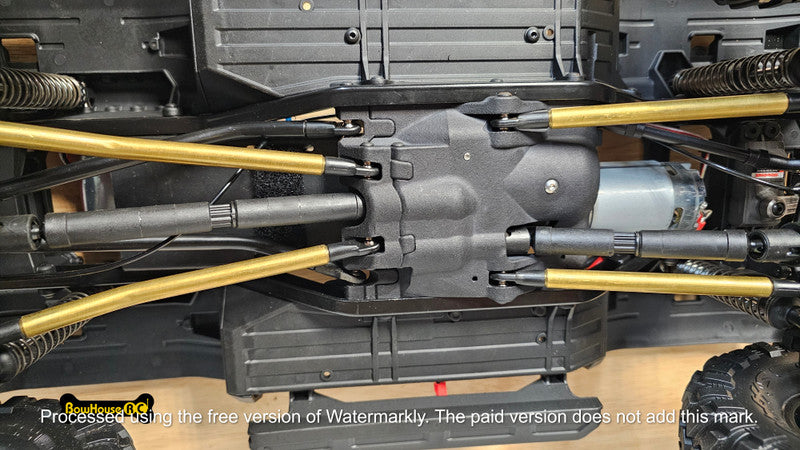

Be careful not to flex the extension piece too much, it is thin where it fits inside the skid and can snap if bent to much.  It gets its strength from the rest of the skid. Insert the extension into the N2R High Clearance skid at the rear (only 1 way it can go) reassemble frame rails and reinstall links.

Drive and Enjoy!
