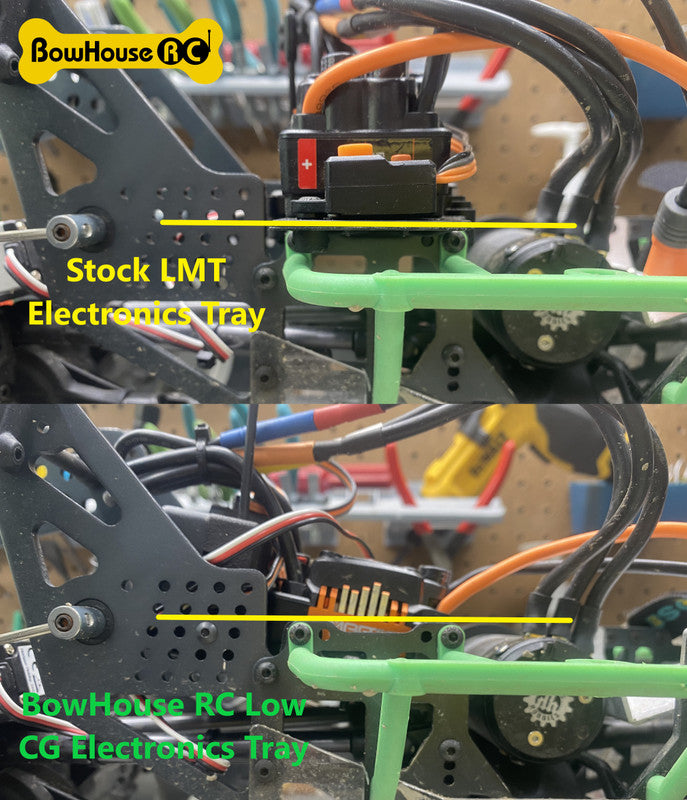

The BowHouse RC: Low CG Electronics Tray for Losi LMT is designed to provide a more stable and lower center of gravity (CG) for your Losi LMT, improving handling and performance on rough terrain. By relocating your electronics to a lower position, this tray enhances the overall balance of your vehicle, making it more responsive during aggressive turns and climbs.
Package Includes:
1x Low CG Electronics Tray
4x M3x12 mm Button Head Screws
2x M3x8 mm Button Head Screws
Installation Notes:
Remove stock components:
Detach 2x M3x14mm cap head screws securing the receiver box lid and save them.
Remove the M3 grub screw securing the antenna tube (optional to reinstall).
Remove M3x10mm screw securing the ESC on/off switch and 2x M3x14mm BHCS screws securing the ESC.
Disconnect and remove your ESC and receiver, and then remove the stock ESC tray (you may need to apply some pressure to release it).
Install your receiver in the receiver box portion of the BowHouse RC Low CG Electronics Tray, reconnect the wires, and reattach the receiver box lid using the saved M3x14mm cap head screws.
Install the ESC onto the BowHouse RC tray:
For stock Spektrum receivers, reuse the stock M3x14mm BHCS screws for the ESC, and the stock M3x10mm BHCS screw for the on/off switch.
For aftermarket ESCs, secure the ESC with double-stick tape or zip ties.
Secure the tray onto your chassis with the included M3x12mm BHCS screws, and attach the front of the tray with M3x8mm BHCS screws.
With this Low CG Electronics Tray, your Losi LMT will be ready to tackle any obstacle with improved stability and responsiveness. So, go ahead—upgrade your RC with BowHouse RC, and enjoy smoother, more controlled runs!
