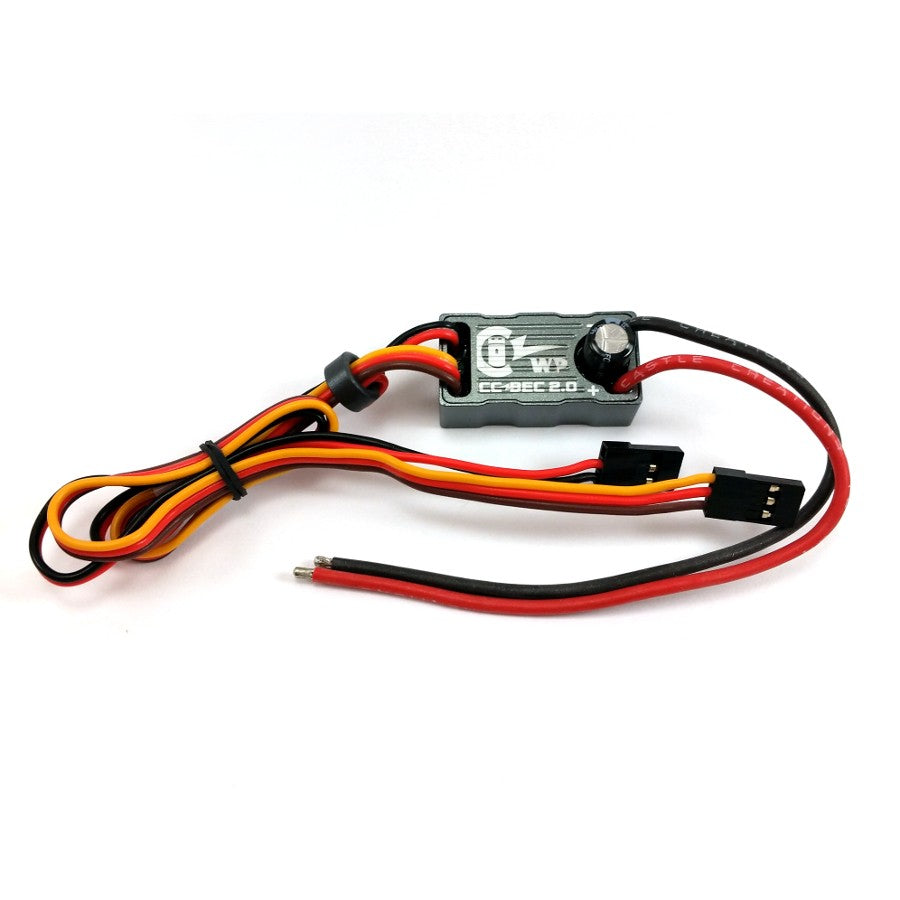

CASTLE CREATIONS BEC 2.0 WATERPROOF

The Castle Creations BEC 2.0 has two outputs: signal/power/ground for a servo or winch and power/ground for an accessory.

Output voltage is programmable using a Castle Link USB Programming Kit.

BEC 2.0 Waterproof Specifications:

• 15A peak current
• 4.75-7.0V output: 10A continuous
• 7.25V-8.5V output: 9A continuous
• 8.75V-10.0V output: 8A continuous
• 10.25-12.0V output: 7A continuous
• 12S LiPo maximum voltage
• 5.25V default output voltage
• 4.75 to 12V adjustable output voltage
• 1.37" (35mm) length
• 0.69" (18mm) width
• 0.75" (19mm) height
