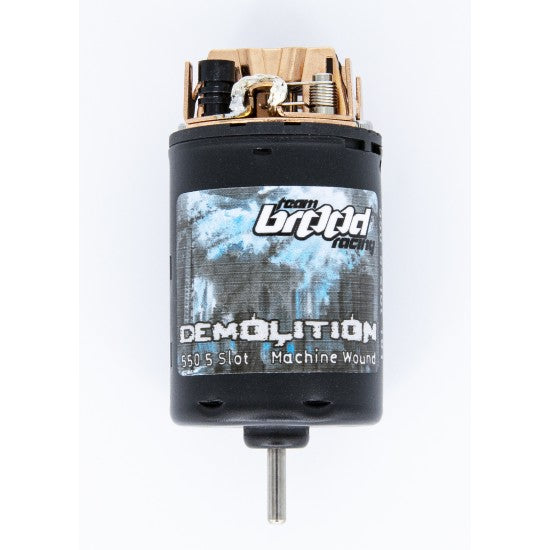

Team Brood Demolition 12 TURN 550 can

The assembly process is a rigorous one involving hand shimming, precise brush hood alignment, low impact break-in, and dyno testing. The result? Positively THE MOST POWER you can strap into your truck.

Don't compromise performance, buying into other "motor tuners" gimmicks. Go with Team Brood Horsepower, real knowledge - real wins.

Team Brood Racing racing motors are built to order, with construction times for this motor taking 1-2 days to complete. Your motor will be built just for you with our high quality parts and advanced construction techniques.

Features

• Dual Magnet Can with HG6 magnets - Maximizes torque and braking
• 1.4mm thick Can - Strengthens the magnetic field for maximum torque and braking with a durable finish
• Adjustable Timing - Fine tune the motors powerband to optimal settings
• Rebuildable - Can be rebuilt to provide maximum power and longevity
• Dual Precision Ball Bearings - Reduces friction provides increased efficiency and power
• Aluminum Heatsinks - Additional cooling provides for a more efficient motor
• Standup Brushes -  Long lasting performance brushes
• Springs - Optimal tension springs
• Machine Wound Armature:

Build Features

• Cleaned and Lubed Bearings - Allows for the smoothest operation
• Precision-Spaced Armature - Centers the Armature in the magnetic field with minimal play
• Precision-Measured Springs - Assures both springs are at the optimal tension
• Aligned Brush Hoods - Allows the brushes to make full contact allowing even wear and max power
• Tested - Each component is tested on calibrated
• Fully Broken-In - Ready to install and run
• 30 Day Limited Warranty

Options

Wind:The number of turns of an armature determines the amount of power, RPM and torque a motor will create.

The lower number of turns typically will make the motor produce more RPM and overall power, while torque per amp will be reduced, but less than the gain of RPM.

Higher turn motors will produce the more torque per amp, but will sacrifice RPM and power.

Lower turn motors will have reduced runtime and can require more maintenance. Proper maintenance and cleaning are much more critical on a lower turn motor.



KV Ratings - No Load with 5 Volts @ Zero Degrees

10t - 2230 KV

12t - 1940 KV
