Diesel Exhaust Hood Stack

Modifications Required: Drill holes in the hood with an M2 Bit

Hardware Needed: 6x M2x6mm

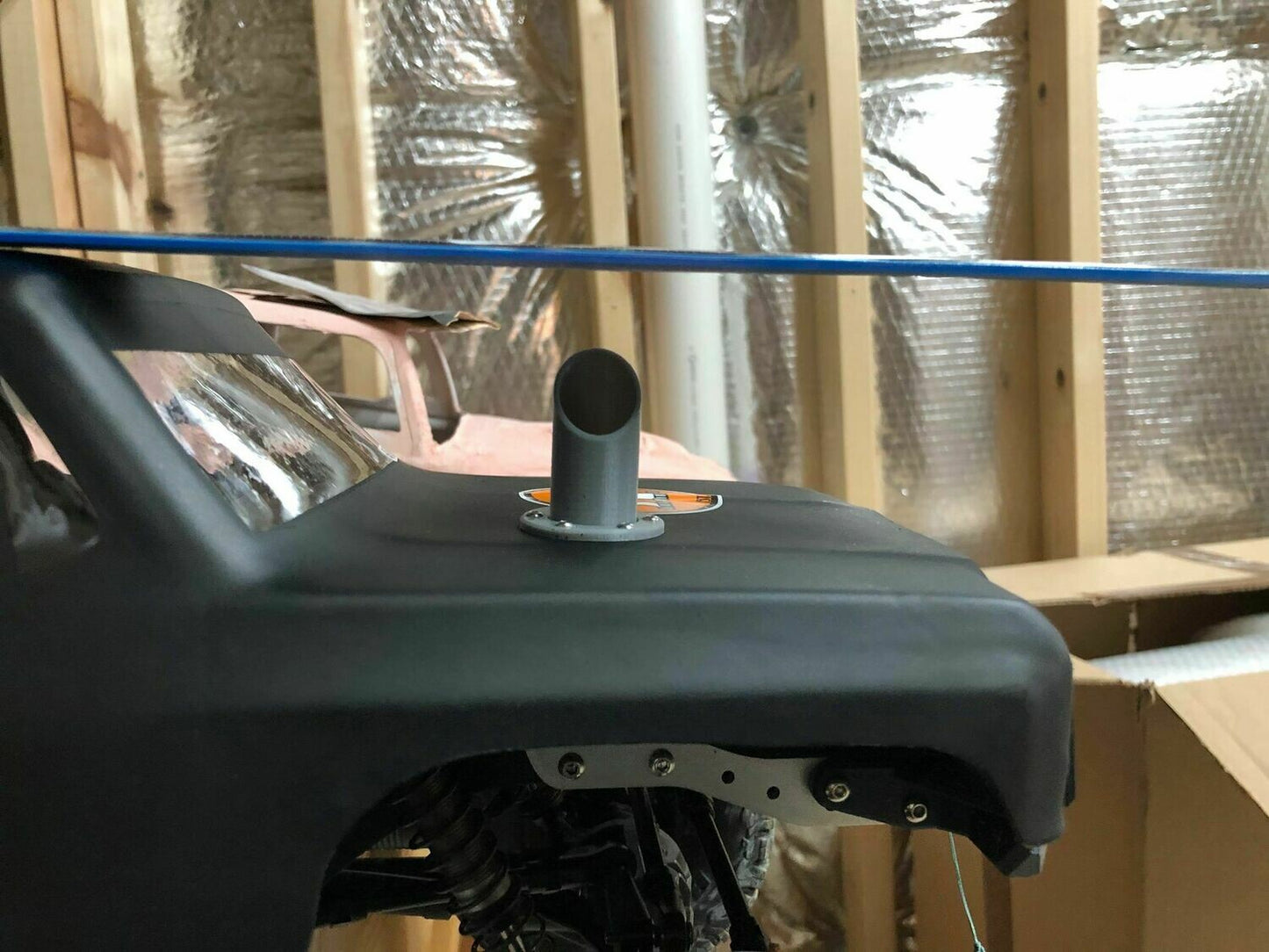

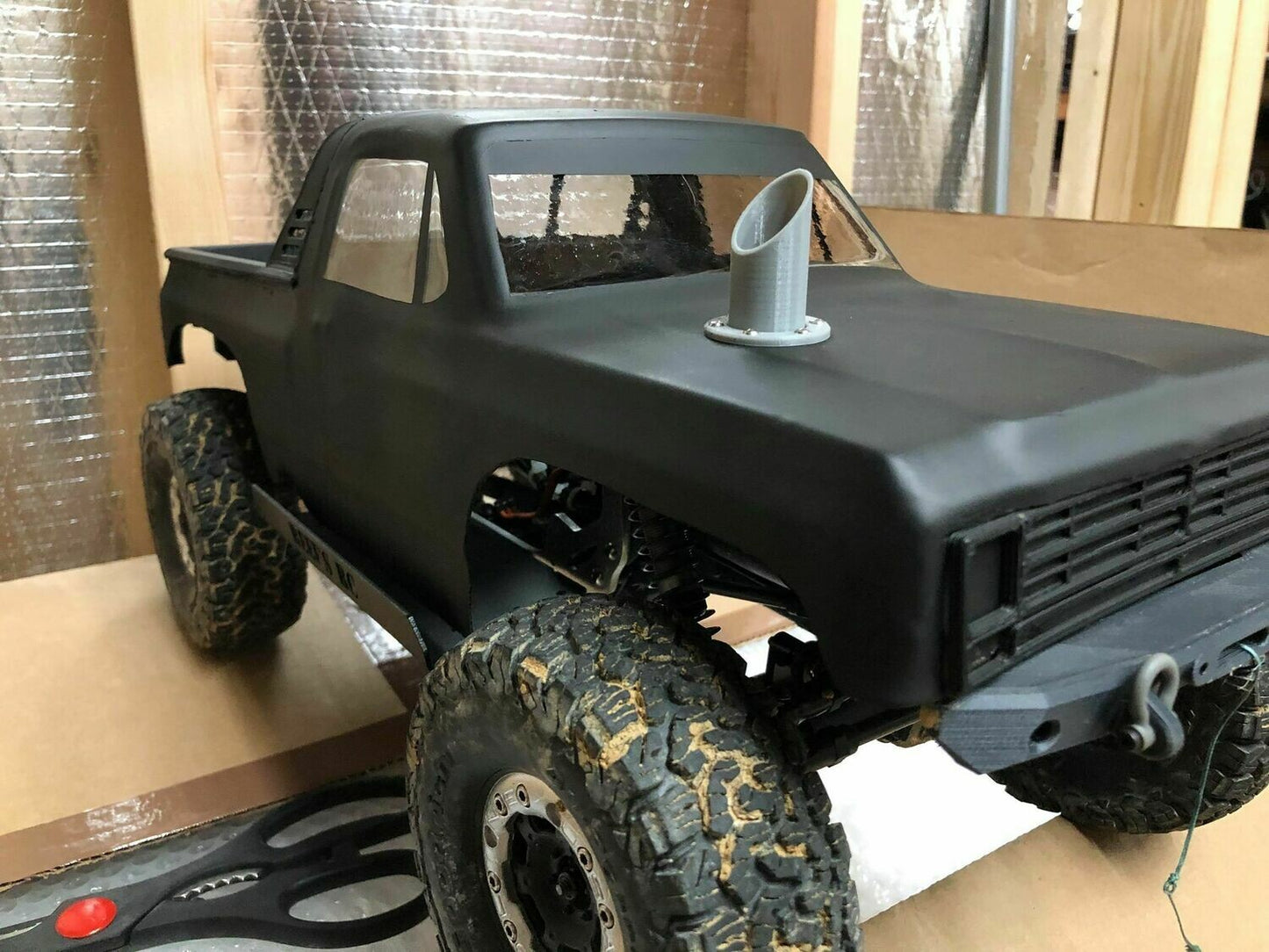

This is a 1/10th Scale universal hood Stack. This this comes in two parts. Top Bevel and the under hood bevel. The holes are intended for M2 hardware.

Mounting options:

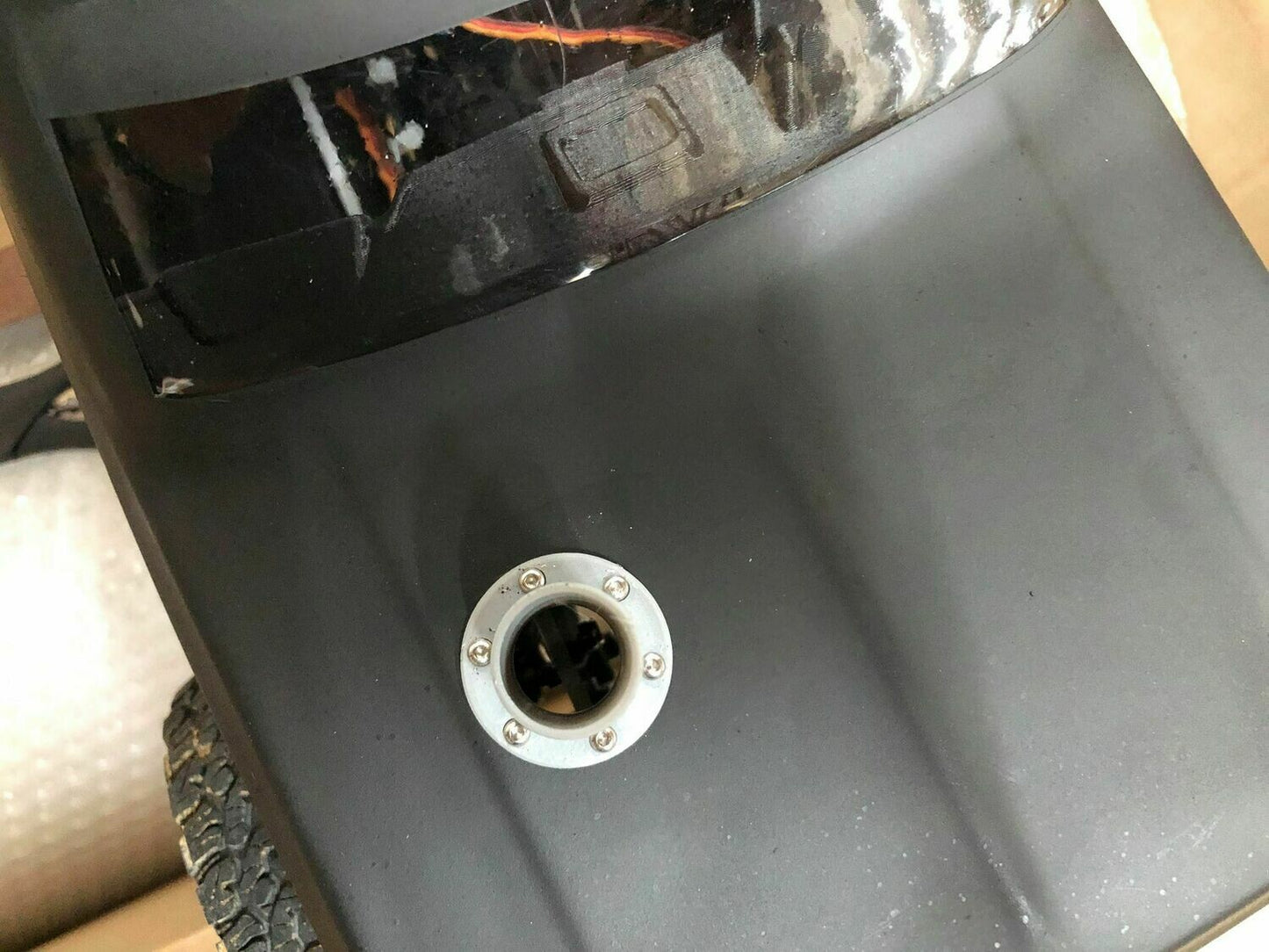

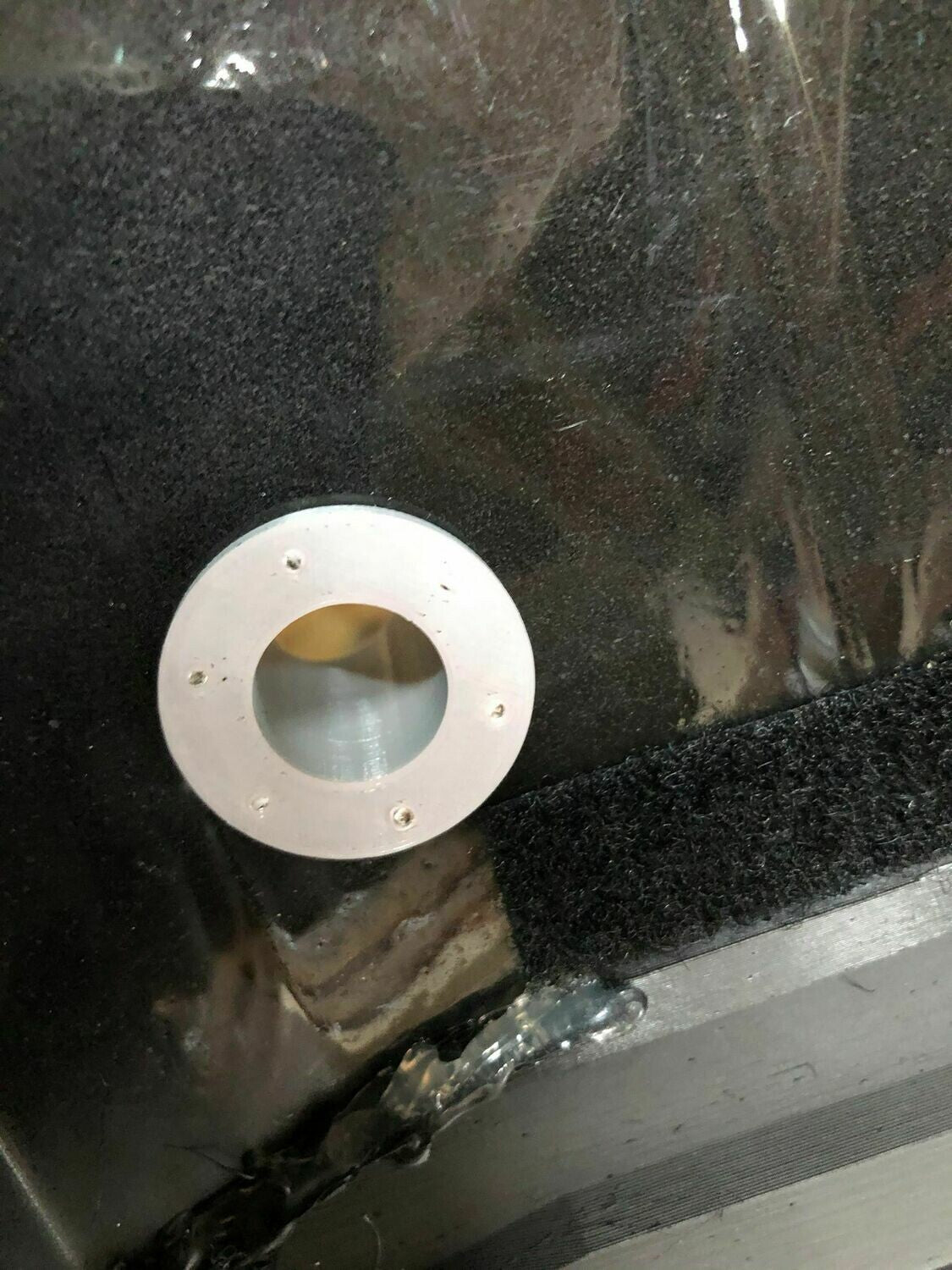

1. Drill a hole thought your body just big enough for the stack to fit thought from the underside. Slip the Bevel ring over from the outside and fasten with 6x M2x6mm screws.

2. Drill a hole though your body just big enough for the stack to slide thought from the underside and glue it in place from the inside. Dp mot use the exterior bevel.

Due to the nature of 3D printing, items may contain tiny visual blemishes. Items may require some trimming and painting for optimal visual appeal/fit; similar to what you would expect to do with model parts.

IMPORTANT: Do not use power drivers on 3D printed parts. Over tightening printed parts and cause premature cracking and crushing. Always ensure you hardware will not bottom out in the screw pocket. This can also cause at 3D printed part to break prematurely.

Printed Parts - These parts will be printed in Black (Unless otherwise requested) using advances slicing methods for maximum strength. All 3D printed parts come with a lifetime replacement guarantee. If you break a part, simply send us a photo and your order number. The photo is simply to evaluate for common issues and help identify potential improvements to existing designs.

Contact us @ Sales@spare-timehobbies.com or PM us @ Spare-Time Hobbies on Face Book.
