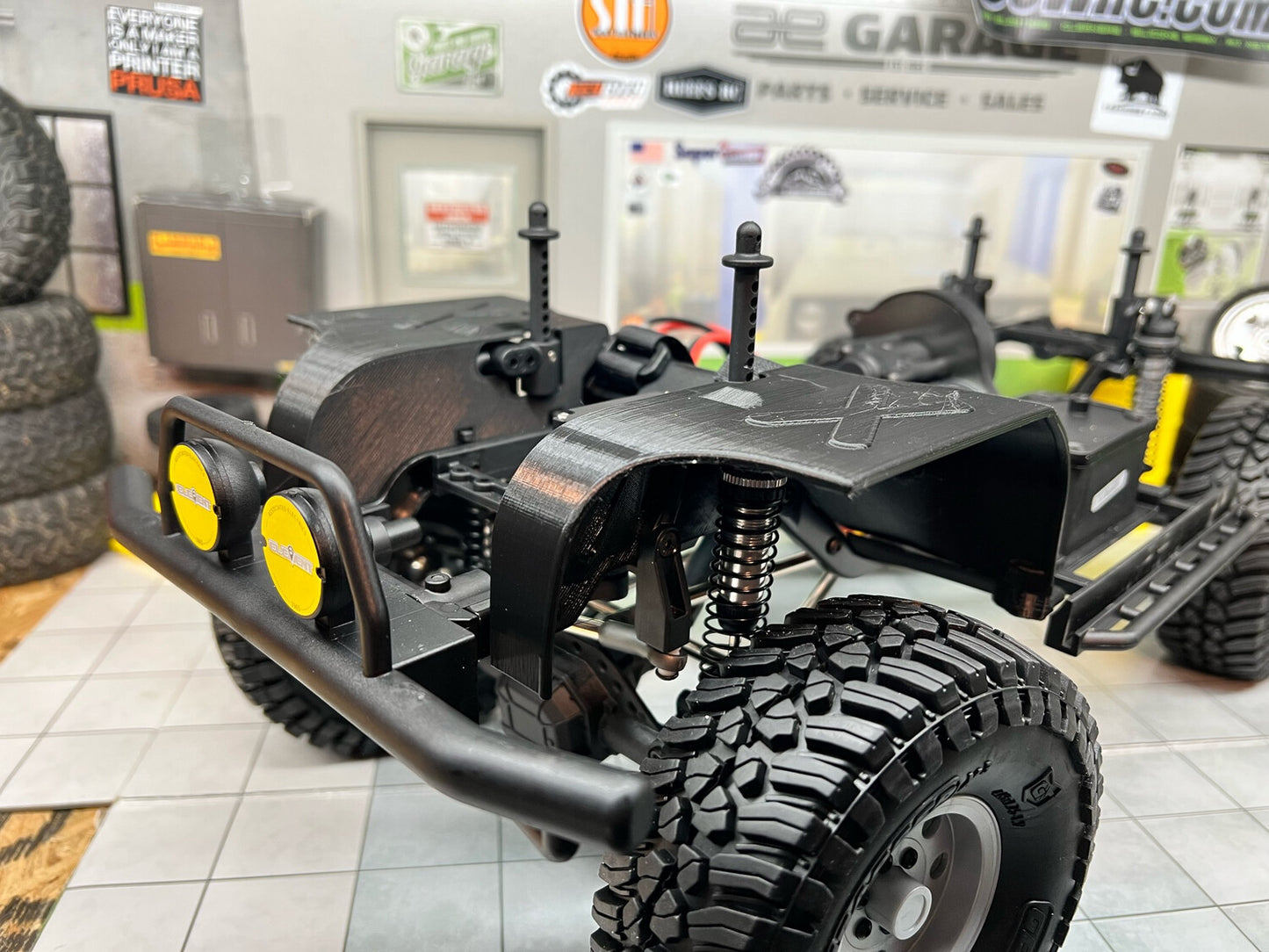

Element Bushido: Front Inner Fenders

Regular price $18.95

Shipping calculated at checkout.

The fenders are designed for the stock Bushido configuration(SHORT BATERY TRAY) They can be used with the other Enduro body’s but may require some trimming on the overall width depending on the body. The inner fenders will be printed in Black.

Hardware needed: 2-m3x8, 4-m3x6

To install: Remove the shocks from the shock tower, Remove the shock tower from the chassis and the forward most bumper mounting screw, lengthen your pan hard link by 1.2mm by un screwing a rod end 1 full turn, the shock tower inserts into the fender and is attached again with the three screws you removed, attach the slider joiner with the m3x6 to the slider, attach the slider joiner to the fender with the m3x8.




IMPORTANT READ:
IF A COLOR OS NOT SPECIFIED, YOUR ORDER WILL BE CYCLED TO THE BACK OF THE Q UNTIL I HEAR FROM YOU FOR YOUR COLOR SELECTION


You are selecting the Backing (Color of the back of the Bed Side Insert) and the Surface (Color of the part you see from the side of the truck. Look at the renderings for color example.


To install the Bed components, you must do it in the following order. 1) Remove the radiator, 2) Slip the bed sides between the fuel cell and the cage (It's a Snug Fit But It will Go), 3) Slide in and glue (Shoe Goo/E-6000/Hot Glue) the bed bottom to the side inserts(From Underneath), 4) Install the bed cap and glue or fasten with Zip Ties, 5) Glue/Zip sail panel in place. Use 2x M3 studs (Not Provided) and nitro fuel tube (Not Provided) to mock fuel fill. 6) Install the Radiator
Note: Zip Ties Must be Small (1.4x2.5mm Opening)




Due to the nature of 3D printing, items may contain tiny visual blemishes. Items may require some trimming and painting for optimal visual appeal/fit; similar to what you would expect to do with model parts.


IMPORTANT: Do not use power drivers on 3D printed parts. Over tightening printed parts and cause premature cracking and crushing. Always ensure you hardware will not bottom out in the screw pocket. This can also cause at 3D printed part to break prematurely.

Printed Parts - These parts will be printed in Black (Unless otherwise requested) using advances slicing methods for maximum strength. All 3D printed parts come with a lifetime replacement guarantee. If you break a part, simply send us a photo and your order number. The photo is simply to evaluate for common issues and help identify potential improvements to existing designs.
