Holmes Hobbies: TorqueMaster BR Mini WaterProof RTR ESC

This is a high performance product, not a stock replacement part intended for a specific vehicle. As such, you will need to find your own system limits for each system. Happy tuning!

Designed in the USA, made in USA and Mexico from domestic and foreign sourced parts

Current instruction sheet Click Here!

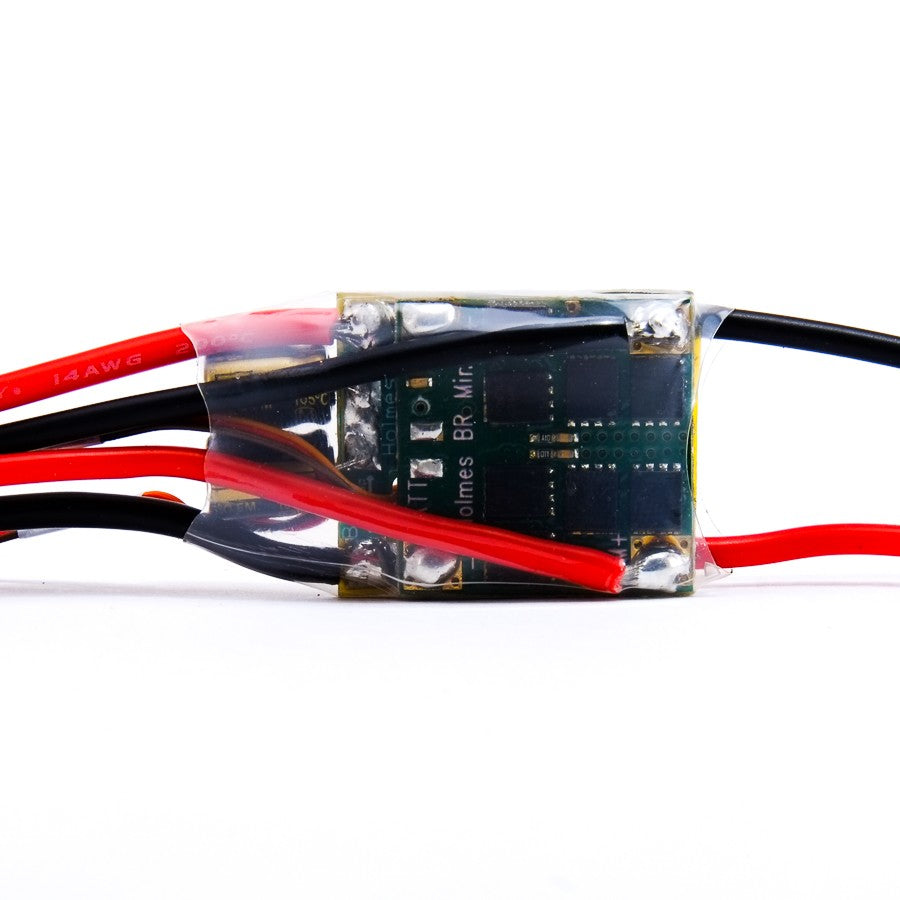

The TorqueMaster BR Mini is the shrunken version of the BR-XL.  No case, no heatsink, and a smaller footprint.  Perfect for weight conscious crawlers, off road trucks, robotics, servomotor and winch use. It has been designed from scratch to meet the rigorous demands of low speed control and high torque density.

Comes stock with Auto lipo LVC, Full drag brake, instant reverse, and 100% reverse throttle settings.

1 year warranty
6v to 25v input, external BEC suggested for all installations.
30a continuous, 80a burst
6v 0.5amp linear BEC @ 7.4v input
28 x 28 x 6mm PCB
8 grams (without wires)
Brushed only
Stick and Castle Link programming compatible

Reverse and brake adjustment
Throttle and Brake curve adjustment
Regenerative Drag Brake
Active Hold Brake (The Holmes Hold!)
Quiet mode

Recommended for competitive RC Rock Crawling  and Off Road Truck environtments, and 30a or less robotic use.
