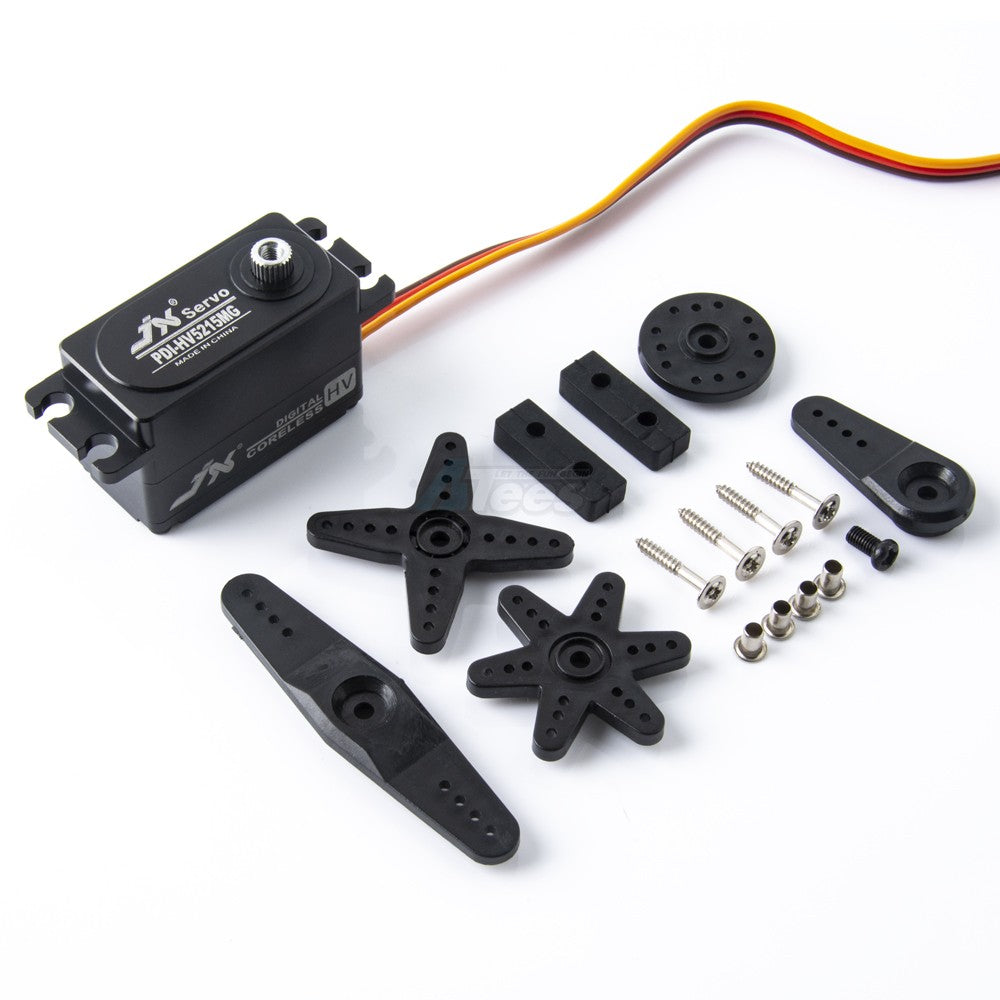

JX Servo High Voltage Aluminum Case Low Profile 12Kg/ 0.07 Sec @ 7.4V Digital Servo Black for RC Drift

PRODUCT INFORMATION:

• Specifications:
  • Control system: PWM control (1500 usec is the central point)
  • Working voltage: 6.0V – 8.4V
  • Working temperature: -20Cº- +60Cº
  • Operating Speed: (6.0V) 13.2kg / 0.09sec
  • Operating Speed: (8.4V) 15.6kg/ 0.07sec
  • Dead Zone: 2μs
  • Lifetime: >30000 times without load
  • Moving angle:60º±10º
  • Drive Type: MOS drive
  • Motor type: Coreless motor
  • Potentiometer type: Direct drive
  • Signal booster type: Digital
  • Dimensions: 40.5X20.5X26.8mm
  • Weight: 52g
  • Ball Bearing: 2BB
  • Gear material: Metal gear
  • Case Material: Aluminum
  • Wire length: 260mm
  • Wire gauge No and plug type: 26AWG, JR plug
• Color: Black
• Package total weight: 100.00 grams (incl. packaging)
• Factory description: JX Servo High Voltage Aluminum Case Low Profile 12Kg/ 0.07 Sec @ 7.4V Digital Servo Black for RC Drift
• Manufactured by JX Servo
• Manufacturer number: JX/PDI-HV5215MG
