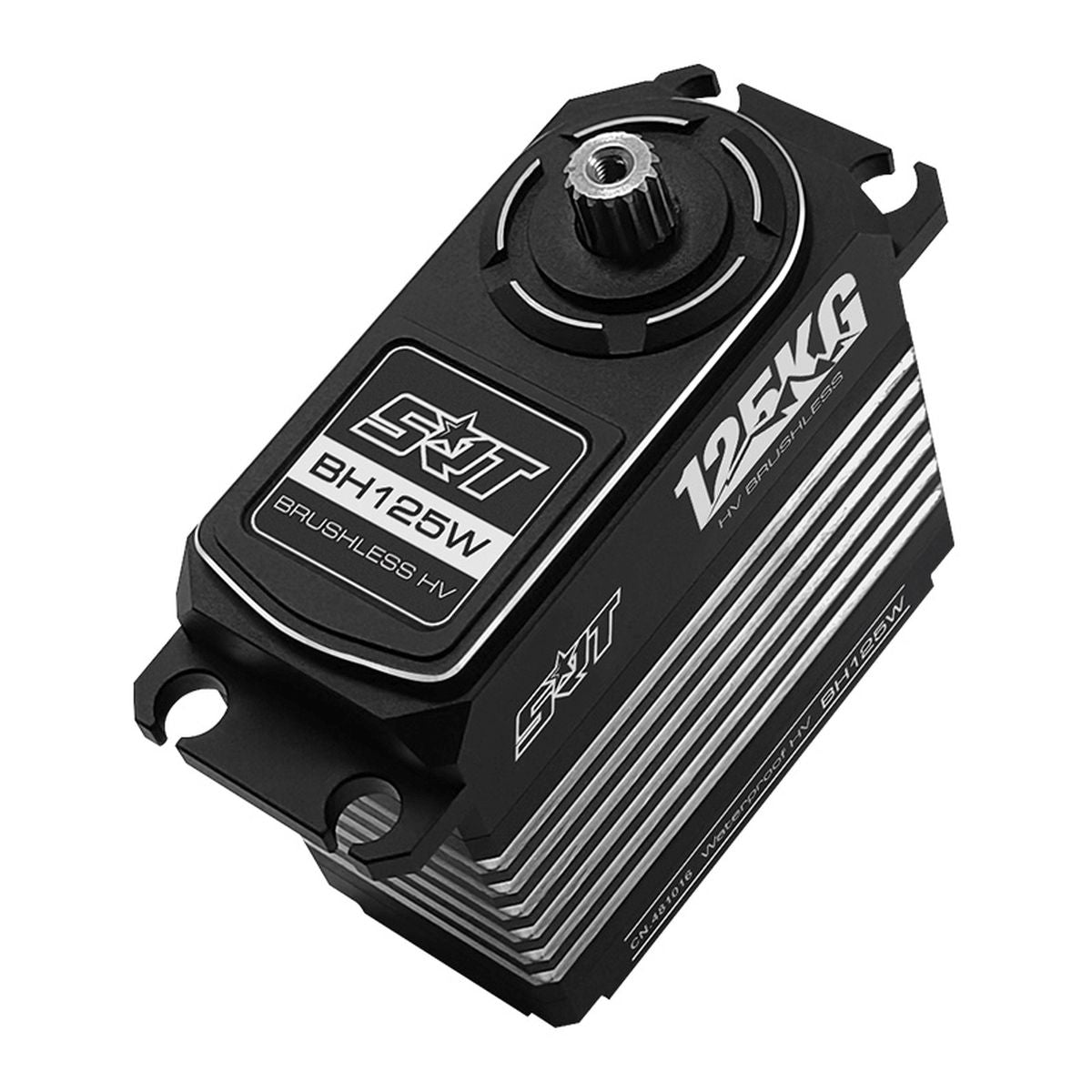

Large Scale HV Waterproof DC Digital Servo .085sec / 1735.9oz @ 8.4V

Large Scale HV Waterproof DC Digital Servo .085sec / 1735.9oz @ 8.4V

The latest generation of SRT servos provides you with the performance you need for any 1/5th to 1/6th scale vehicle application. Designed for High-Voltage applications up to 8.4V and featuring an all-metal case construction the are the servo for the ultimate 1/6th scale performance. The BH125W also features SRT innovations like the removable wire leads that allow for custom lead length and ease of maintenance and all-metal servo mounting tabs to keep them in place through the most extreme conditions.

Great Replacement for your stock SCX6 Servo!

Features:
Ideal for 1/5 on-road and 1/5 off-road scale applications
Superior Holding Torque
Incredible efficiency and low power consumption
Standard large-scale servo dimensions make it perfect for vehicles that can benefit from a high-quality servo
CNC-machined aluminum case for exceptional cooling
15T output shaft
2 usec Dead Band
Waterproof
1-Year Limited Warranty

Specifications:
Type: Digital
Bearing: Dual
Motor Type: Brushless

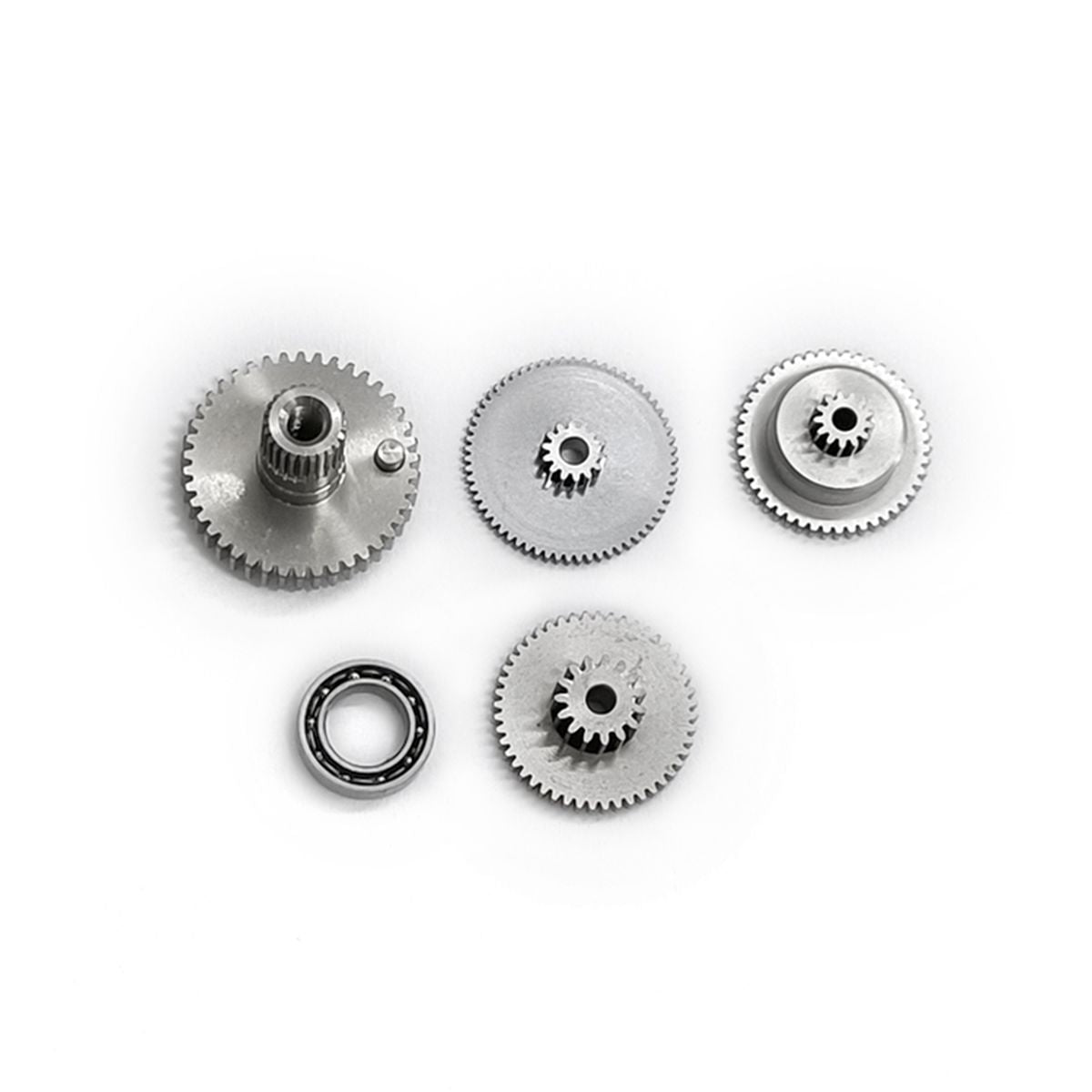

Gear Type: Metal
Gear Material: Steel
Control System: Pulse Width Control
Working Frequency: 1520Is / 330hz
Operating Voltage: dc6.0-8.4v
Operating Temperature Range: -10 to + 60 degree
Operating Speed (6.0v): 0.12 sec/60 degrees at no load
Operating Speed (7.4v): 0.11 sec/60 degrees at no load
Operating Speed (8.4v): 0.085 sec/60 degrees at no load
Stall Torque (6.0v): 90.0kg.cm (1249.9 oz/in)
Stall Torque (7.4v): 110.0kg.cm (1527.6 oz/in)
Stall Torque (8.4v): 125.0kg.cm (1735.9 oz/in)
Potentiometer Drive: Direct Drive

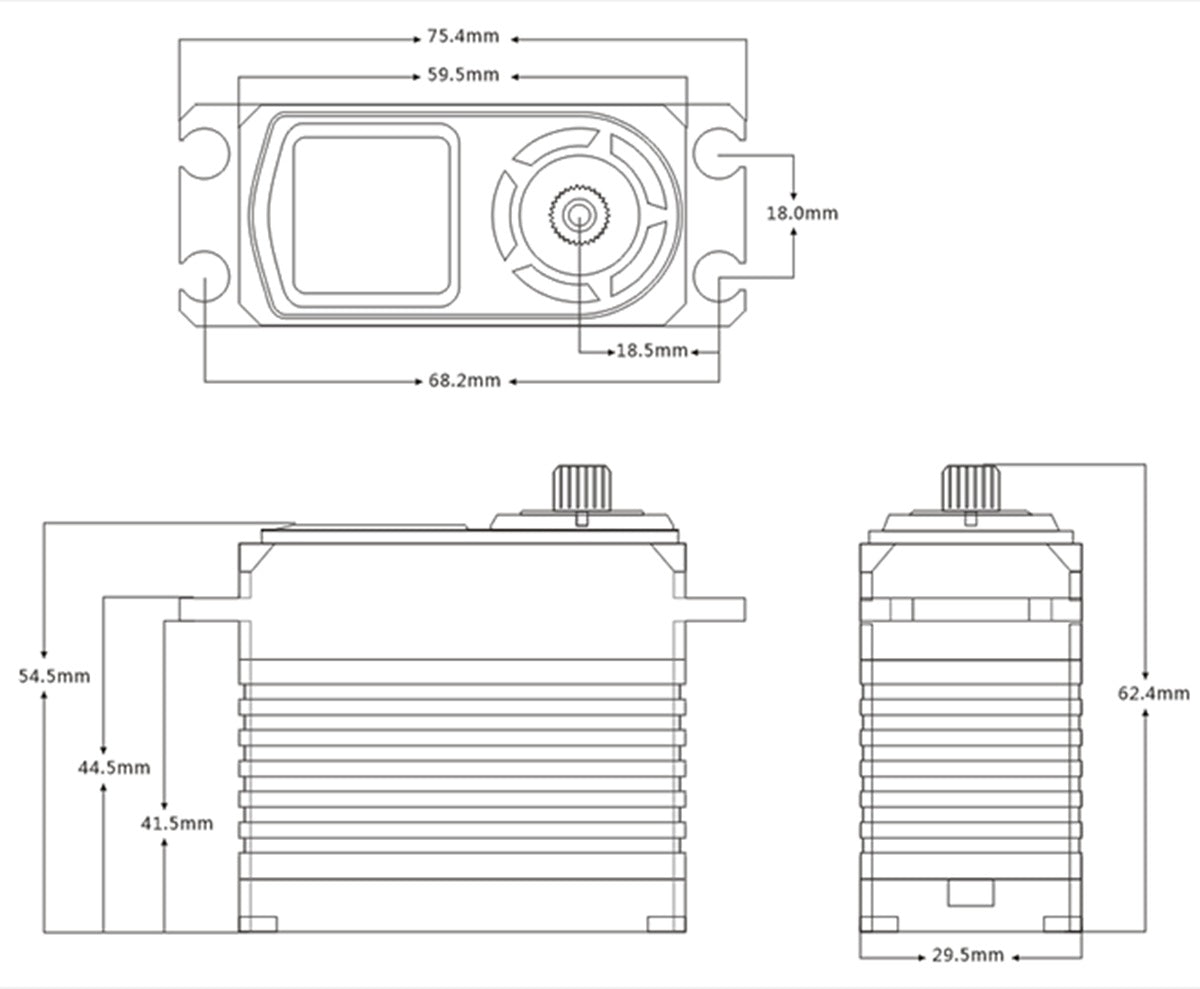

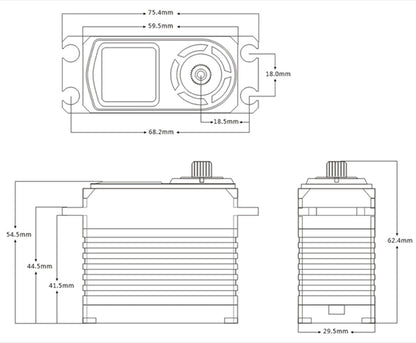

Dimensions: 59.5x29.5x54.5 mm /2.34x1.16x2.15 in
Weight: 209.0g (7.37 oz)
Connector Wire Length: jr 350 mm
Maximum locked-rotor current in different voltage: 6.0V -> 9.5A / 7.4V -> 11.5A / 8.4V -> 13A
