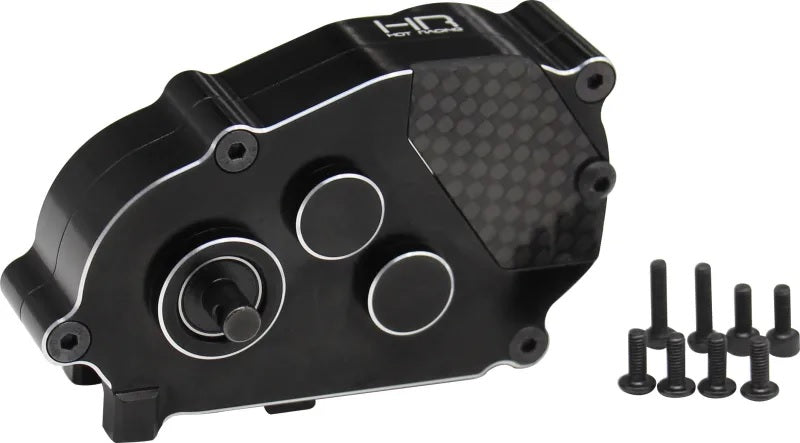

Low Center of Gravity Transmission Gear Box, for the Axial AX10 and SCX10

HRASCP38X01 - Low Center of Gravity Transmission Gear Box, for the Axial AX10 and SCX10

Includes:
One low CG transmission
Four M3x8mm flat head cap screw
Two M3x8mm button head cap screw

Requirements:
Trimming of the rear axle should be expected. Due to the large array of vehicle variants, additional axle trimming may be required. Recommended to use black grease gear lubricant on gear train.

Features:

• CNC machined 6061 aluminum case
• Hardened steel gears
• Full ball bearing
• High gear reduction
• 11.4:1 internal gear reduction
• Supports 9T to 30T 48 pitch pinion gears

Specifications:

• Length: 78.8mm
• Width: 18.8mm
• Height: 47.8mm
