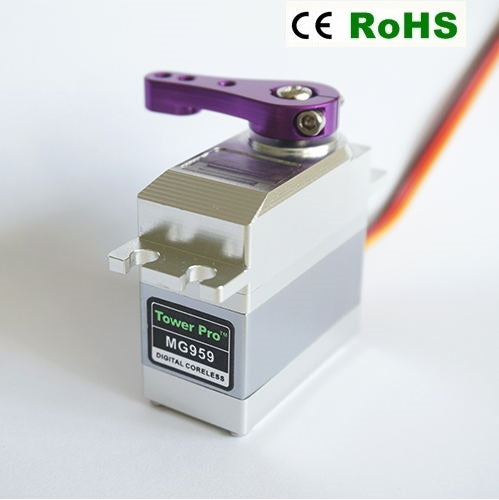

MG959 (Full CNC Alloy servo case high torque)

Regular price $36.00

Shipping calculated at checkout.

TowerPro MG959 Alloy Servo Case Digital Metal Gear Servo for giant airplane
Servo case milled from a single block of 6061 T651 aluminum


Weight: 78g
Dimensions: 40.2 x 20.1 x 36.8mm
Control system: +pulse width control 1520usec neutral
Required pulse: 3-5v peak to peak square wave
Operating voltage: 4.8v~6.0v
Operating temperature range: -0~+55℃
Operating speed (4.8v): 0.16sec / 60 degree at no load
Operating speed (6.0v): 0.13sec / 60 degree at no load
Stall torque @ 4.8V:
Stall torque @ 6.0V:
Motor type: Coreless motor
Potentiometer drive: Indirect drive
Bearing type: Dual ball bearing
Gear type: metal gears
Dead band width: 1us
Wire length: 32cm
servo arms &screws included
CE &RoHS approved
