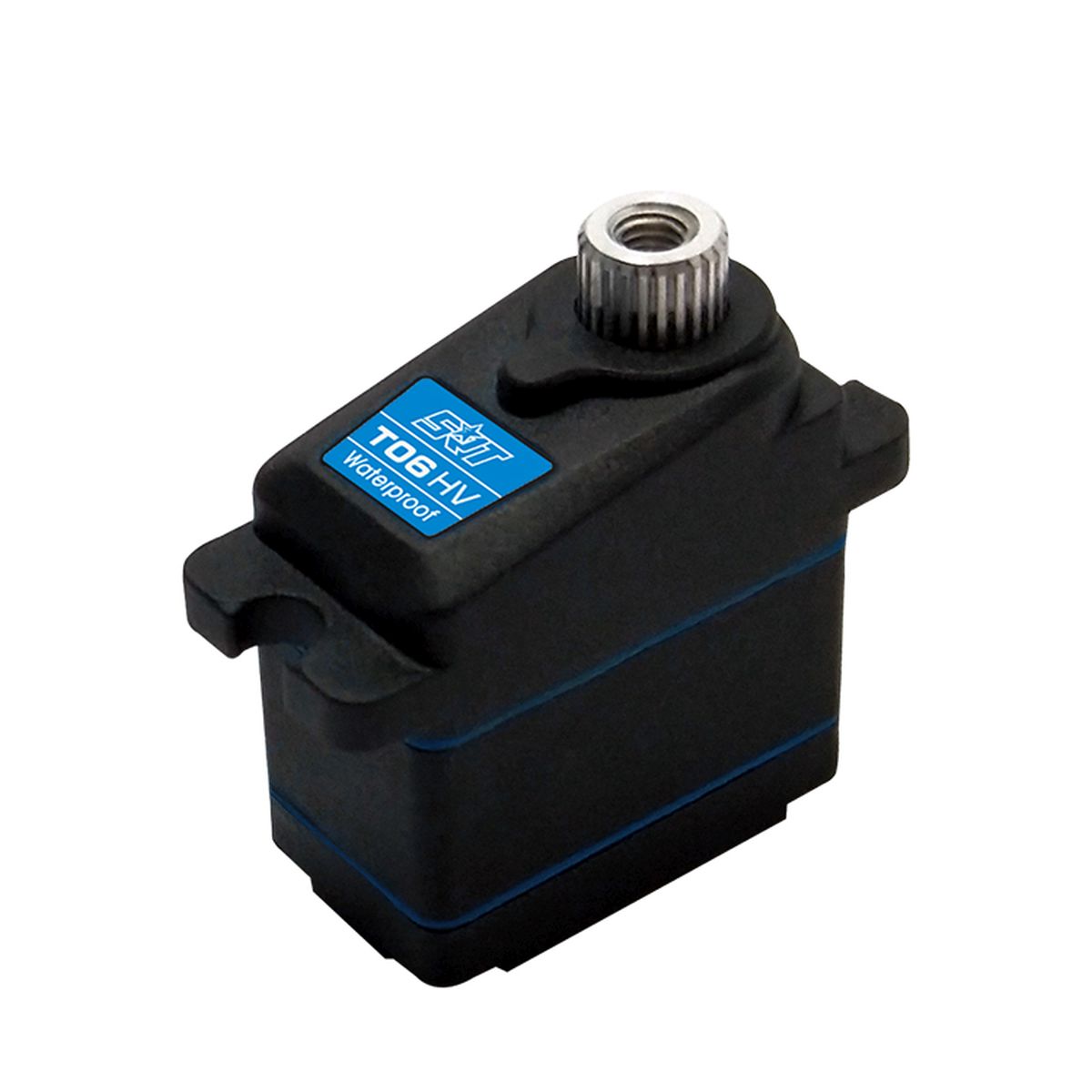

Mini HV DC Waterproof Servo, .10sec / 38.9oz @ 7.4V

Mini HV DC Waterproof Servo, .10sec / 38.9oz @ 7.4V

The latest generation of SRT servos provides you with the performance you need for any vehicle application. This is a mini sized servos for High-Voltage applications up to 7.4V.

Features:
Ideal for 1/10 on road and 1/10 off road scale applications (such as shifting or diff locking)
Incredible efficiency and low power consumption
Superior waterproof
1-Year Limited Warranty

Specifications:
Type: Digital
Bearing: Dual
Motor Type: DC
Gear Type: Metal
Gear Material: Copper & Aluminum
Control System: Pulse Width Control
Working Frequency: 1520Is / 330hz
Operating Voltage: dc4.8-7.4v
Operating Temperature Range: -10 to + 60 degree
Operating Speed (4.8v): 0.16 sec/60 degrees at no load
Operating Speed (6.0v): 0.12 sec/60 degrees at no load
Operating Speed (7.4v): 0.10 sec/60 degrees at no load
Stall Torque (4.8v): 1.9kg.cm (26.4 oz/in)
Stall Torque (6.0v): 2.5kg.cm (34.7 oz/in)
Stall Torque (7.4v): 2.8kg.cm (38.9 oz/in)
Potentiometer Drive: Direct Drive

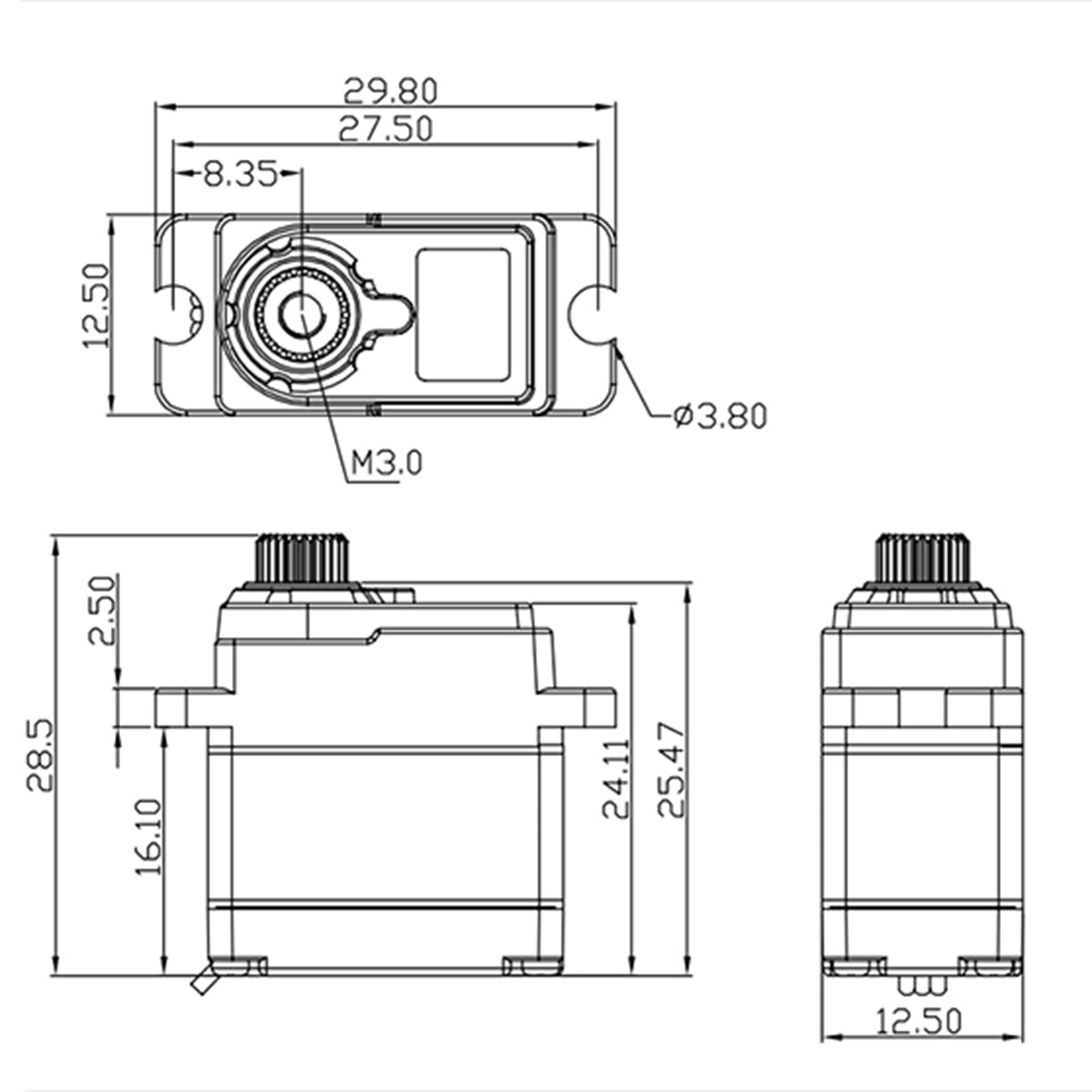

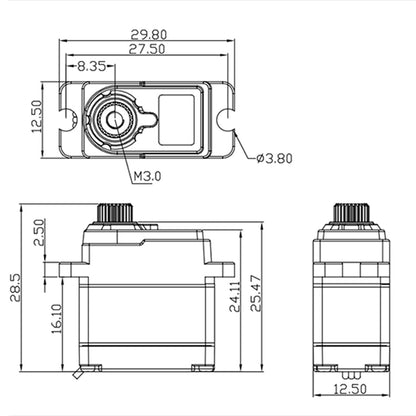

Dimensions: 22.5x12.5x24.0 mm /0.89x0.49x0.94 in
Weight: 16.0g (0.56 oz)
Connector Wire Length: jr 350 mm
