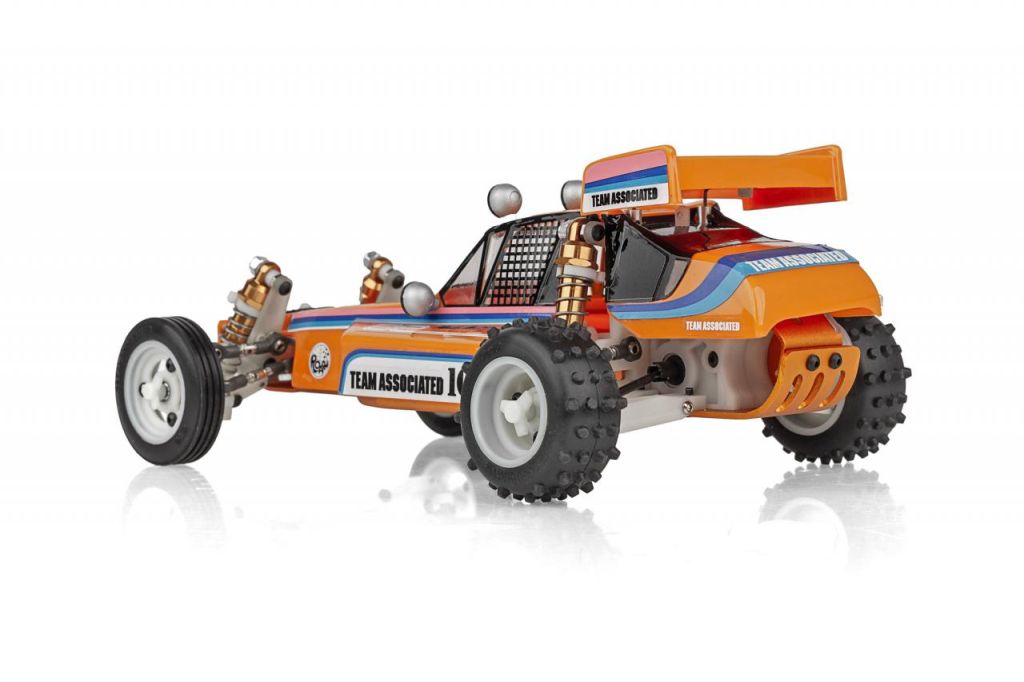

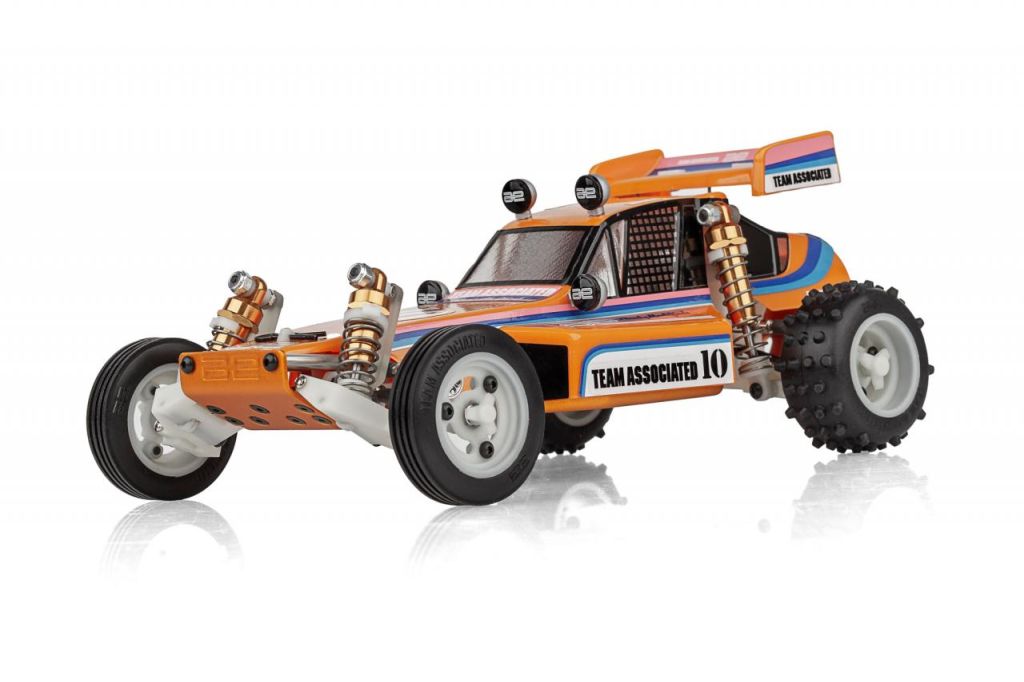

RC10 Model 24 Classic Buggy Kit

ASC20200 - RC10 Model 24 Classic Buggy Kit

You've heard it before, and it still rings true. Team Associated doesn't build toys - they design and engineer true RACE cars, now expertly scaled down to an authentic 1:24 version of the legendary RC10. The RC10 Model 24 captures the look, feel, and performance DNA of the original in a compact, precision-built package.

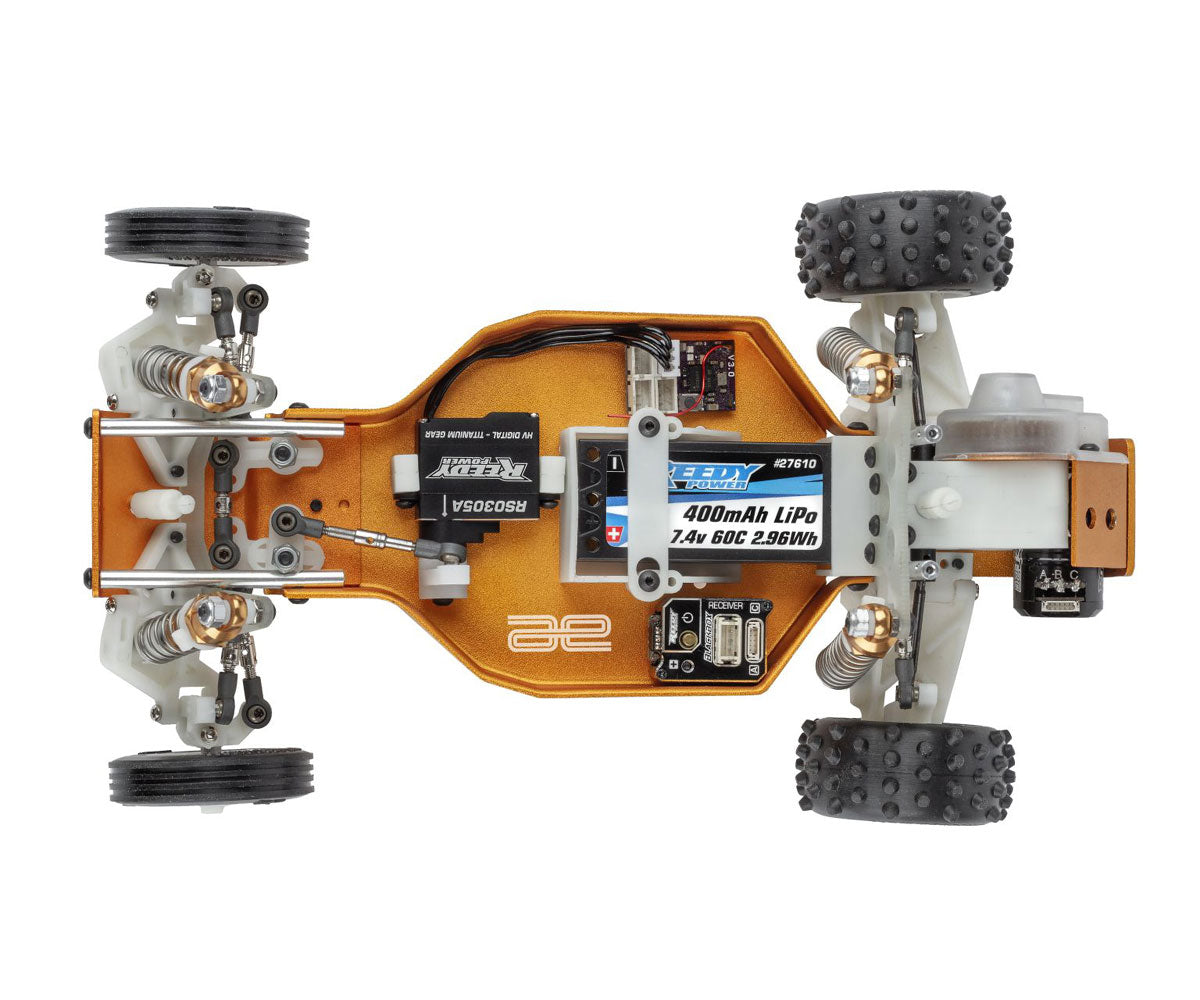

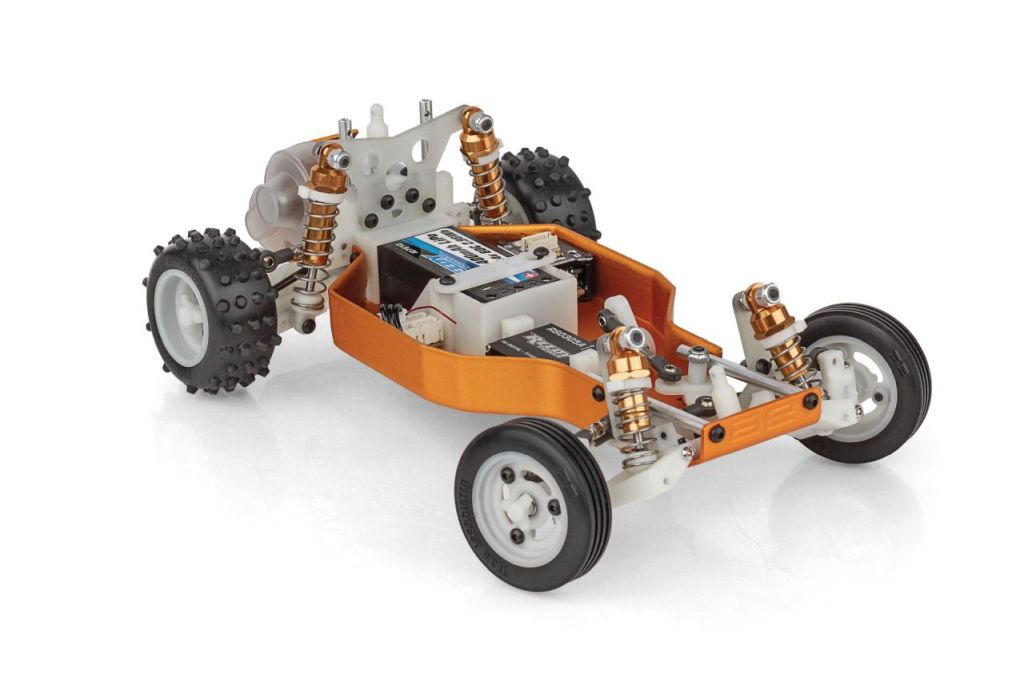

The RC10 Model 24 features fully independent suspension, a scaled aluminum monocoque tub chassis, and race-inspired hardware throughout. Strength, durability, and attention to detail come standard.

Long-throw, fluid-filled racing shocks deliver smooth, controlled damping, while the lightweight yet rugged suspension provides real adjustability just like larger counterpart race buggies. The A-arm design allows precise tuning of camber, ride height, and spring rates, and an adjustable gear differential ensures balanced power delivery.

With excellent ground clearance and a low center of gravity, the RC10 Model 24 delivers impressive balance and performance across a variety of surfaces.

Required to Complete:
R/C two channel surface frequency radio system
Batteries for transmitter
Micro Electronic Speed Control (ESC)
Micro Steering servo
Micro R/C electric motor
Battery charger (a peak detection charger, or LiPo compatible charger
2 cell LiPo battery pack
Polycarbonate specific spray paint for lexan body
Cyanoacrylate glue (CA)
Thread locking compound

Features:
Authentic precision hobby-grade 1:24 scale replica of the original RC10 Classic buggy
Gold anodized laser etched aluminum monocoque tub chassis
Hardened steel outdrives and dogbones
Fully adjustable four-wheel independent suspension
Long travel, fluid-filled gold anodized aluminum coil-over shocks
Sealed 3-gear transmission with fully adjustable slipper system
High-torque gear differential
Front and rear tires with three-piece racing wheels
Clear micro Protech body, wing, and driver with classic livery decal sheet
Fiberglass shock towers
Full metal ball bearings
All metric hardware
Compatible with all existing Reedy micro 1:24 and 1:28 scale electronics
Full parts support
Exceptional ground clearance with low center of gravity

Specifications:
Power Source: Electric
Terrain: Off-Road
Body Style: Buggy
Scale Size: 1:24 Scale
Assembly Level: Kit (This vehicle comes as a kit and must be fully assembled by the user. See "Required to Complete" for extra items needed.)
Length: 175mm (6.89in)
Width: 107mm (4.21in)
Wheelbase: 117mm (4.61in)
Weight: Varies
Internal Gear Ratio: 3.3:1
Drive: 2WD
