RC10B7 TEAM KIT - ASC90041

ASC90041

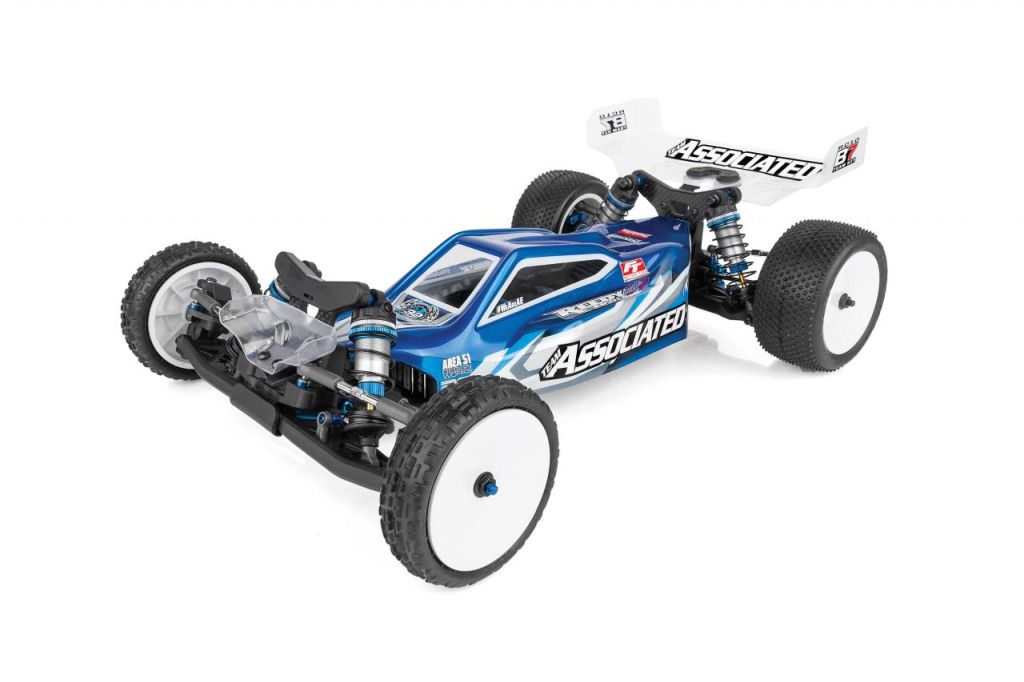

RC10B7 TEAM KIT
Team Associated has been at the leading edge of 1:10 scale 2WD off road for the last 40 years starting with the original RC10 and are proud to introduce this next generation to the world--the RC10B7. 40 years has seen a lot of development and changes, with each generation being a step forward from the last. The RC10B7 is no exception, boasting new long-arm suspension geometry, weight-centralized electronics layout, KPI adjustable steering blocks, and increased tunability throughout the whole chassis. These innovations have increased the potential for grip and corner speed, which leads to faster lap times and an overall easier-to-drive feel than the previous generation.

Includes:
Assembly Kit
Low-profile body
KPI adjustable steering and caster blocks (3 options)
Standard and HRC (High Roll Center) rear hubs
7-inch rear wing and 2.5-inch front wing
Shock tower covers front and rear
Required to Complete:
1:10 scale 540-size electric RC car motor
1:10 scale radio control electronic speed control
7.4V-7.6V 2S LiPo with "shorty" battery dimensions (standard or low-profile height)
Battery charger (compatible with chosen battery)
2 channel surface transmitter and 2 channel receiver
Steering servo
Lexan specific spray paint for body
1:10 scale off-road wheels and tires
Other helpful items: Silicone Shock Fluid, Silicone Diff Fluid, Body Scissors, Reamer, Wrench Set, Hobby Knife, Needle Nose Pliers, Wire Cutters, Soldering Iron, Calipers
Features:

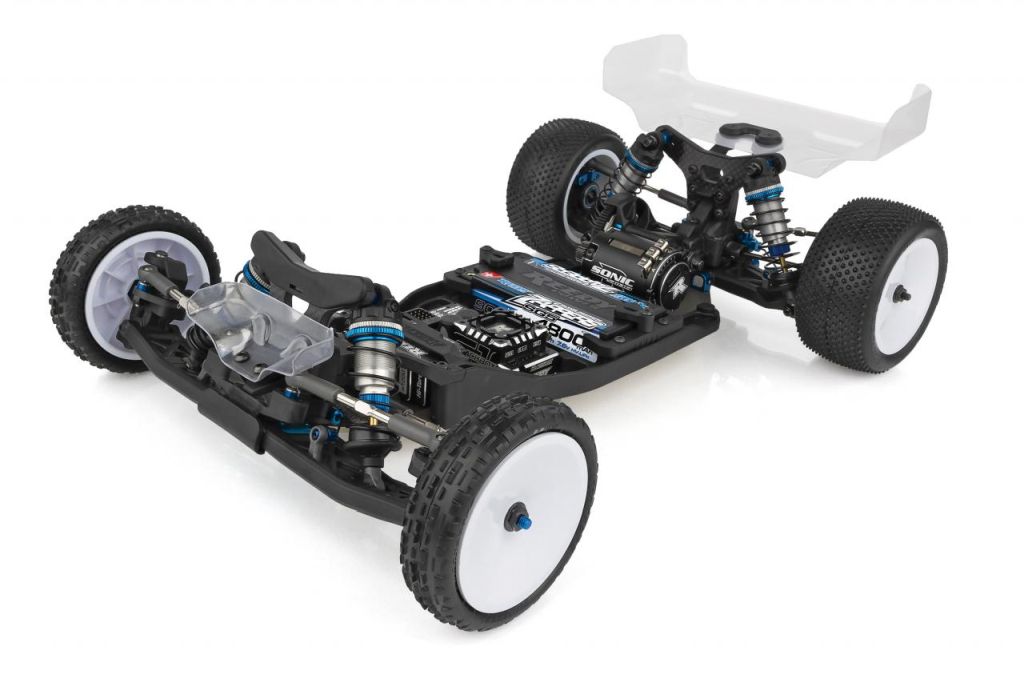

5-gear laydown transmission with low profile motor mount
Long-arm suspension geometry
KPI adjustable steering and caster blocks. Three options included.
Vertical front outer ballstud
Height adjustable aluminum front bulkhead
Standard and HRC (High Roll Center) rear hubs included
Highly adjustable battery holder with thumb tabs
7075-T6 aluminum chassis with increased departure angle and optional weight plate pockets
HD 69mm CVA bones and differential outdrives
Lightweight molded servo mount
One-piece rear wing mount
New 7-inch rear wing and 2.5-inch front wing
Low-profile body
Shock tower covers front and rear
3.5mm turnbuckles and ballcups
Specifications:
Power Source: Electric
Terrain: Off-Road
Body Style: Buggy
Scale Size: 1:10 Scale
Assembly Level: Kit
Length:390mm (15.35in)
Width: varies with user selected options
Wheelbase: varies with user selected options
Weight: varies with user selected options
Internal Gear Ratio: 2.60:1
Drive: 2WD
