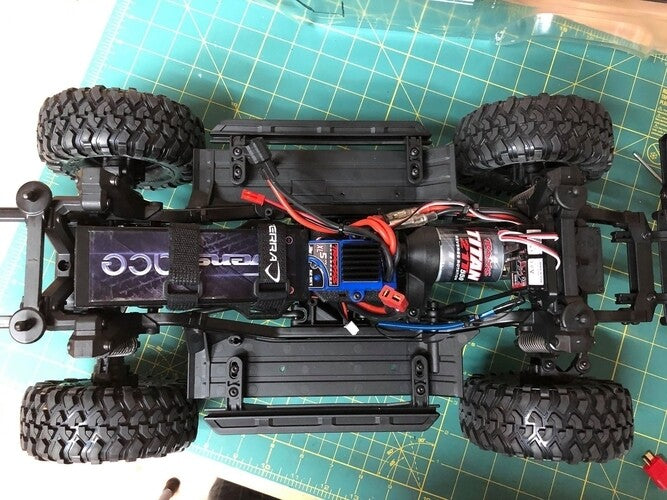

Here you have it. We’ll call it the TRX4 Sport “In Line, Low Rider” Conversion. Product will be printed in black.
This has to be part of the TRX4 Sport Interior Kit (will be included) to make it all fit. Plus those that wish to run a giant battery pack will have room. I have added plenty of slots for securing wires or electronic components to the plates in lue of tape or Velcro.

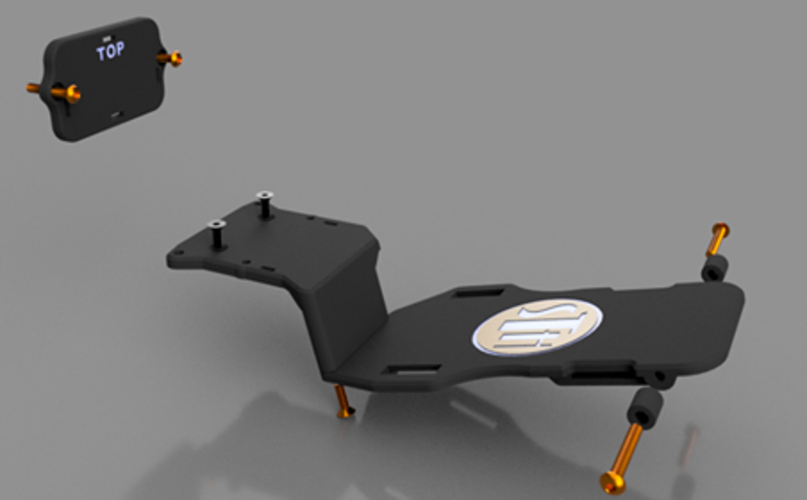

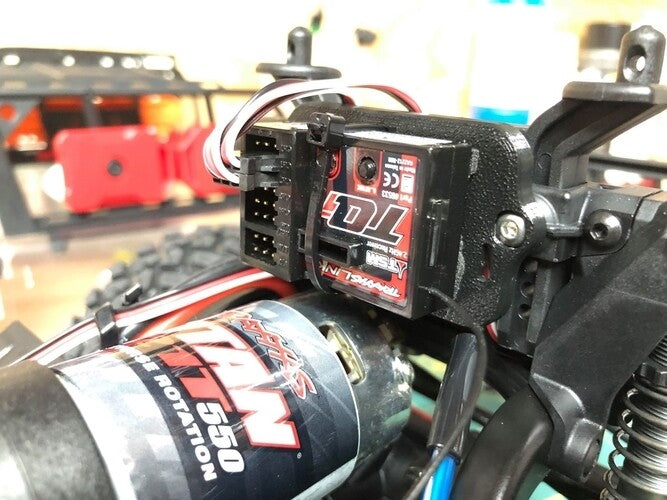

There is an optional RX Plate that mounts over the Motor.

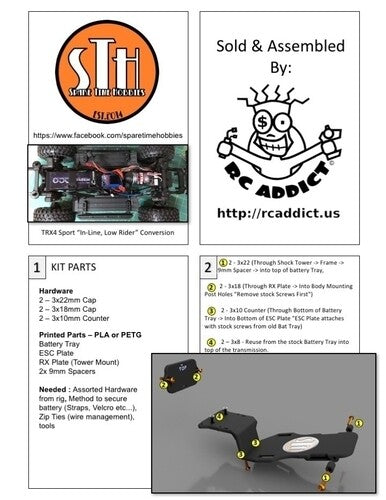

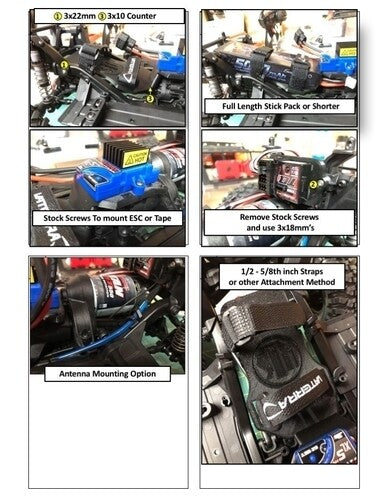

Hardware:
2 - 3x22 (Through Shock Tower -> Frame -> 9mm Spacer -> into top of battery Tray,
2 - 3x18 (Through RX Plate -> Into Body Mounting Post Holes "Remove stock Screws First")

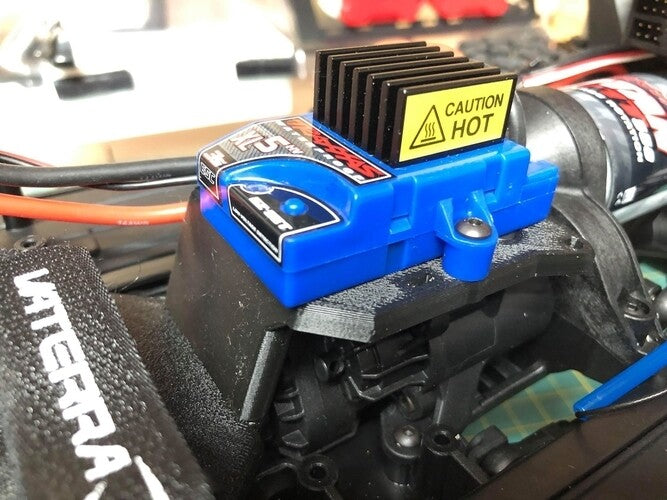

2 - 3x10 Flat (Through Bottom of Battery Tray -> Into Bottom of ESC Plate "ESC Plate attaches with stock screws from old Bat Tray)

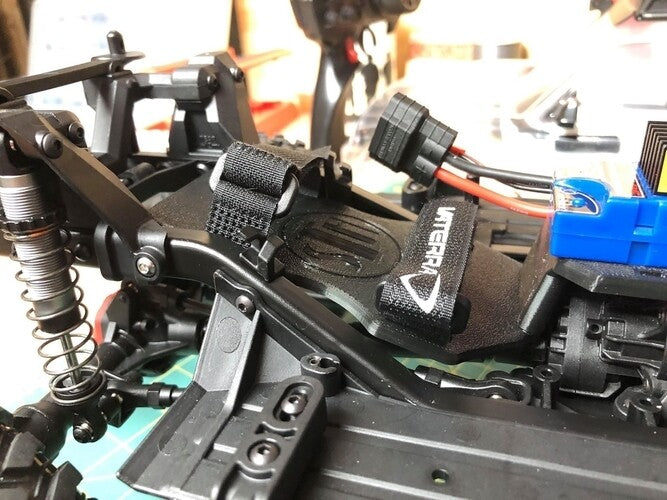

You will need to source two 1/2-5/8in wide straps. Similar to the ones that come with Axial, Vaterra or Gens Ace) Alternatively, you can use velcro to hold it all down.
Due to the nature of 3D printing, items may contain tiny visual blemishes. Items may require some trimming and painting for optimal visual appeal/fit; similar to what you would expect to do with model parts.
IMPORTANT: Do not use power drivers on 3D printed parts. Over tightening printed parts and cause premature cracking and crushing. Always ensure you hardware will not bottom out in the screw pocket. This can also cause at 3D printed part to break prematurely.
Printed Parts - These parts will be printed in Black (Unless otherwise requested) using advances slicing methods for maximum strength. All 3D printed parts come with a lifetime replacement guarantee. If you break a part, simply send us a photo and your order number. The photo is simply to evaluate for common issues and help identify potential improvements to existing designs.
Contact us @ Sales@spare-timehobbies.com or PM us @ Spare-Time Hobbies on Face Book.
