SGC Pan hard reinforcement kit for SCX6

SGC Pan hard reinforcement kit for SCX6

Upgrade your SCX6 with the SGC Pan Hard Reinforcement Kit, designed to enhance your truck’s suspension performance and provide added strength to critical linkage points. Whether you're tackling tough terrain or engaging in high-performance driving, this kit is a perfect solution for reinforcing your panhard system.

Kit Includes:

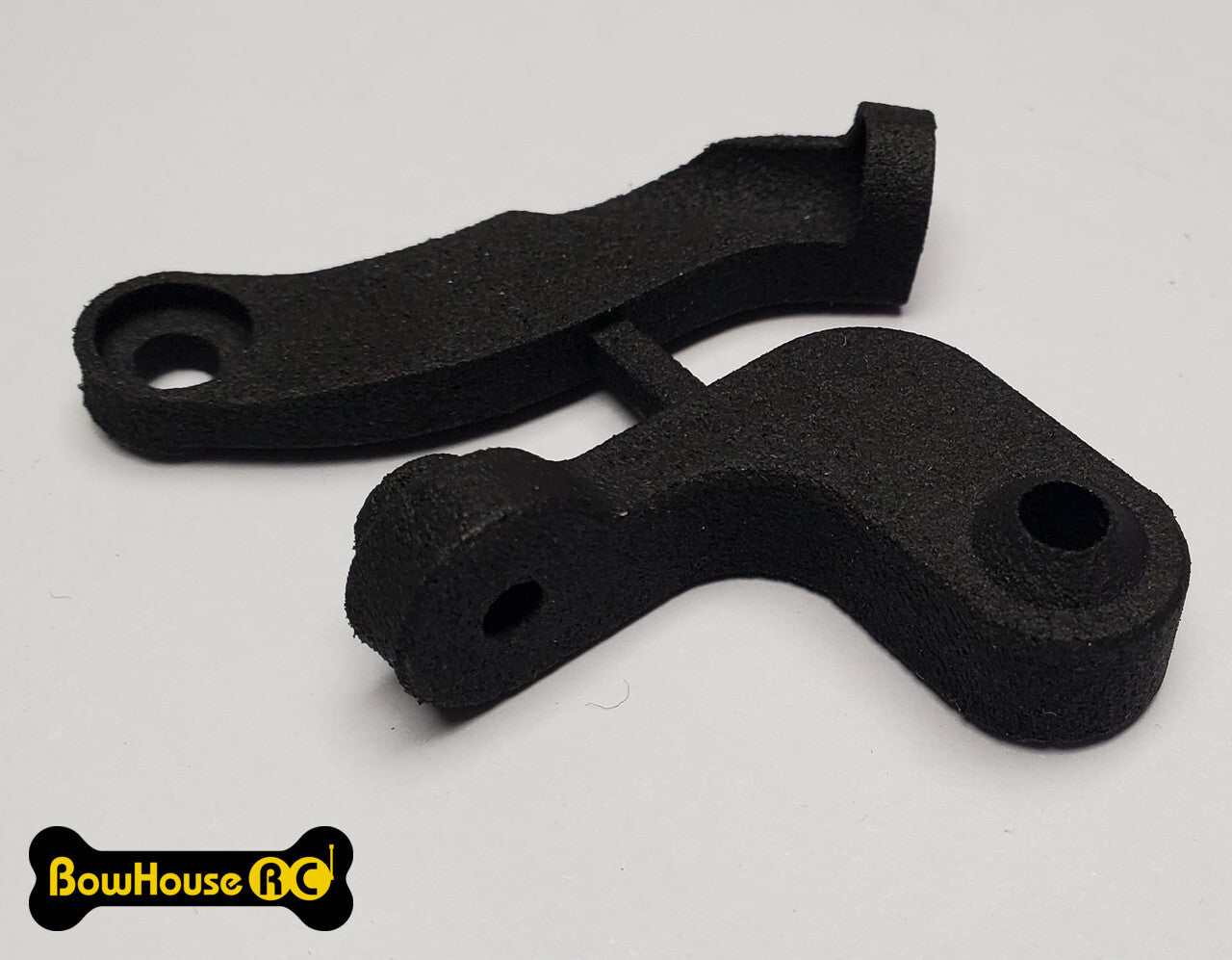

• 1x Parts Tree – Contains all necessary components for installation.

• 2x M4x30MM Button Head Screws – High-quality screws to secure the parts.

Installation Notes:

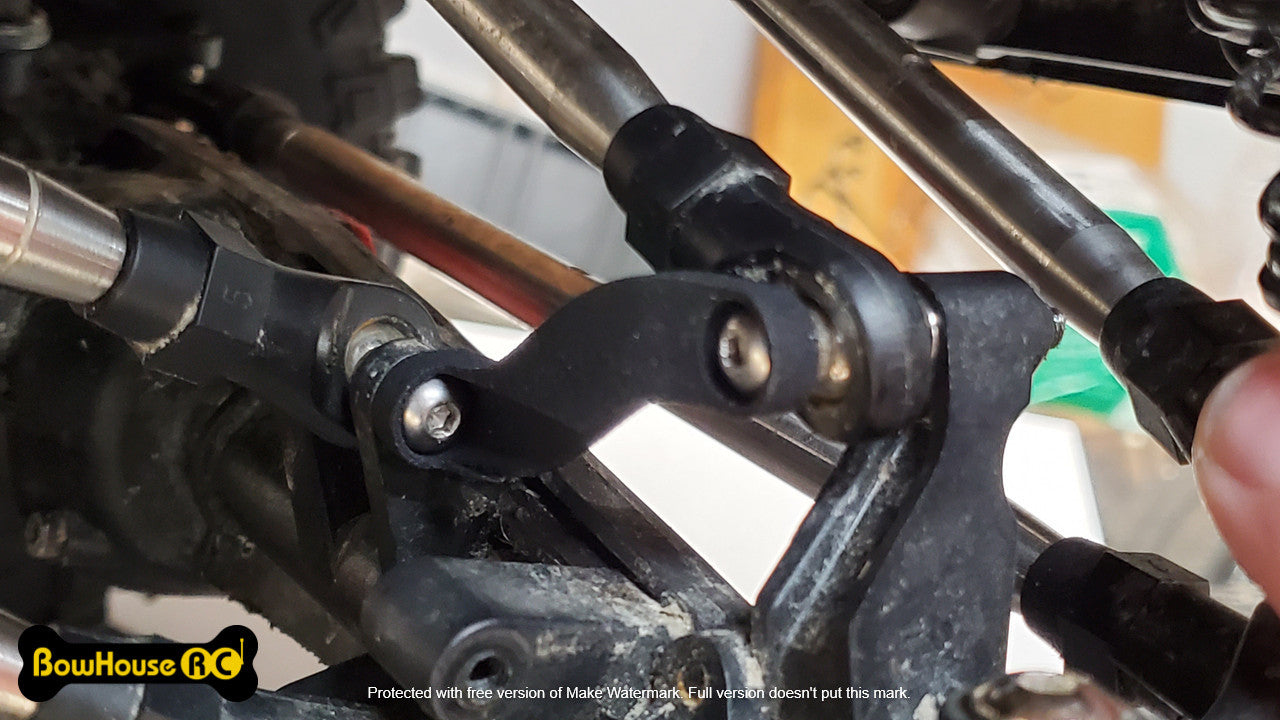

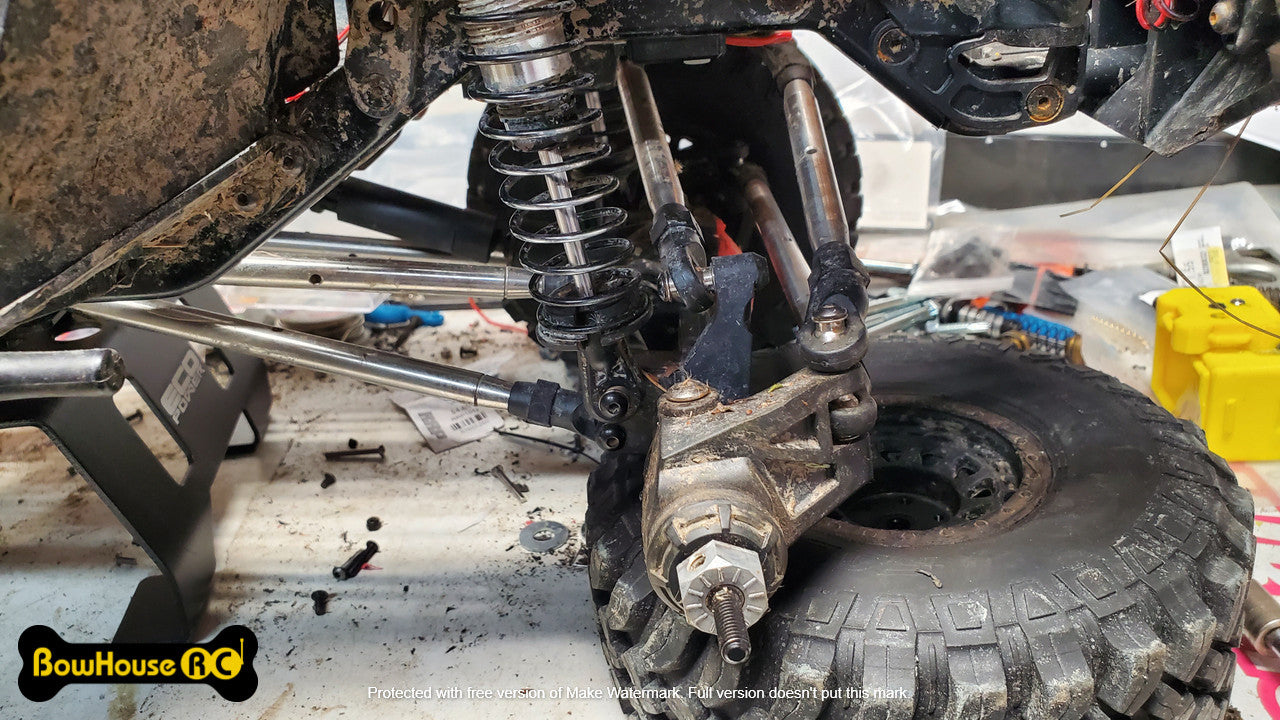

1. Axle Side:

   • Begin by removing the right front wheel.

   • Remove the lower shock screw to move the shock out of the way.

   • Remove the screws from the upper link and panhard link (save for reuse).

   • Attach the bracket between the upper link mount and panhard mount using one of the supplied 30mm screws.

   • Reuse the screw on the panhard link to the C-Hub to reattach the link.

   • Reinstall the shock and wheel.

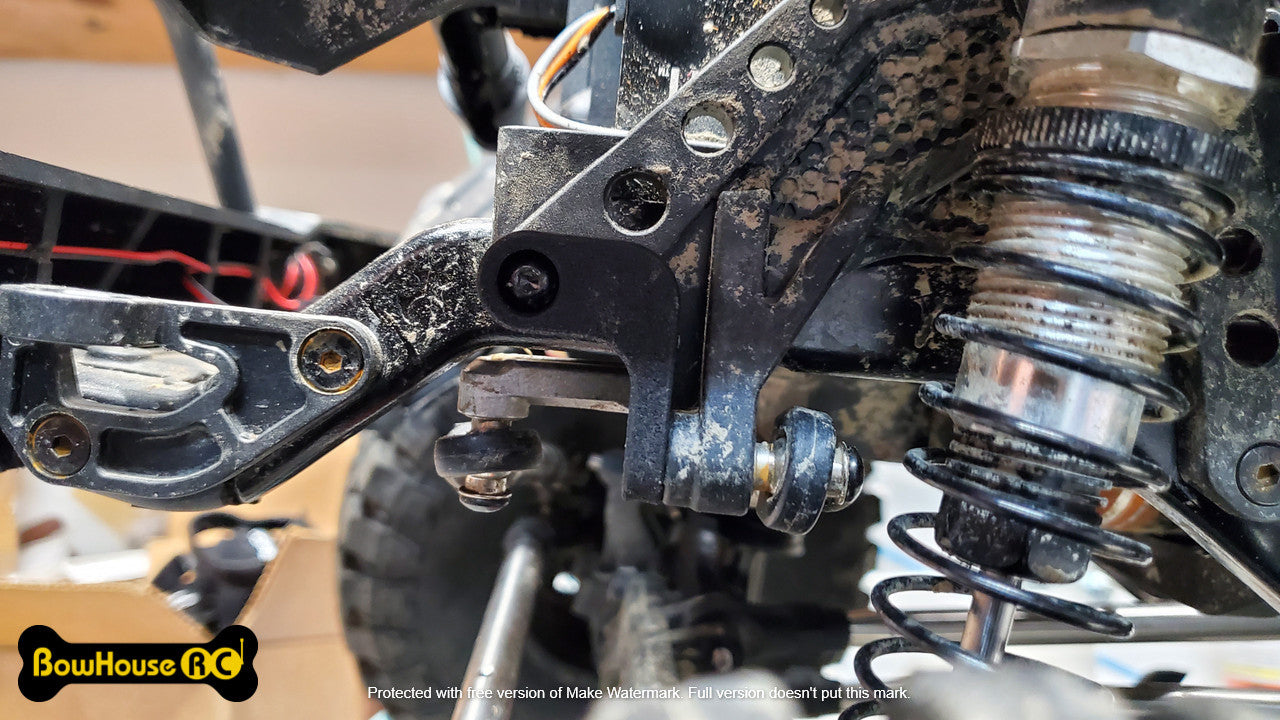

2. Chassis Side:

   • Remove the 2 screws holding the bottom of the shock tower, and the 2 screws on top of the shock tower/fender.

   • Swing the fender out of the way and the shock tower will move freely.

   • Remove the screw from the panhard link.

   • Use one of the supplied 30mm screws to reattach the link and bracket (leaving extra length for optional nut addition, not supplied).

   • Reinstall the shock tower with one of the longer screws left over from the axle side.

   • Reattach the remaining screws and secure everything back in place.

After installation, sit back and admire your work! Your SCX6 will now be ready for action, with reinforced panhard linkage for improved handling and durability. Go drive with confidence!
