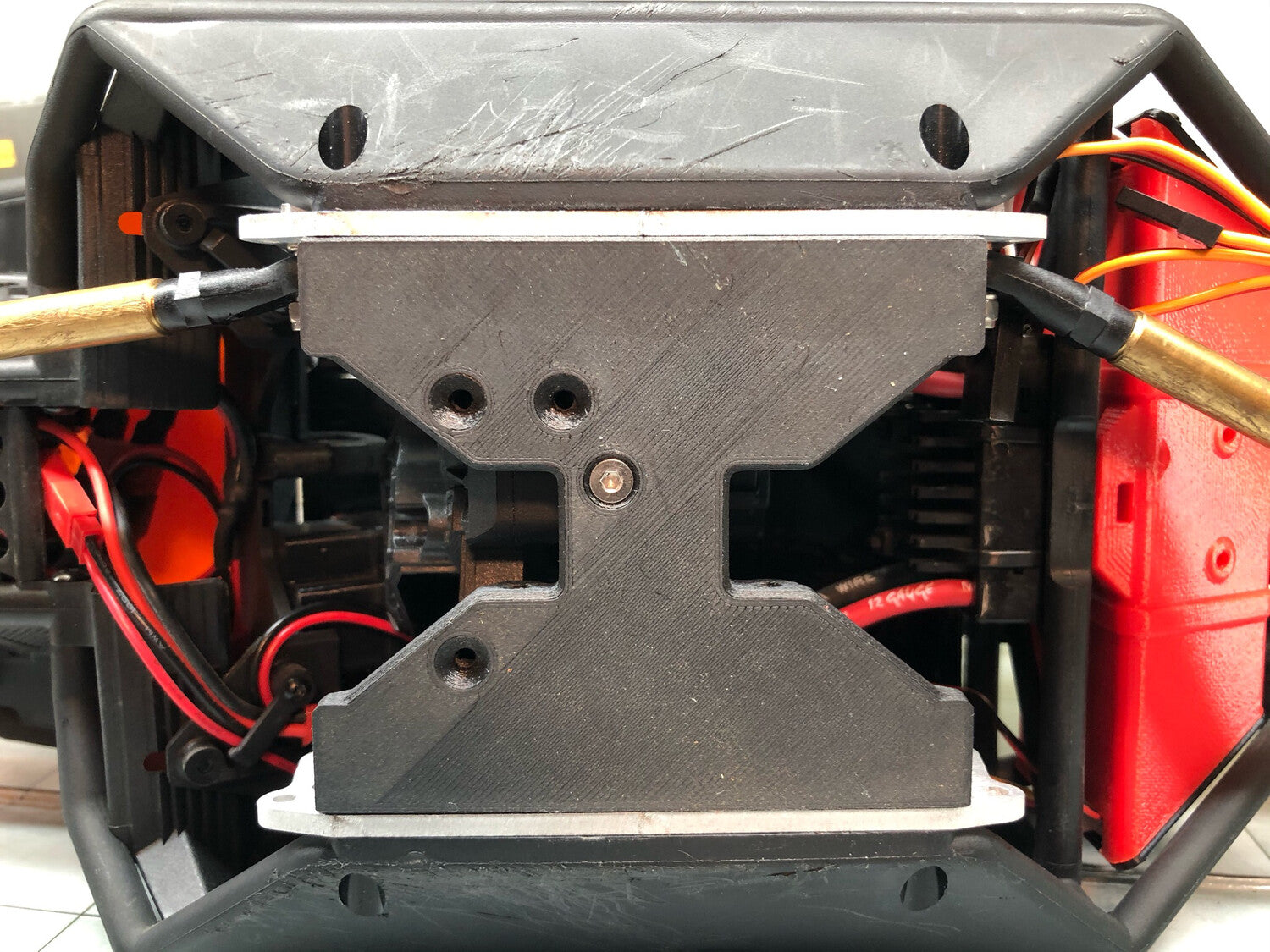

READ: Stock Tray interior will need to be removed for some Scx-10 and element trans to work. Additionally , you may need to move your ESC and RX to accommodate the new setup.

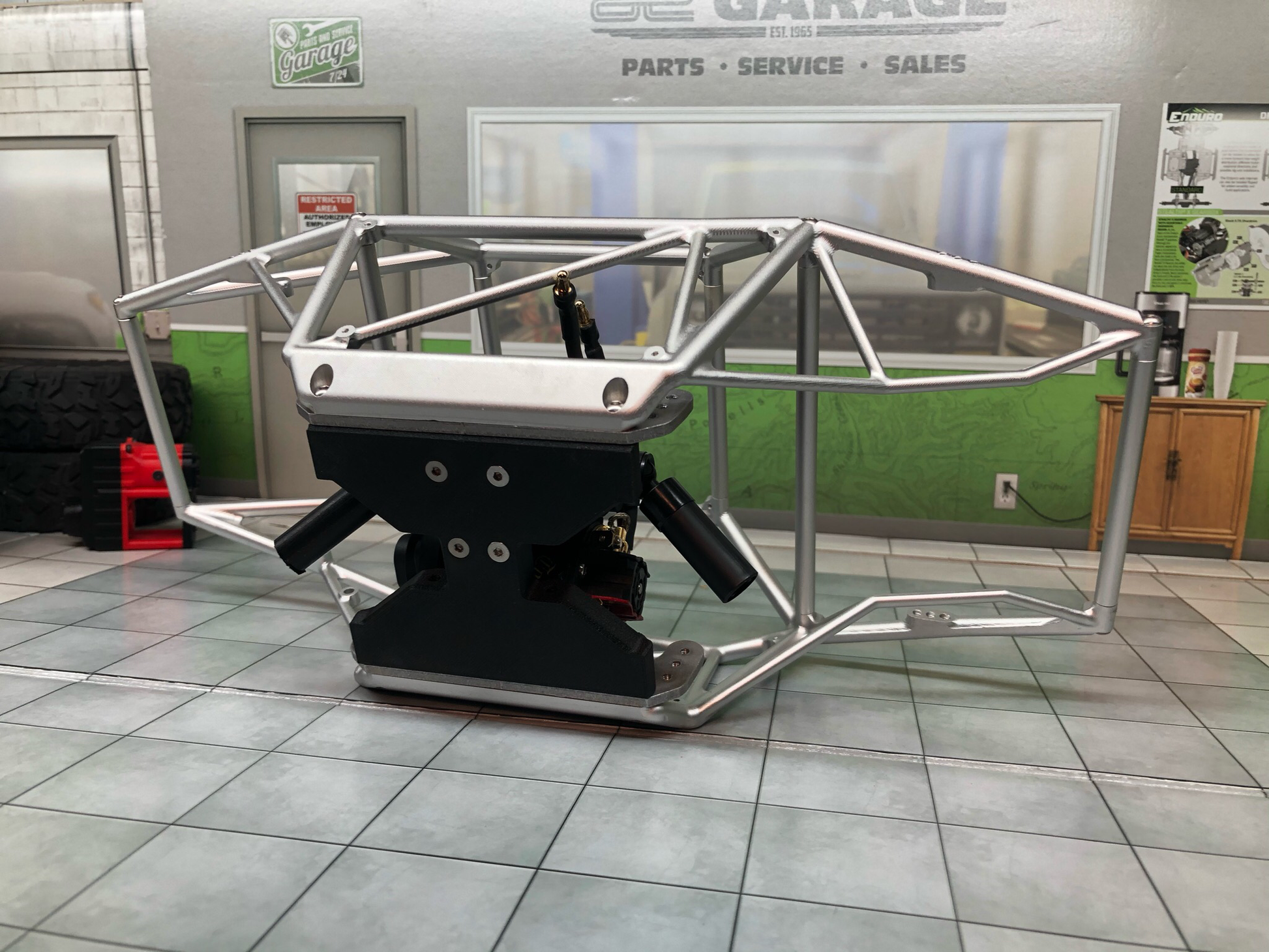

Update: DEC 2021: Added Skids for - TGH 2 Low Transmission, Delux Cheese Burger Transmission, Blank, and works with Super Shafty Chupa Capra Cage

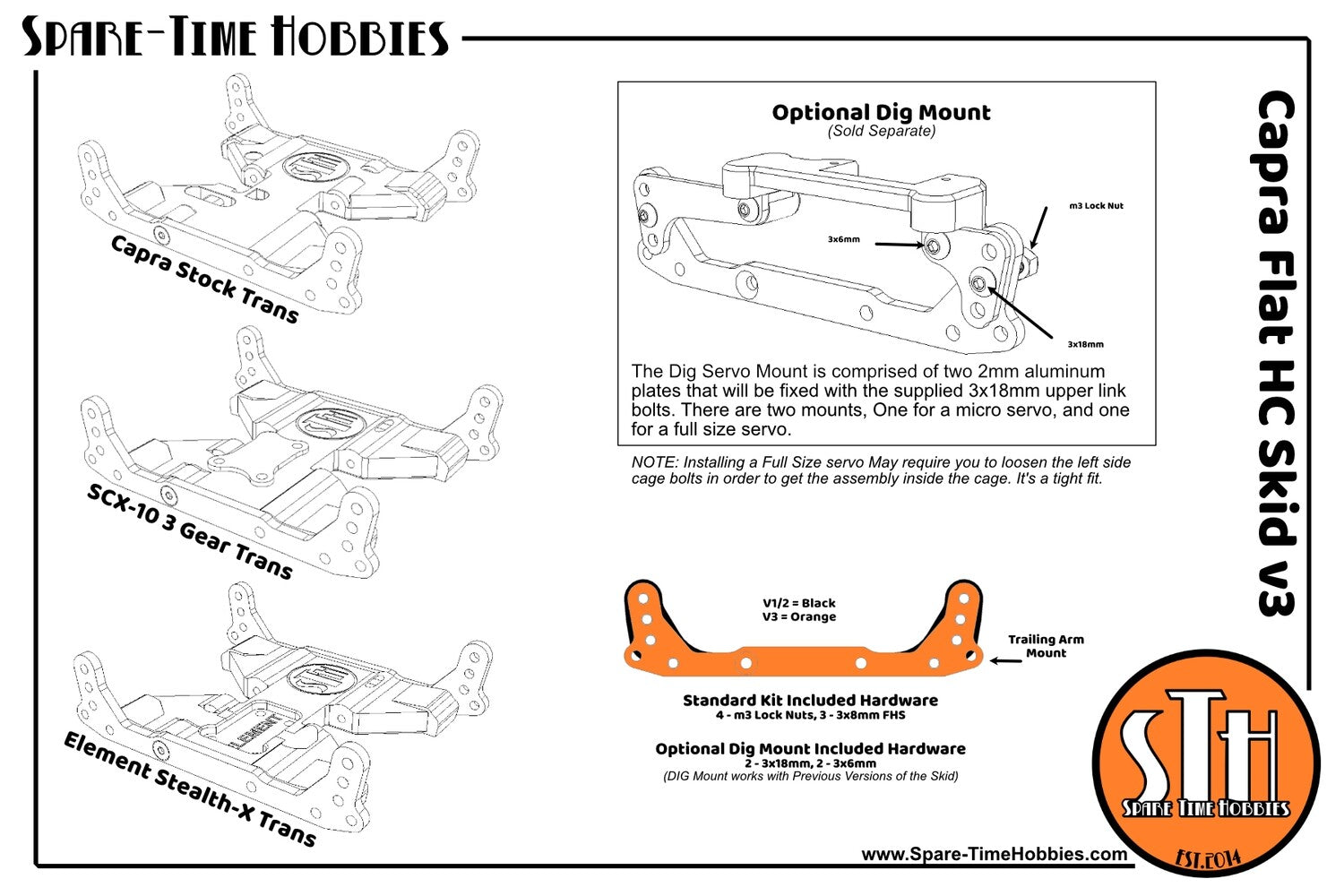

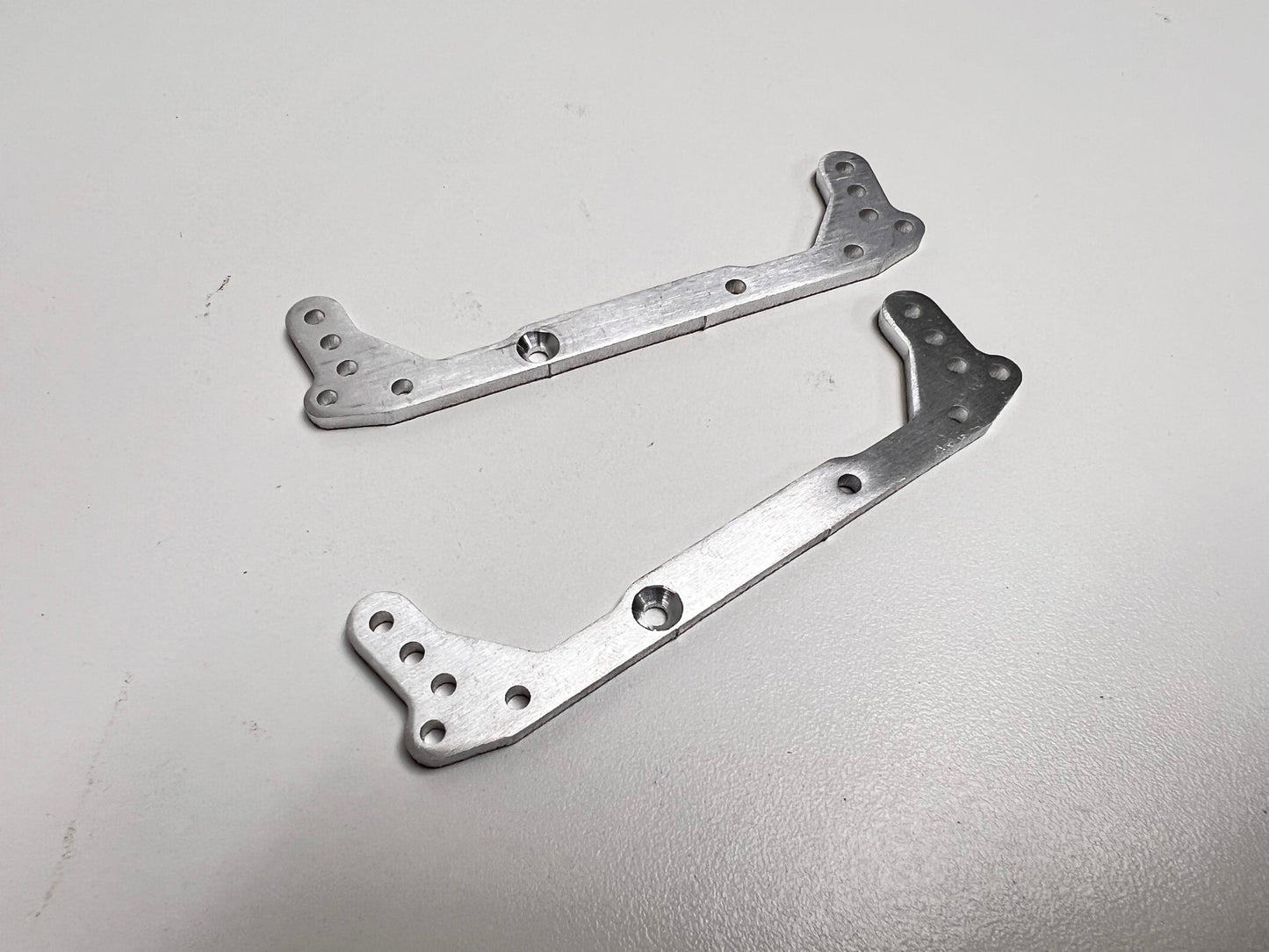

v3 Release: Version three has added two lower lower mounting holes on the spine to provide the ability to use ether trailing arms or an additional upper link mounting position if used with bent links. Secondly, I have redesigned the dig servo mount and made it an add on option to allow those with earlier versions of skid to purchase the upgraded dig mount. Overall price of the skid has been reduced to accommodate for the change. The new dig mount will consist of two 2mm aluminum tabs, hardware, and a full/micro servo printed mounting bracket. Finally the spin has been slightly modified for look. The original servo mount bracket will be available as a free down-load should you wand to print your own mounts.

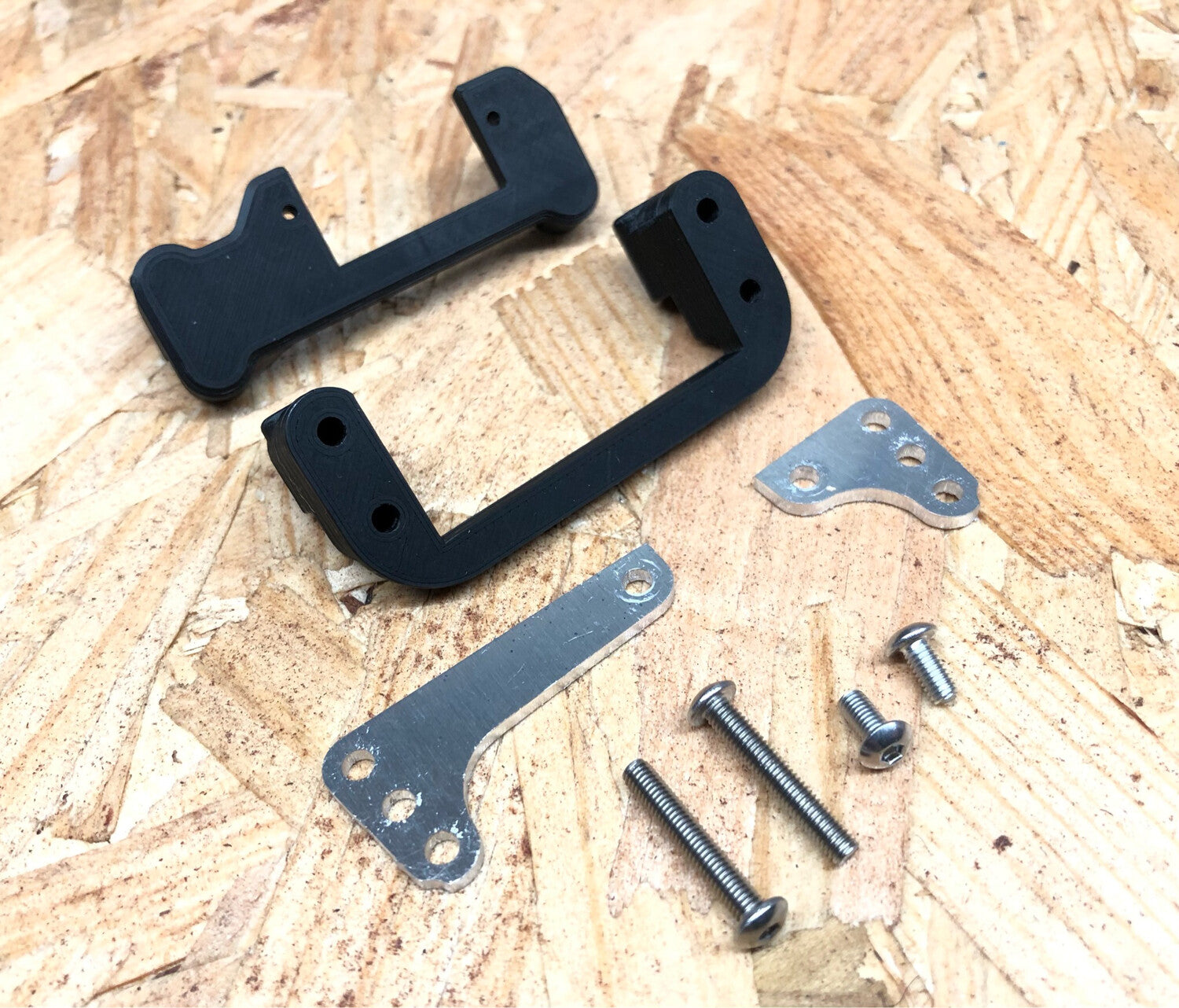

Servo Bracket Only - You will receive: 2mm Aluminum Mounting Tabs, 2 - 3x6mm, 2 - 3x18mm, Printed Micro Bracket, Printed Full Size servo Bracket.

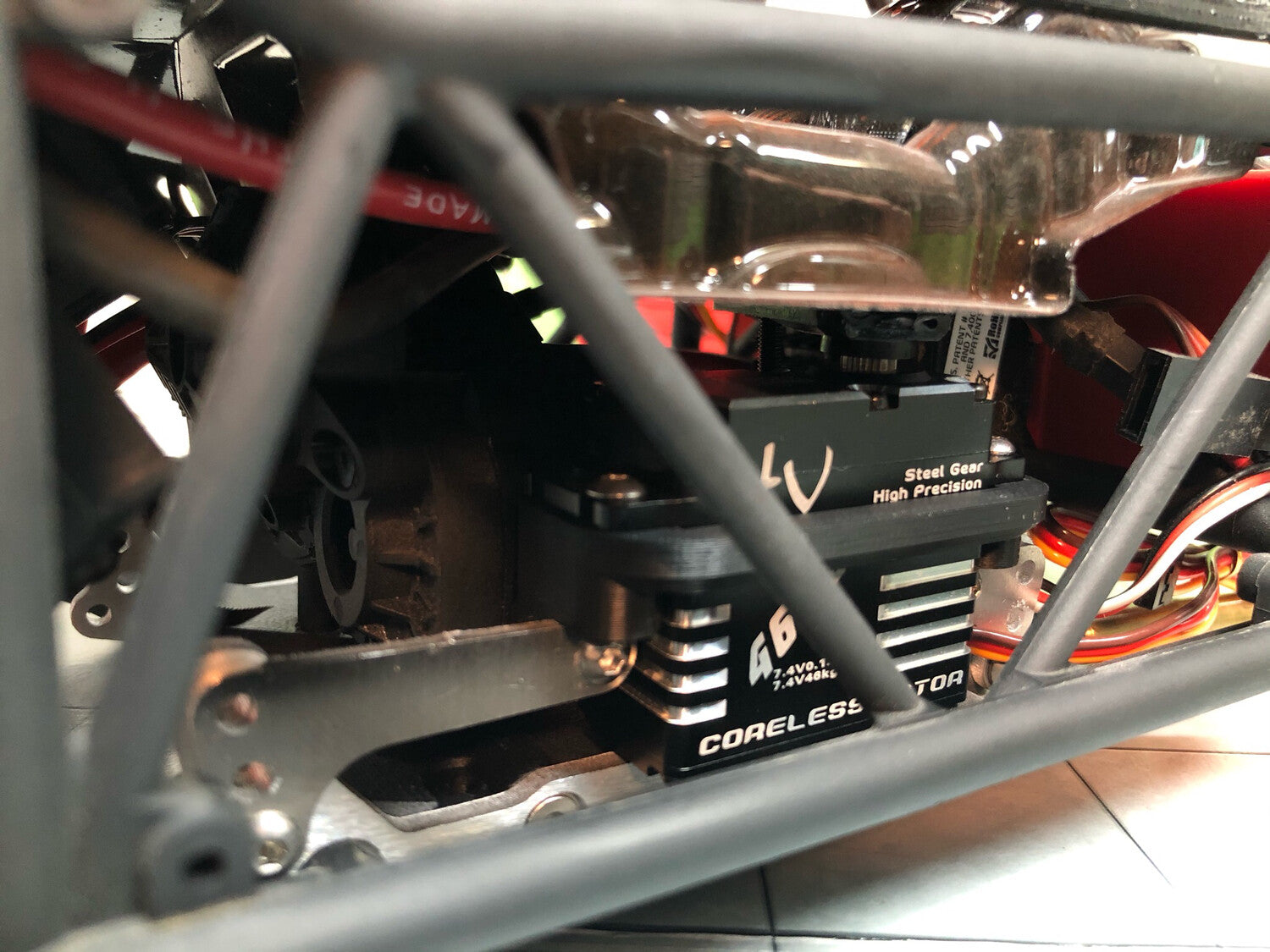

I have redesigned the dig servo mount and made it an add on option to allow those with earlier versions of skid to purchase the upgraded dig mount. Overall price of the skid has been reduced to accommodate for the change. The new dig mount will consist of two 2mm aluminum tabs, hardware, and a full/micro servo printed mounting bracket
NOW WORKS WITH THE ELEMENT RC STEALTH OD Transmission

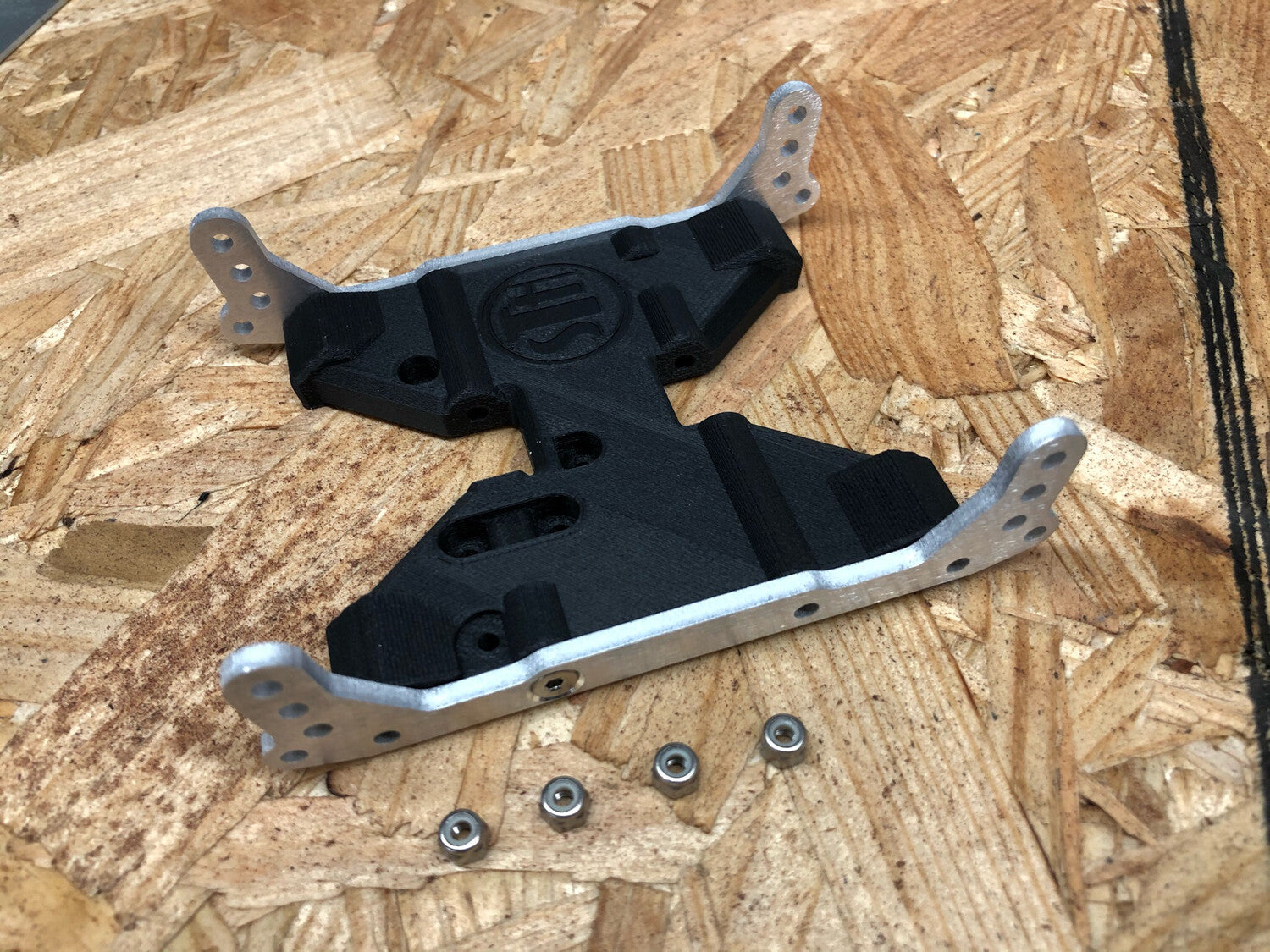

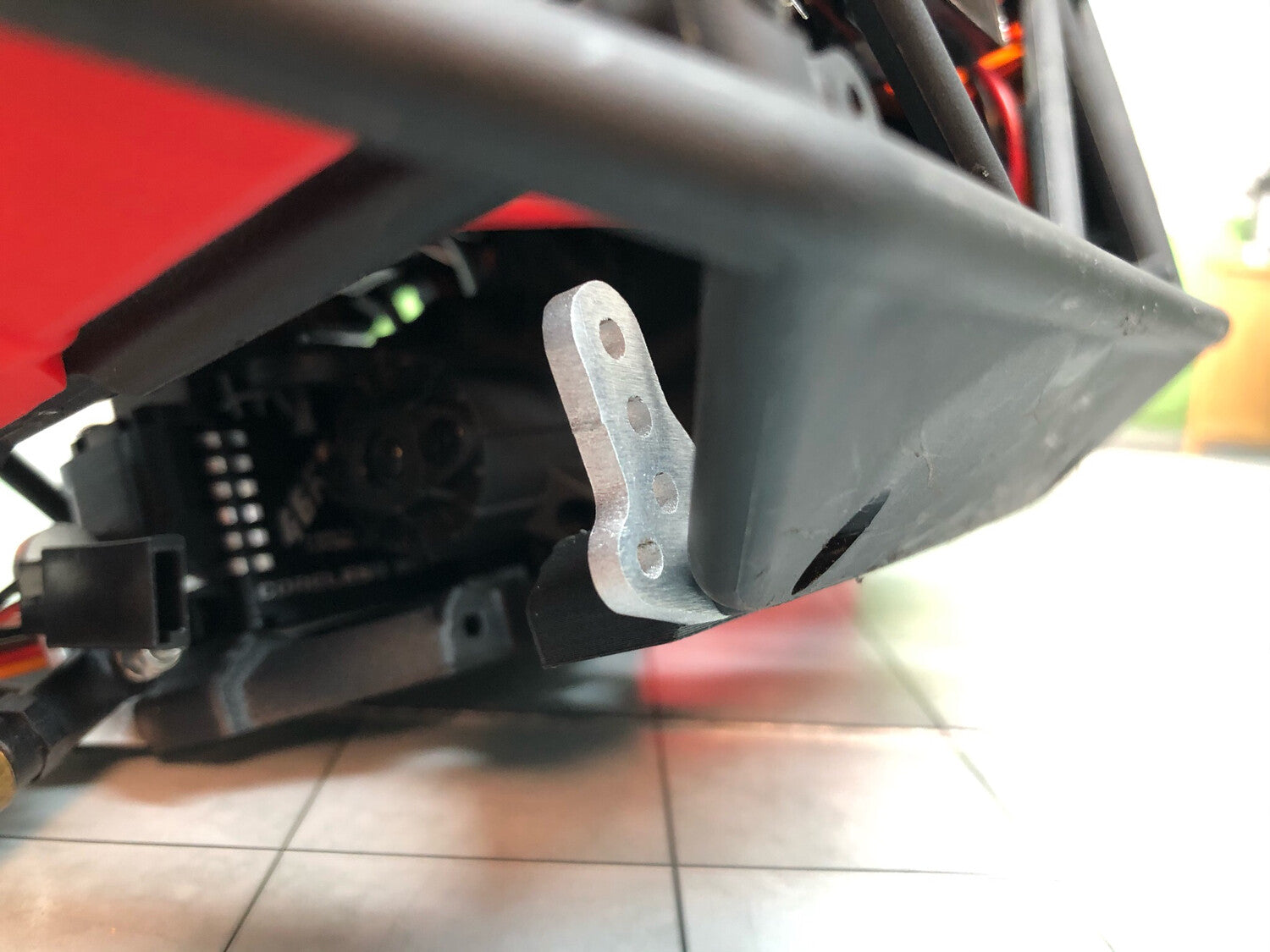

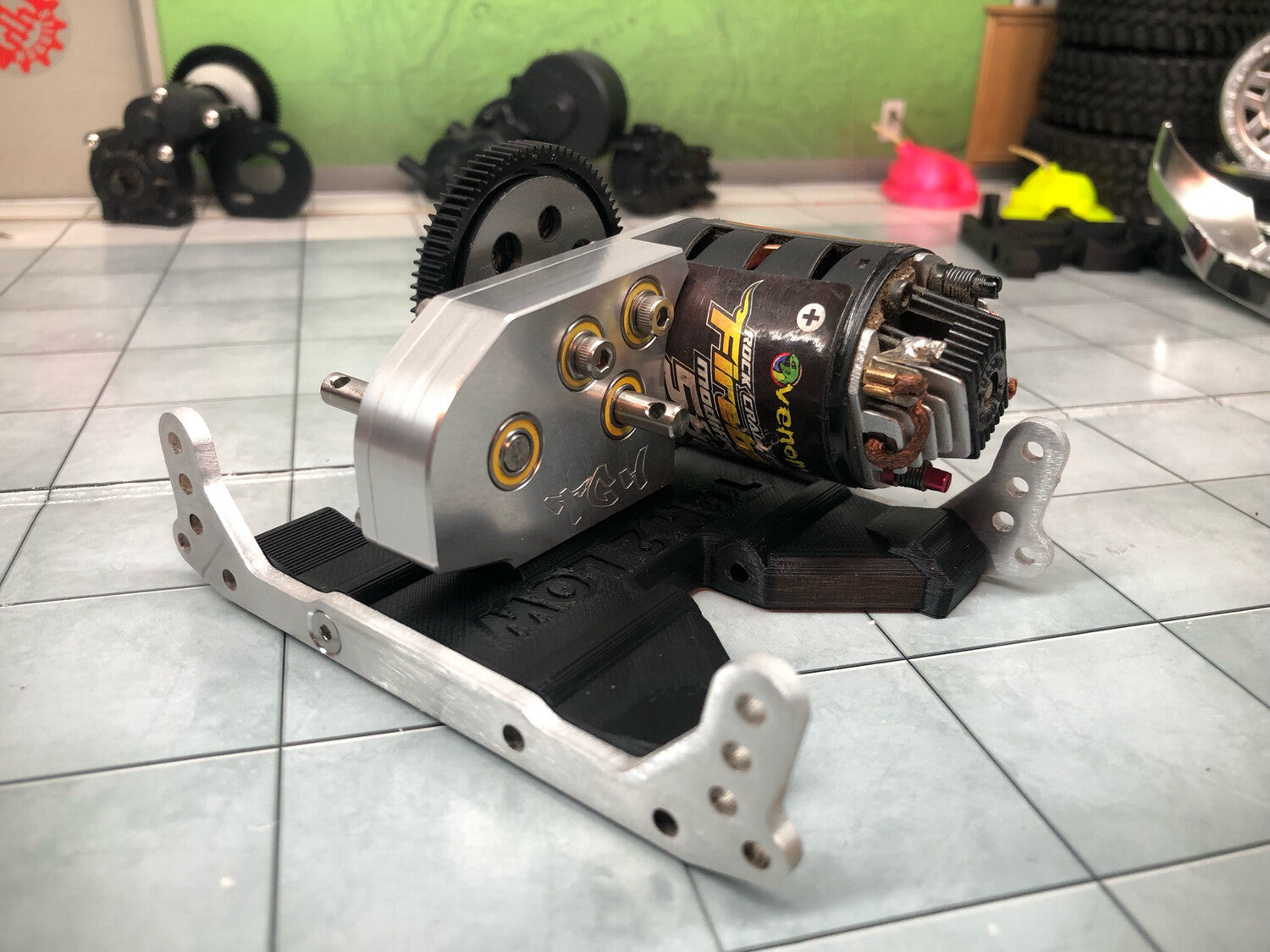

v2 Release: Version Two of the Skid remove the printed portion of the link riser. We have found the printed portion of the link riser to be not required and also limits motor option with the Capra transmission. In lue of the printed link riser, we have included 4 Lock nuts to secure the upper link bolts. We have also made the SCX-10 transmission skid match the Capra Skid by securing the spines with a 3x8mm Counter Screw to make the install easier. Hardware is now included with skids. The rear shifter mount has been redesigned to make it easier to mount regardless of which mount hole you are using for the upper links.

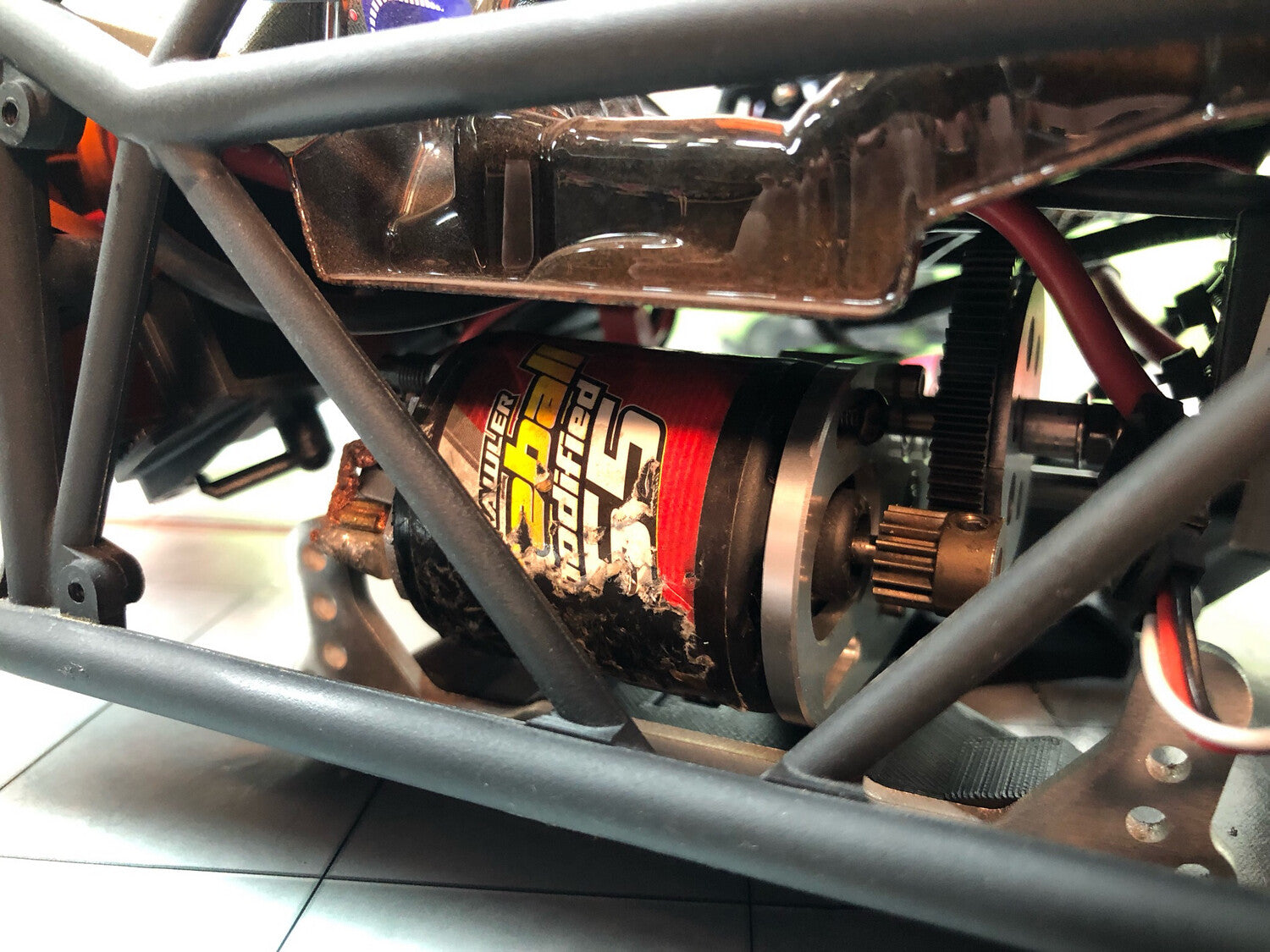

Note: 550 MOTORS DO NOT FIT (Includes HW Fusion)
*** All orders will be shipped with v2 skids starting: 12 May 2020 *** (unless your order has already been produced).
Aluminum parts will be RAW in color.

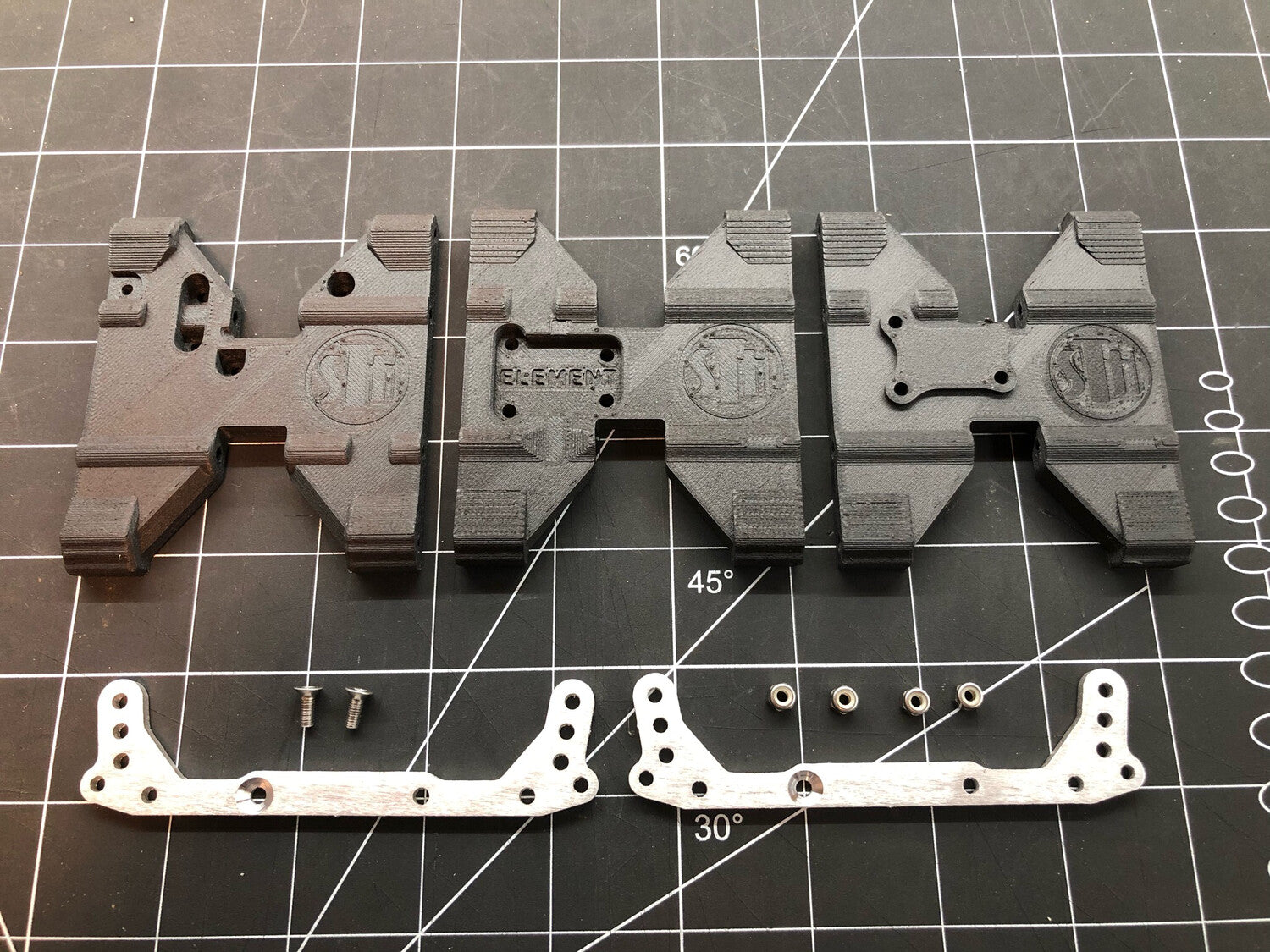

| NAME |
TRANS/MOTOR
|
DESCRIPTION |

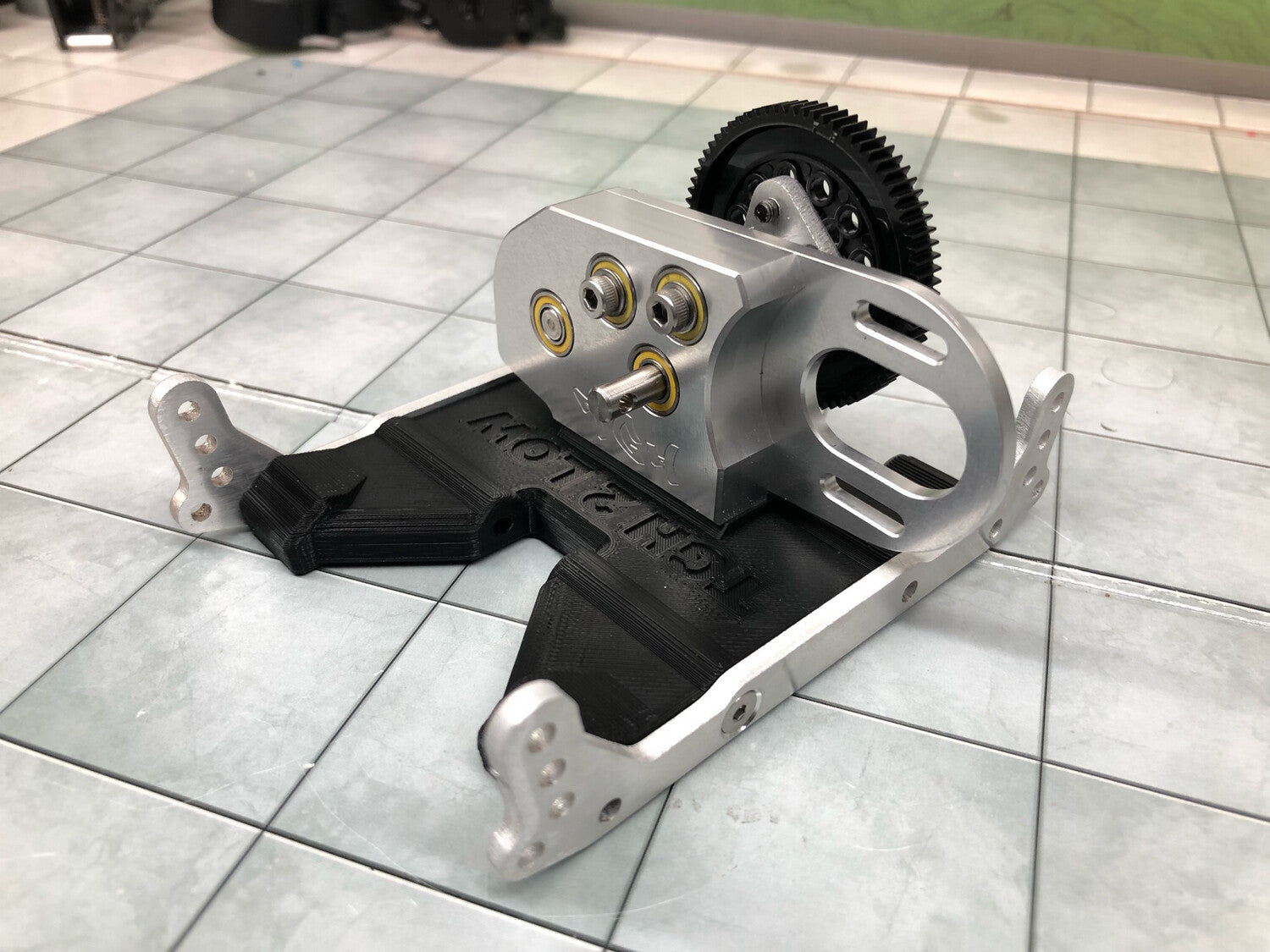

| v3 Capra "Spine" SCX-10 |
SCX-10
3 Gear/540 Motor |

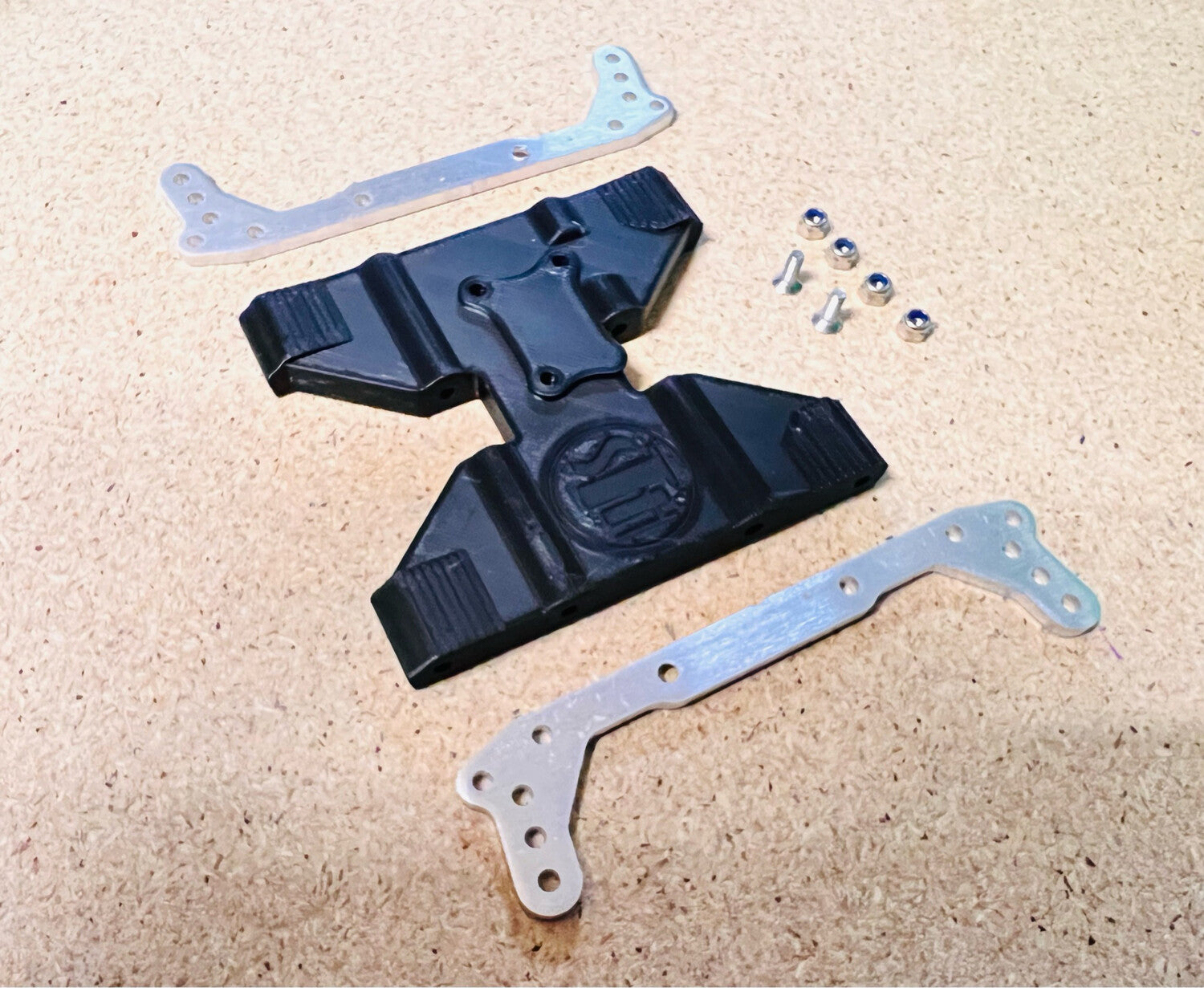

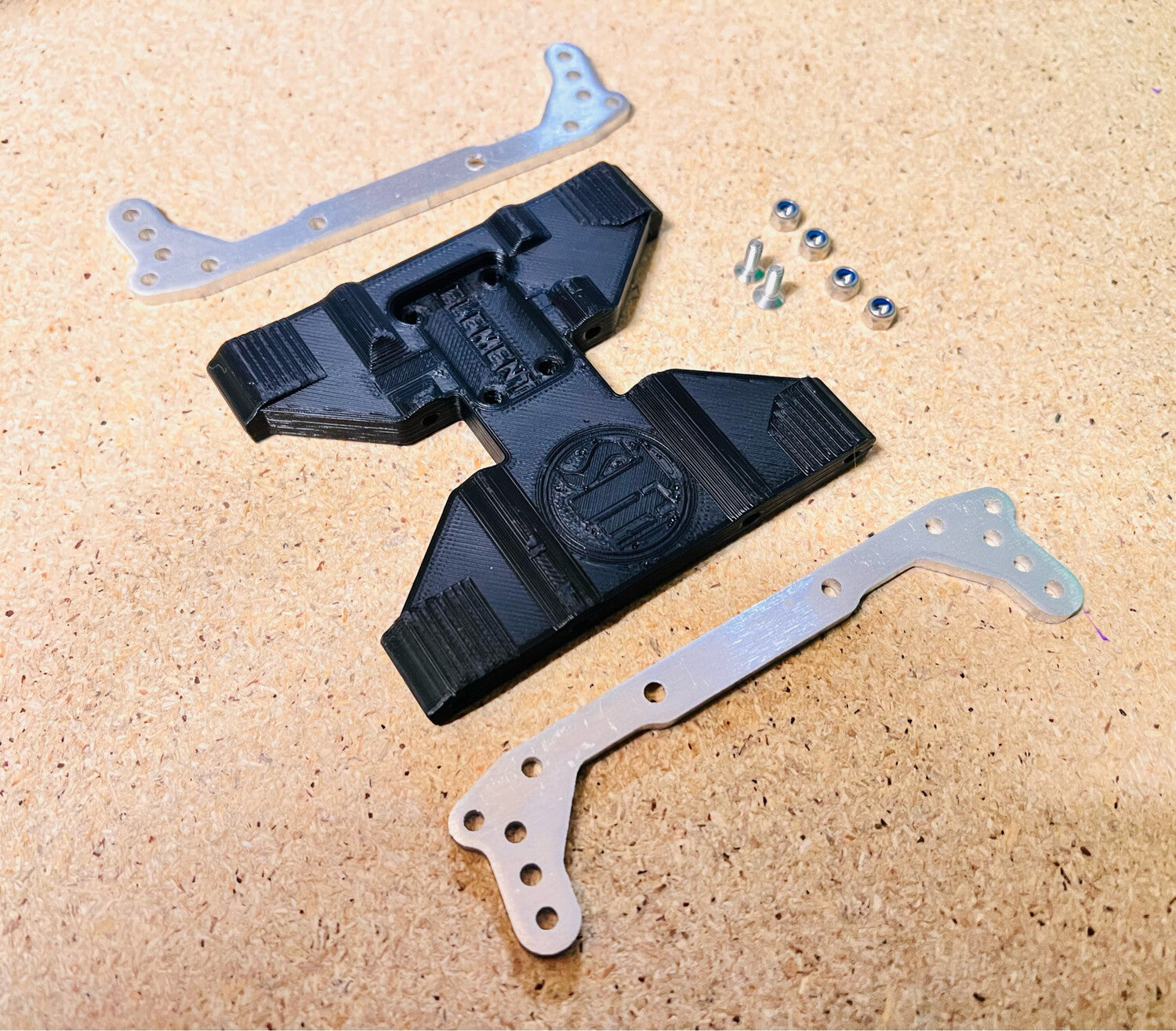

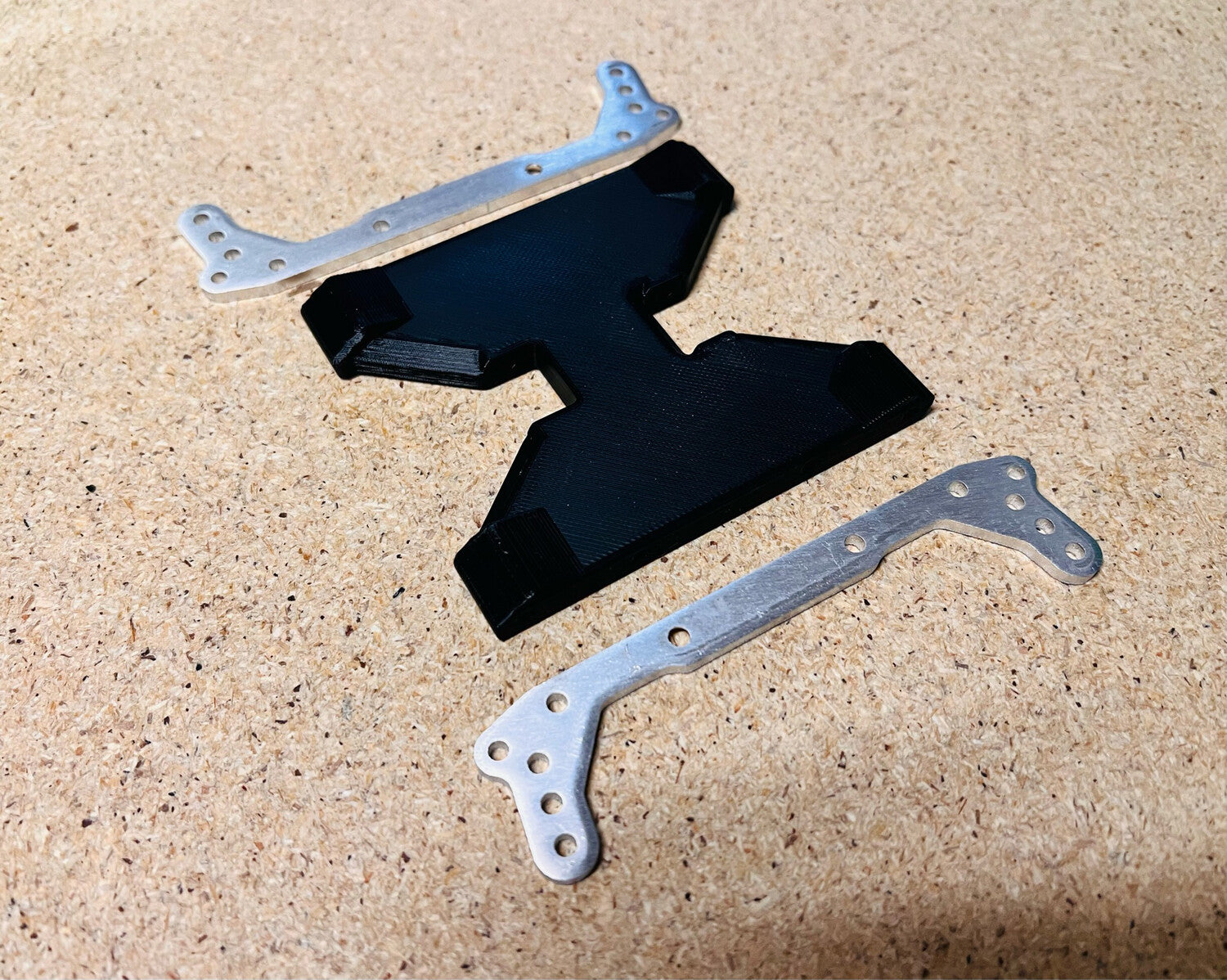

Flat bottom Skid accepting a stock SCX-10 Transmission
2 - 3x8mm Counter, 4 - m3 Locknuts |
| v3 Capra "Spine" Stealth X (Element) |
Element RC Stealth X OD Transmission/540 Motor |
Flat bottom Skid accepting a stock Element RC Stealth X Transmission
2 - 3x8mm Counter, 4 - m3 Locknuts |
| v3 Capra "Spine" tri/Shifter |
Capra Dig
540 Motor |

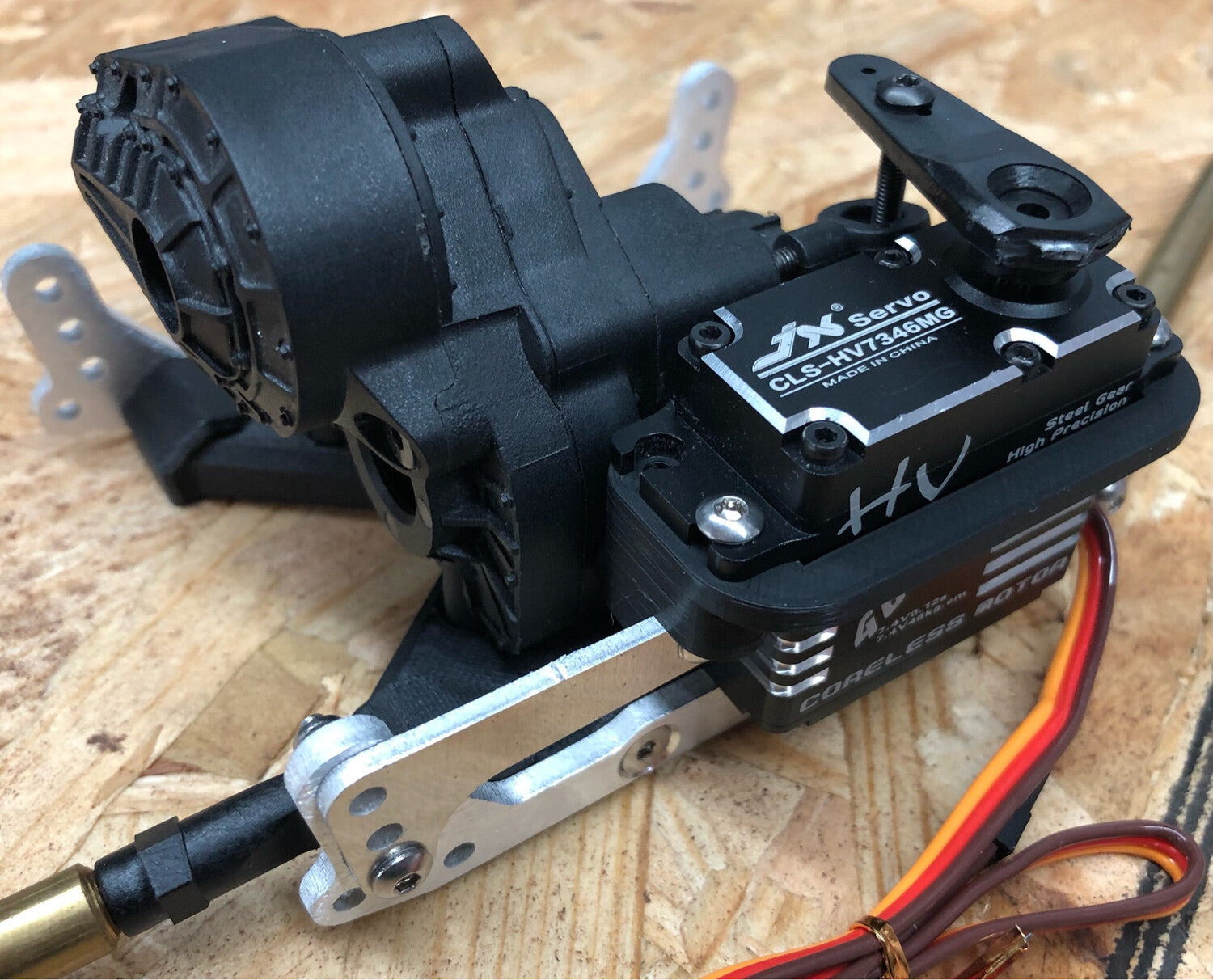

Flat bottom Skid accepting the stock transmission with available shifter servo options for micro and full-size dig servo
2 - 3x8mm Counter, 4 - m3 Locknuts |
IMPORTANT: Do not use power drivers on 3D printed parts. Over tightening printed parts can cause premature cracking and crushing. Always ensure you hardware will not bottom out in the screw pocket. This can also cause at 3D printed part to break prematurely.
Printed Parts - These parts will be printed in Black (Unless otherwise requested) using advances slicing methods for maximum strength. All 3D printed parts come with a lifetime replacement guarantee. If you break a part, simply send us a photo and your order number. The photo is simply to evaluate for common issues and help identify potential improvements to existing designs.
Contact us @ Sales@spare-timehobbies.com or PM us @ Spare-Time Hobbies on Face Book.
