SSD RC SCX10 II Pro44 Rear Axle Case

The SSD SCX10 II Pro44 Rear Axle Case is the first of its kind. A hybrid design featuring a plastic center pumpkin, with heavy metal axle tubes, this axle weighs in at 100 grams for just the axle assembly alone and will help to increase unsprung weight for increased stability and improved overall performance. It is a direct upgrade for the AR44 axle housing, and eliminates the rear lockouts for a more scale appearance.

Features:

• Scale design and assembly
• Injection molded nylon main axle housing
• Removable heavy metal axle tubes
• Removable diff cover
• Metal bearing holders
• Same size as stock SCX10 II AR44 axle
• Same link mount locations as stock SCX10 II axle
• Compatible with stock SCX10 II axle gears, bearings and shafts
• Fit stock SCX10 II AR44 axle lower link mounts
• Direct fit onto SCX10 II chassis
• Weight: 100g (with no internals)

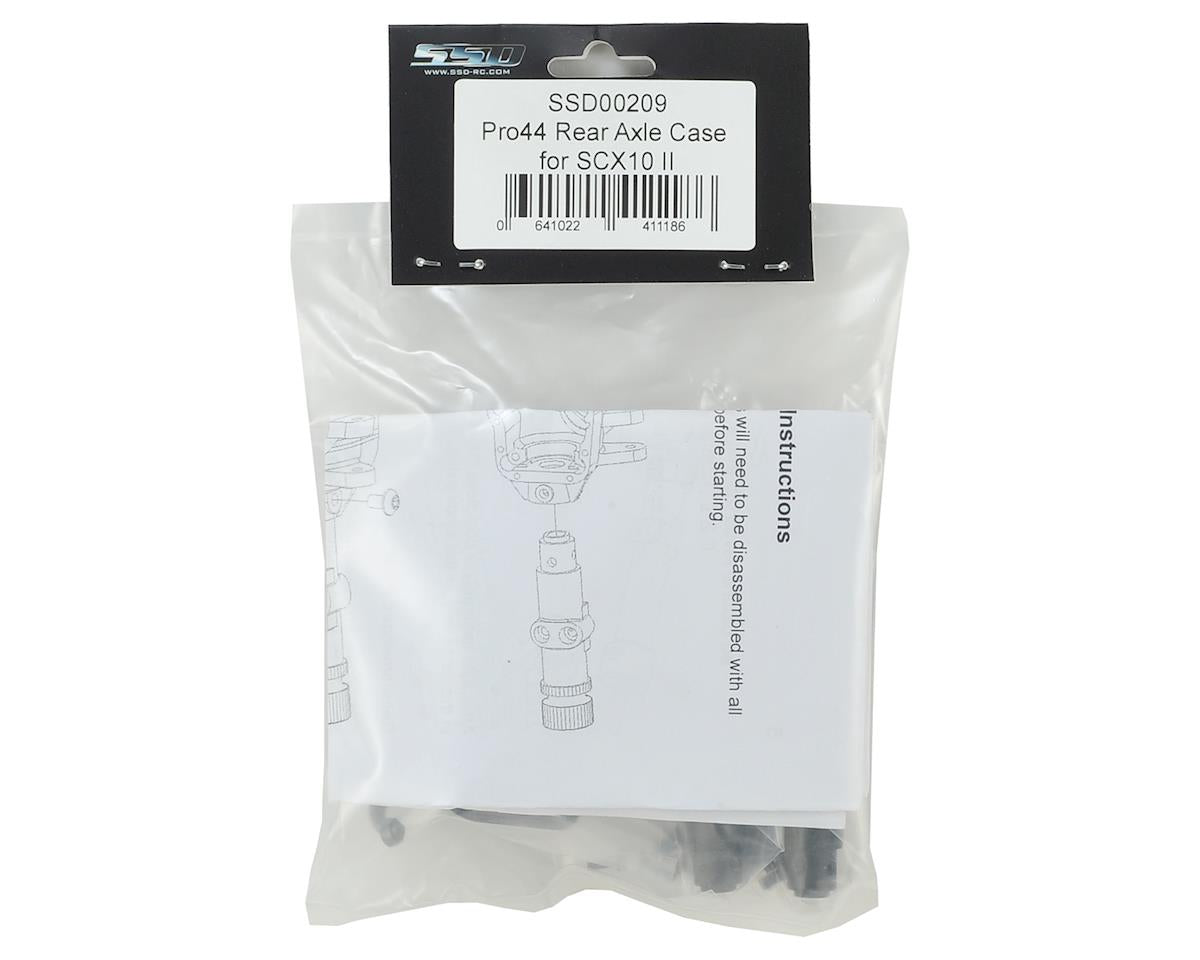

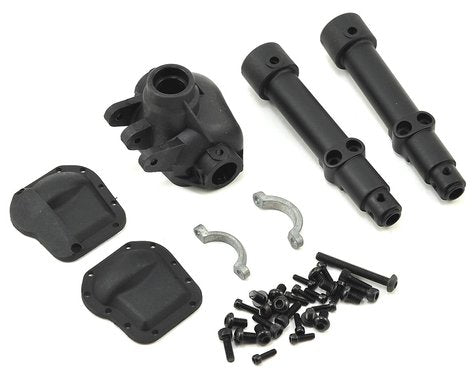

Includes:

• (2) Axle tubes
• (2) Bearing holders
• (2) Diff covers
• (10) M2 x 5mm cap head
• (4) M2.5 x 8mm cap head
• (8) M3 x 5mm button head
• (2) M3 x 4mm button head
• (1) M3 x 25mm button head

NOTE:

• Matching front axle is available (SSD00207)
• Aluminum link mounts are available (SSD00159)
• Download instructions from resources tab above
