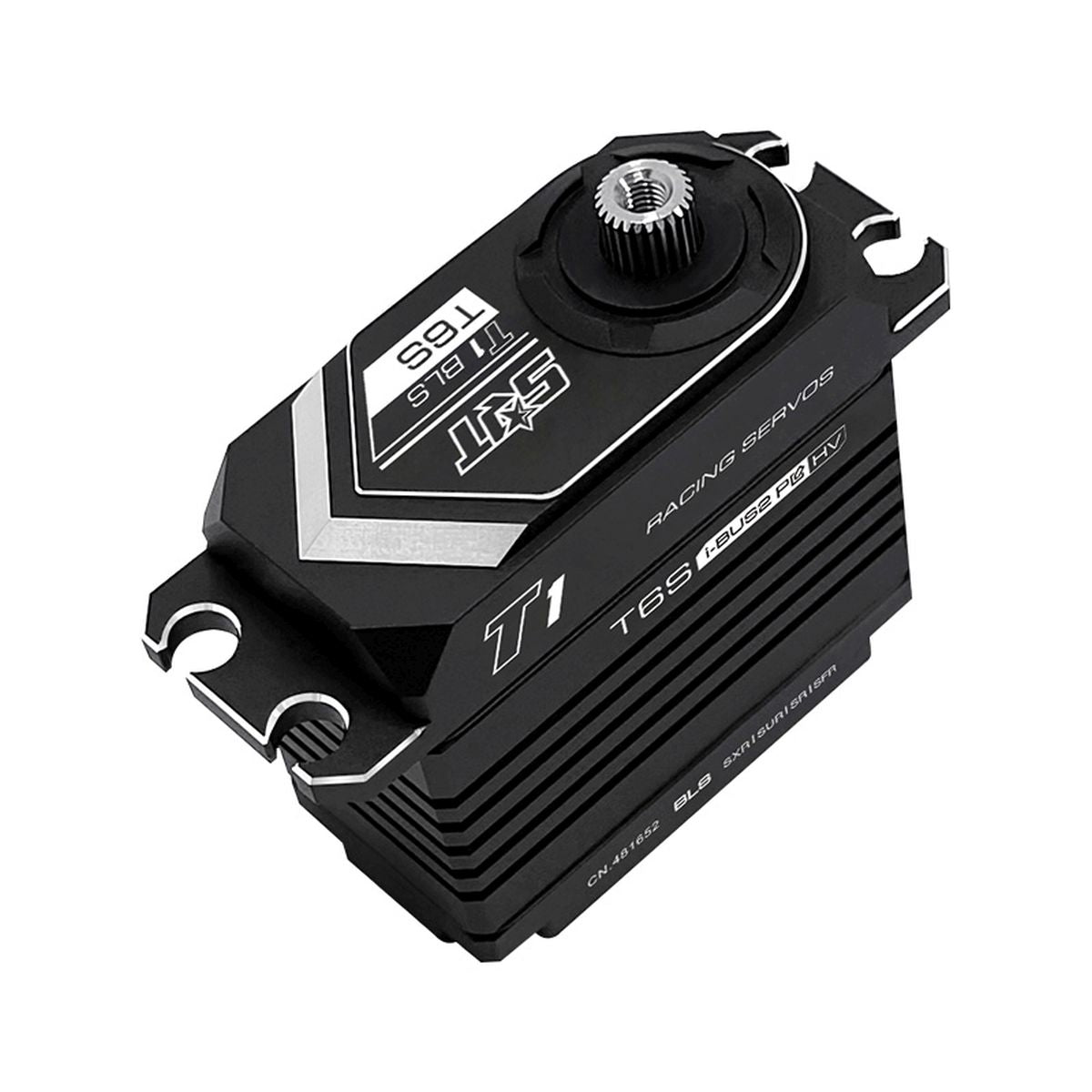

Standard HV Brushless Digital Servo, .085sec / 805.5oz @ 8.4V

Standard HV Brushless Digital Servo, .085sec / 805.5oz @ 8.4V

The latest generation of SRT servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. They are standard-size servos for High-Voltage applications up to 8.4V. Featuring SRT innovations like all-metal servo mounting tabs to keep them in place through the most extreme conditions, SRT servos will fit most any application.

Features:
Ideal for 1/8 on-road and 1/5 off-road scale applications
Superior Holding Torque
Incredible efficiency and low power consumption
Standard dimensions make it perfect for vehicles that can benefit from a high-quality servo
CNC-machined aluminum case for exceptional cooling
Programmable high-torque brushless servo
Supporting SXR, SUR, SR, SFR multiple ultra-high-speed modes
25T output shaft
2 usec Dead Band
1-Year Limited Warranty

Specifications:
Type: Digital
Bearing: Dual
Motor Type: Brushless

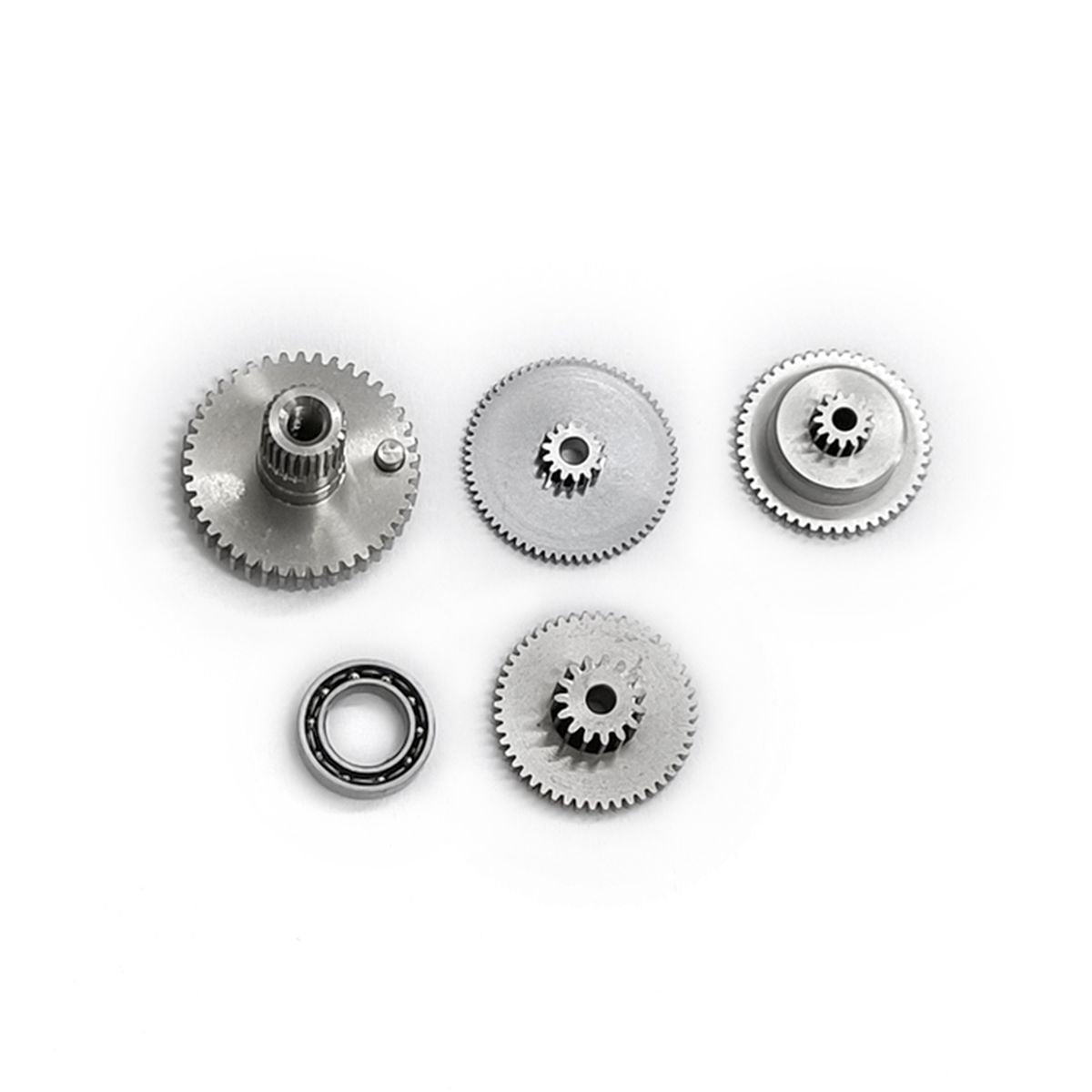

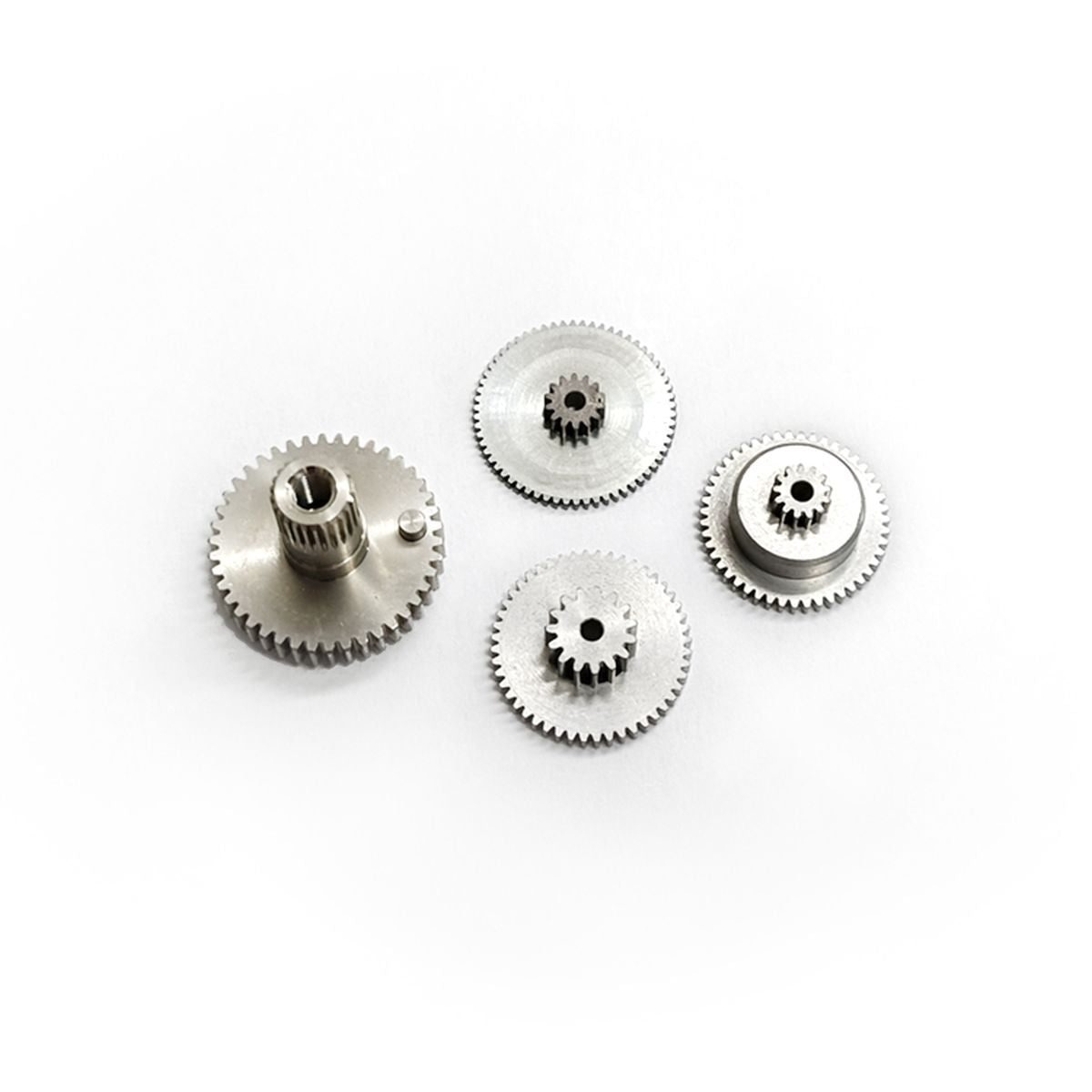

Gear Type: Metal
Gear Material: Steel
Control System: Pulse Width Control
Working Frequency: 1520us / 330hz
Operating Voltage: dc6.0-8.4v
Operating Temperature Range: -10 to + 60 degree
Operating Speed (6.0v): 0.092 sec/60 degrees at no load
Operating Speed (7.4v): 0.090 sec/60 degrees at no load
Operating Speed (8.4v): 0.085 sec/60 degrees at no load
Stall Torque (6.0v): 39.0kg.cm (541.6 oz/in)
Stall Torque (7.4v): 48.0kg.cm (666.6 oz/in)
Stall Torque (8.4v): 58.0kg.cm (805.5 oz/in)
Potentiometer Drive: Direct drive

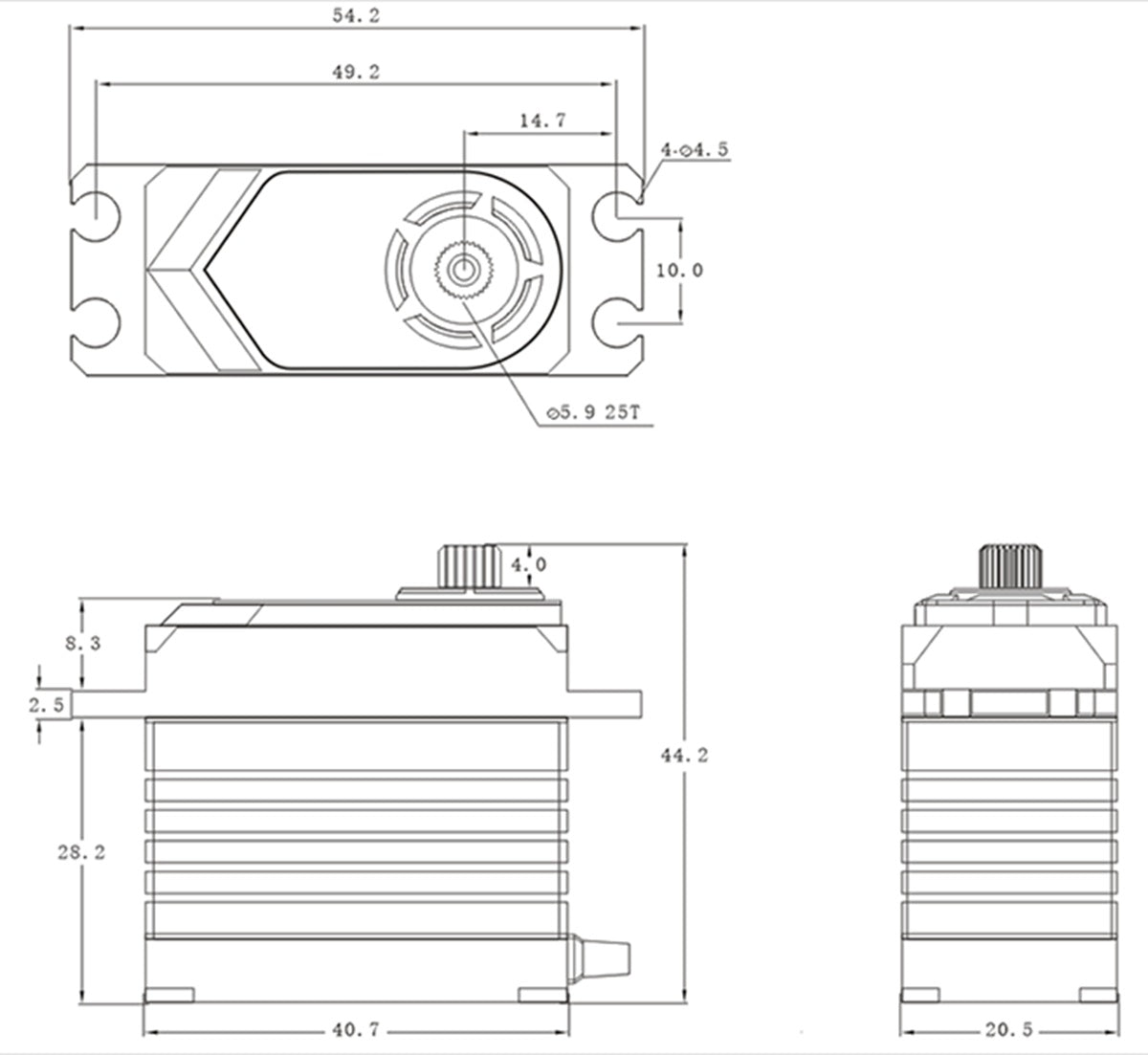

Dimensions: 40.7x20.5x39.0 mm /1.60x0.81x1.54 in
Weight: 83.0g (2.93 oz)
Connector Wire Length: jr 300 mm
