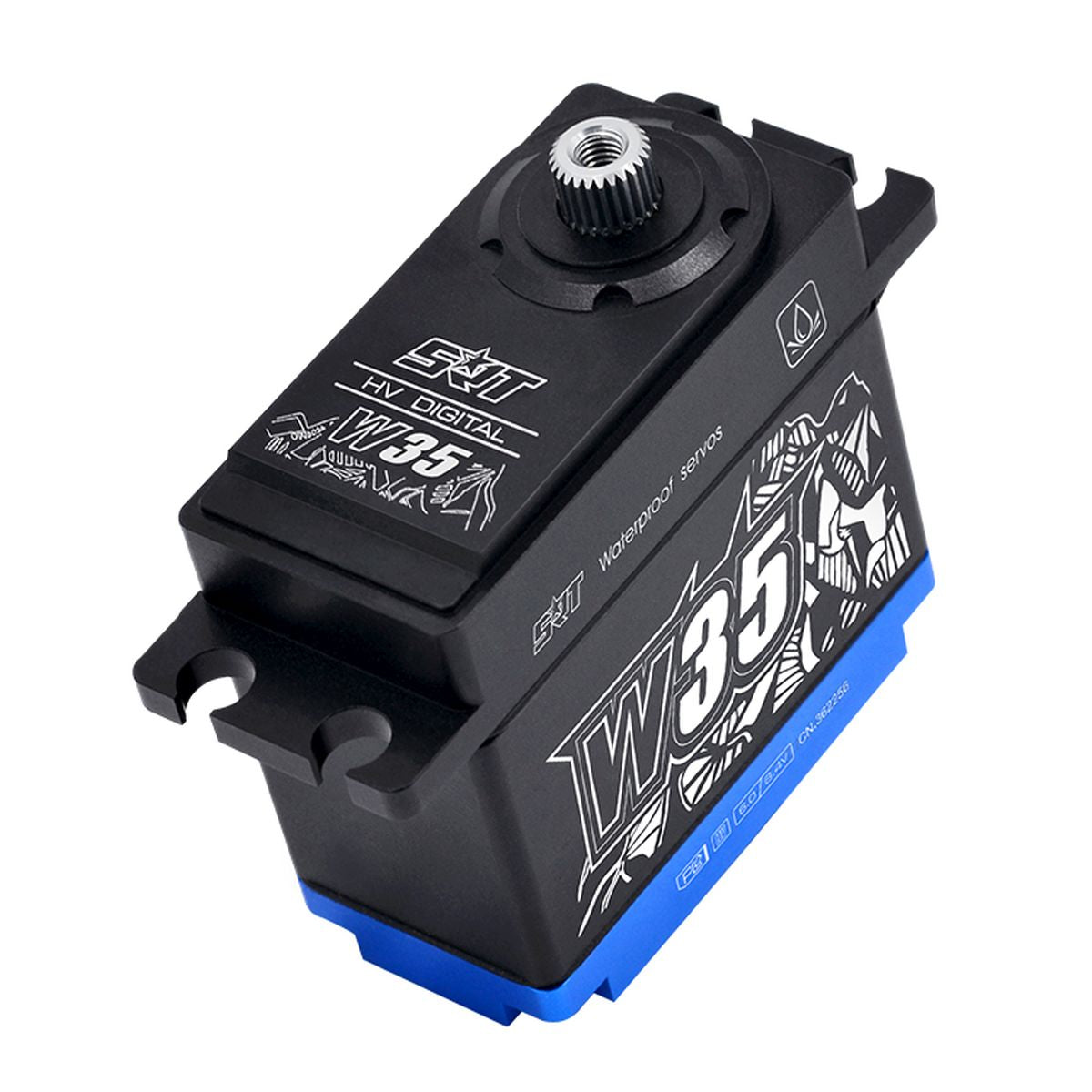

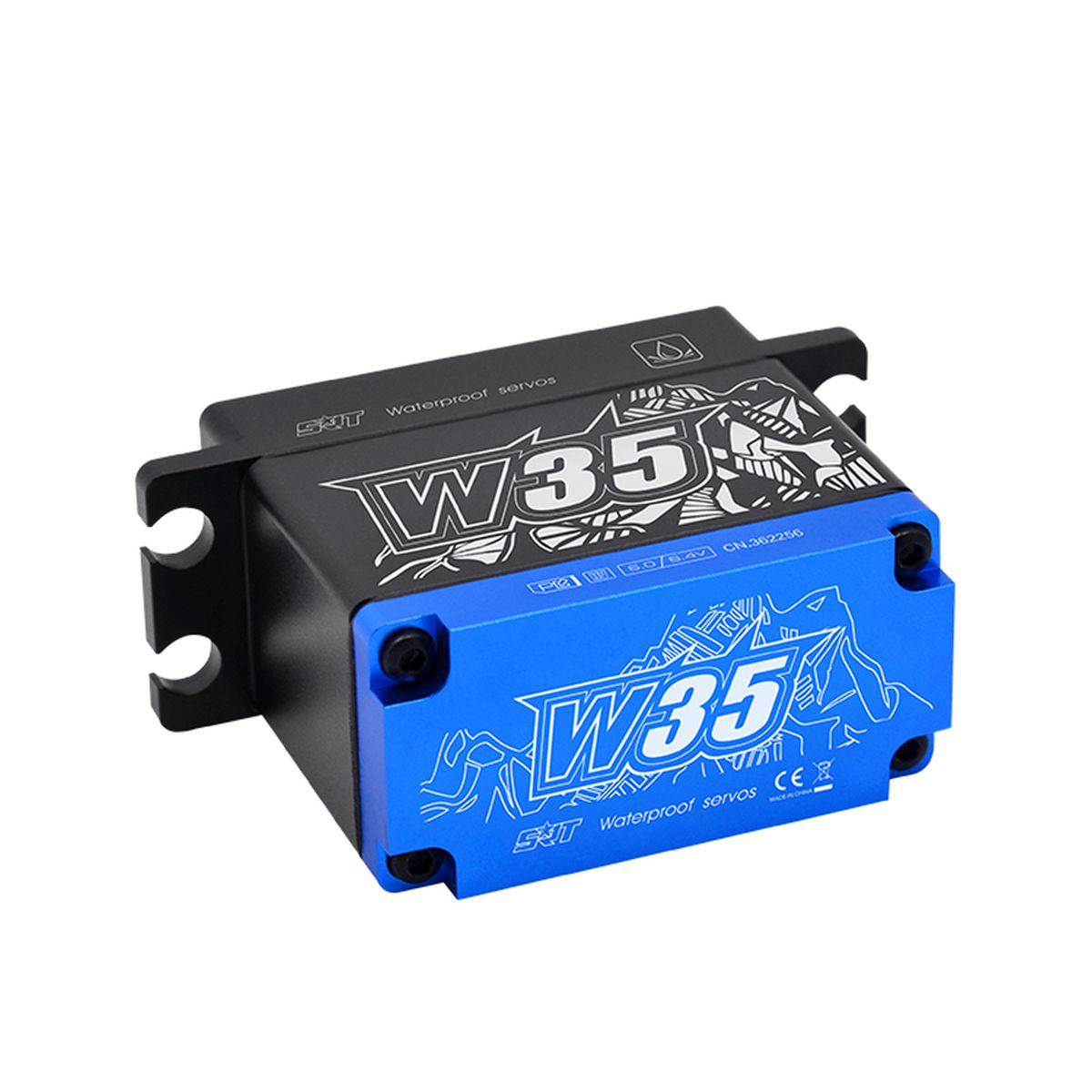

Standard HV Coreless Waterproof Servo, .10sec / 486.1oz @ 8.4V

Standard HV Coreless Waterproof Servo, .10sec / 486.1oz @ 8.4V

The latest generation of SRT servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. They are standard-size servos for High-Voltage applications up to 8.4V. Featuring SRT innovations like all-metal servo mounting tabs to keep them in place through the most extreme conditions, SRT servos will fit most any application.

Features:
Standard dimensions make it perfect for vehicles that can benefit from a high-quality servo
CNC-machined aluminum case for exceptional cooling
NMB dual main bearings
25T output shaft
HD 4096 Resolution
2 usec Dead Band
1-Year Limited Warranty

Specifications:
Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Titanium & Steel
Control System: Pulse Width Control
working frequence: 1520Is / 330hz
Operating Voltage: dc6.0-8.4v
Operating Temperature Range: -10 to + 60 degree
Operating Speed (6.0v): 0.15 sec/60 degrees at no load
Operating Speed (7.4v): 0.12 sec/60 degrees at no load
Operating Speed (8.4v): 0.10 sec/60 degrees at no load
Stall Torque (6.0v): 25.0kg.cm (347.2 oz/in)
Stall Torque (7.4v): 30.0kg.cm (416.6 oz/in)
Stall Torque (8.4v): 35.0kg.cm (486.1 oz/in)
Potentiometer Drive: Direct Drive

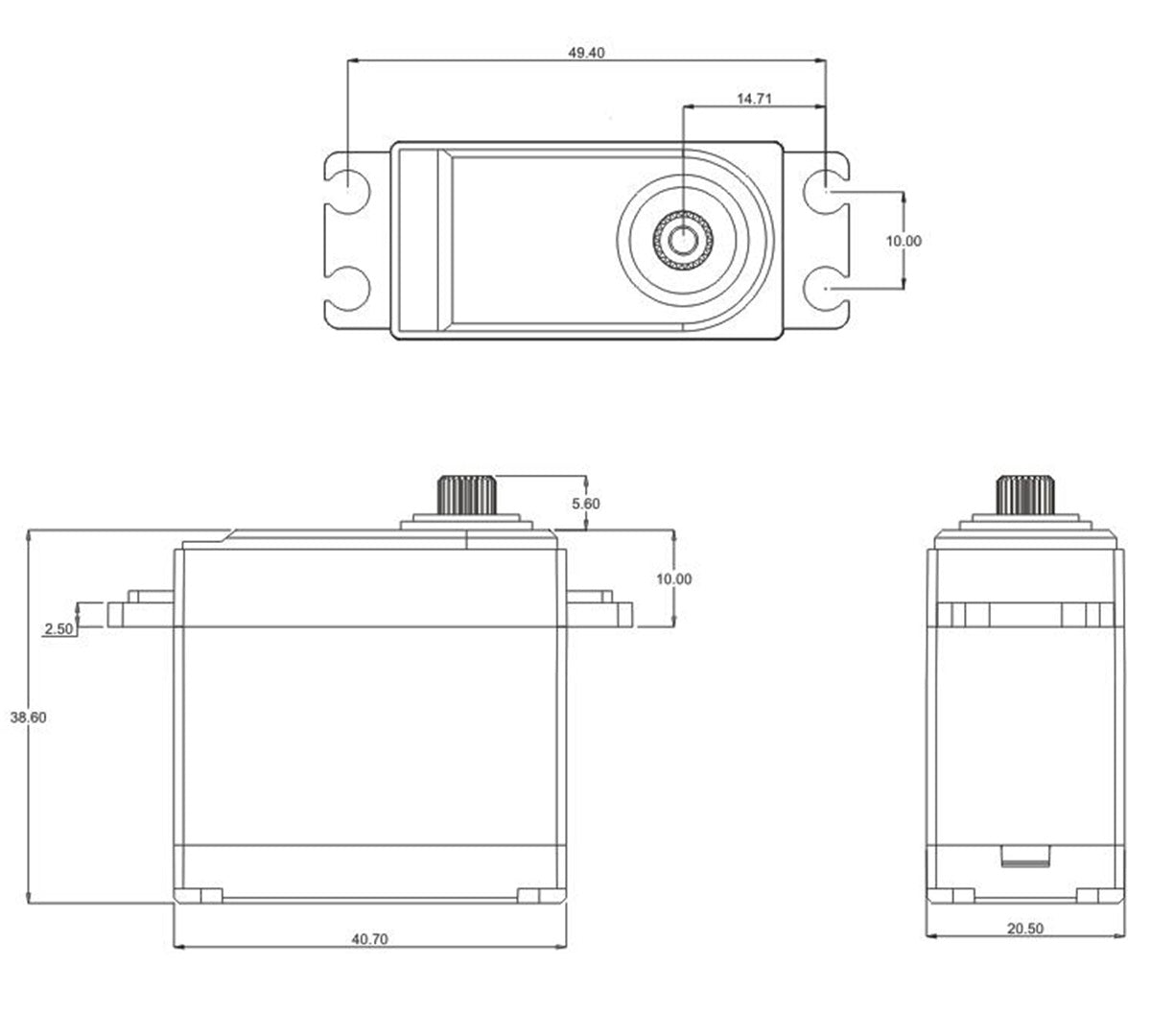

Dimensions: 40.7x20.5x38.6 mm /1.60x0.81x1.52 in
Weight: 82.5g (2.91 oz)
Connector Wire Length: jr 360 mm
