If you're tired of the stock X-Maxx cush drive spur gear system, you've come to the right place. Our 8mm Spur Shaft for the Traxxas X-Maxx makes it easy to switch to standard, readily available 8mm pinions as spur gears, giving you plenty of options for Mod 1 and Mod 1.5 gears. Installation is quick and easy whether you are running the stock motor and mount or our aftermarket motor mount setup.
Note: you must supply your own gears.

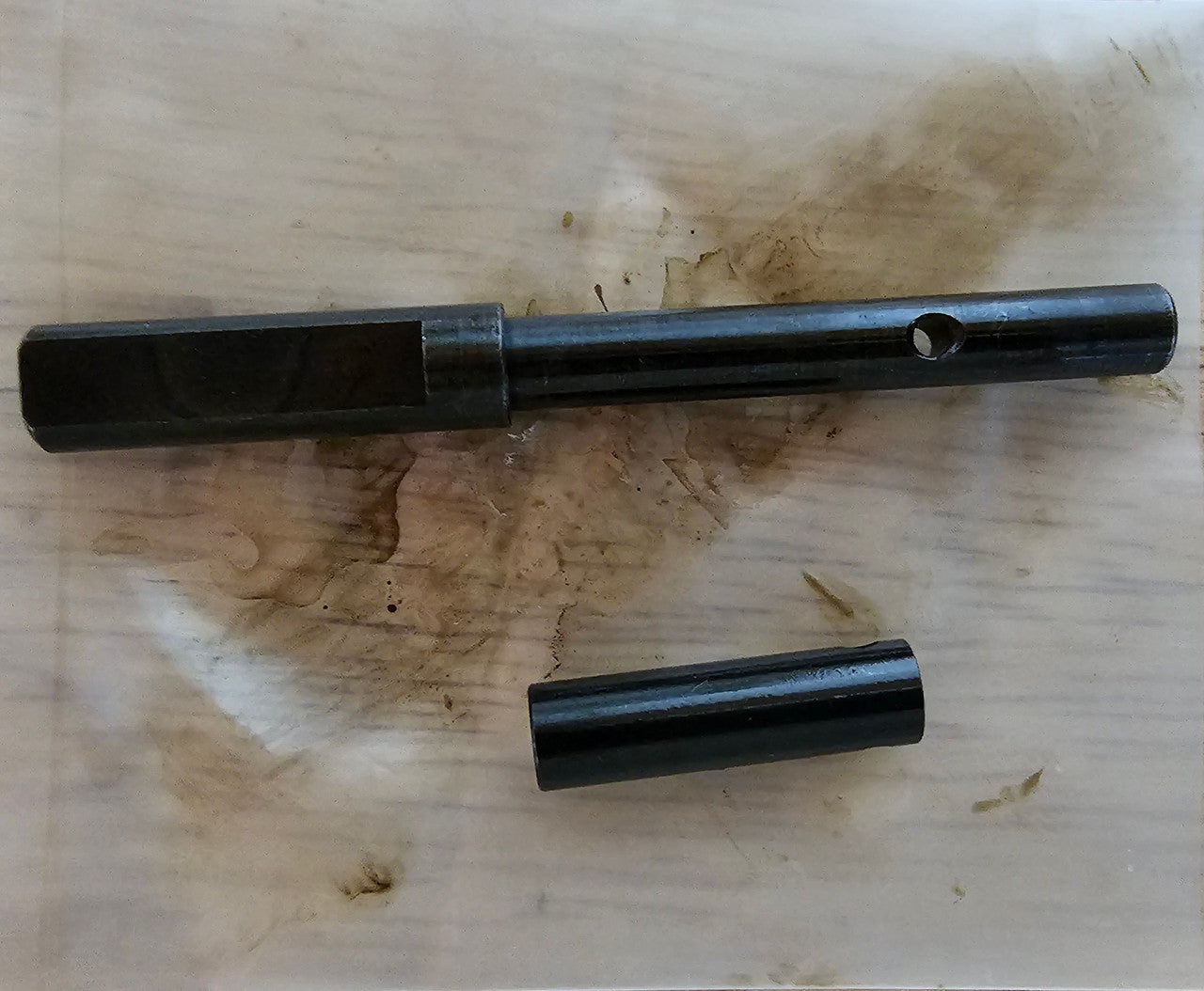

INCLUDES
1x 8mm spur shaft
1x Steel sleeve*
INSTALLATION NOTES
Remove spur gear cover (if applicable) and input gear cover and save all existing hardware.
Remove both bearings, transmission input gear and input gear pin from stock spur shaft.
Install 8mm pinion onto SVT shaft in the middle of the section with the machined flat. Finger tighten set screws.
Slide 1 bearing onto narrow end of SVT shaft.
Slide spacer sleeve onto SVT shaft.
Line up holes for gear pin in spacer and shaft and insert pin.
Slide input gear onto SVT shaft around pin.
Slide second bearing onto end of SVT shaft and install shaft assembly into chassis.
Reinstall input gear cover.
Adjust spur gear so that it is centered with pinion, add thread lock to set screws and tighten.
Reinstall spur gear cover (if applicable).
*Please note that the new steel sleeve color matches the shaft.
Warranty Info: Due to the amount of options on the market now, we can not warrant this product if it's not used with our motor mount and gearing suggestions.
