SVT Big Bore Motor Mount for Traxxas X-Maxx / XRT
Take your Traxxas X-Maxx or XRT to the next level with the SVT Big Bore Motor Mount, engineered for extreme power setups and hardcore bashing. This precision-machined aluminum motor mount is built to handle the most powerful motors on the market, including Castle and Hobbywing’s biggest options.
Key Features:
-
Mounting holes fit Castle 1717 & 2028, and Hobbywing 5687 & 56113 motors
-
Use all four motor mount screws for added strength with 2028 & 56113 motors
-
Nylon spacer supports Castle 1717 motors
-
Metal tape supports Hobbywing 5687/56113 motors
-
Stainless steel hose clamp prevents vertical motor movement under extreme load
Includes:
-
Black anodized motor mount
-
4x M4x12mm flat head screws
-
Nylon spacer (for 48mm motors)
-
Metal support tape
-
Hose clamp
Installation Notes:

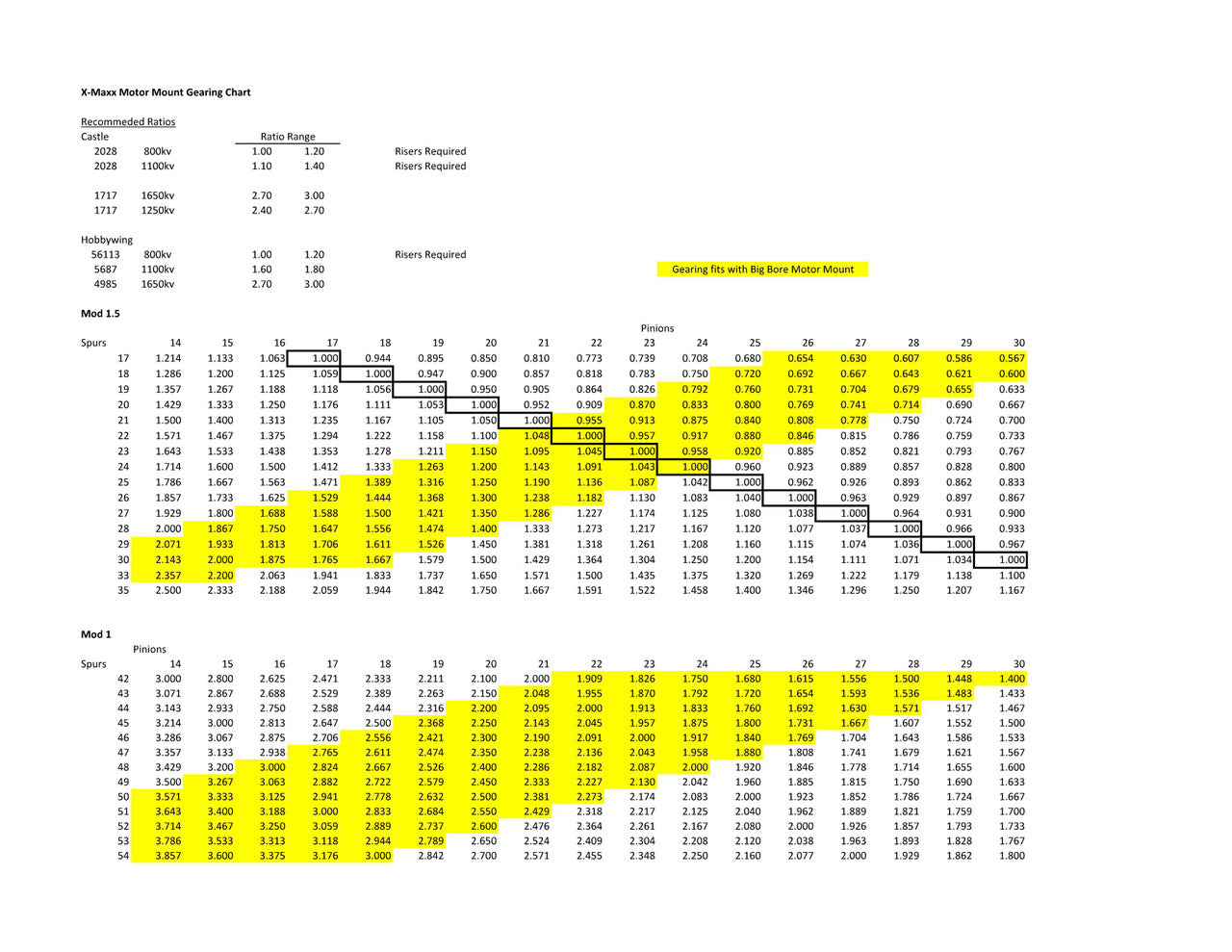

Swap your stock mount by removing the spur gear cover, motor, and stock screws. Slip the hose clamp around the mount and install the motor, using 2 screws for 1717/4985 or 4 screws for 2028/56113 motors. Align and tighten the hose clamp in the mount’s recessed slot. Be sure nothing but the motor contacts the hose clamp. Install your gears—this mount supports all stock gearing (18–26T pinions with 46T spur, and 14–22T with 50T spur) and Mod 1.5 equivalents (up to 48 total teeth) without risers. For 2028 or 56113 motors or taller gearing, add the SVT Risers (sold separately) for clearance. A minor trim to the spur gear cover may be required.
Built for strength and stability, the SVT Big Bore Motor Mount delivers the secure motor fitment you need for serious power—no flex, no shifting, just performance. Let ’er rip!
