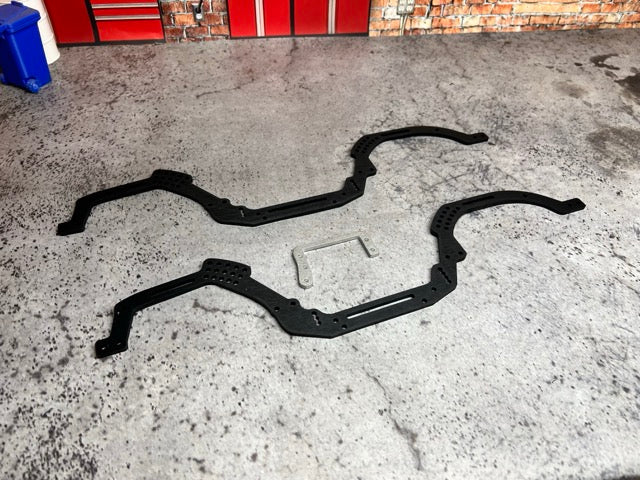

Note: Chassis Rails now come anodized in Black. RC Addict, has a discount bundle with the body or you can source the body from RC Addict - https://rcaddict.com/products/1-10-rc-body-set-san... or https://rcaddict.com/products/1-10-bug-beetle-rc-b...
Introducing the V1B "Bugger" Chassis kit which allows for a near bolt on experience when you combined the Axial UTB18 or Element Bushido12 and a Tamiya Sand Scorcher/Monster Beatle Body. Finish off the build for ultimate realism with the, Spare-Time Hobbies - Tamiya Beatle interior, Mirrors and Rear Window Frame; or fabricate your own to save some coin.
The chassis is design to be virtually a direct swap for your Axial UTB18 or Element Bushido12. You can run the chassis in the traditional Axle Mounted Servo (AMS), or use the provided Chassis Mounted Servo (CMS, UTB18 Only)
Fits: Axial UTB18 & Bushido12
What you get:
-
UTB18 Build: Aluminum (BLACK): Chassis, Pan-hard Mount (Chassis side RAW). Plastic Parts: Skid (UTB18 Transmission), Sliders (Tamiya Hard Bug Body Specific), Front/Rear Sub Bumpers, Battery/E-Plate Front, CMS w/Axle Side Pan-hard (Not Required), Rear Frame Tray, Rear Motor Bay, Mock Motor, Rear Tube Bumper, and Inner Fender Block Out. (If using the Interior, You can use either the Full or HC Tub to clear the transmission.)
- Element Bushido 12 Build: Aluminum (BLACK): Chassis, Plastid Parts: Skid (Bushido 12 Transmission), Sliders (Tamiya Hard Bug Body Specific), Front/Rear Sub Bumpers, Front Chassis Brace, Rear Frame Tray, Rear Motor Bay, Mock Motor, Rear Tube Bumper, and Inner Fender Block Out. (If using the Interior, You must Use the HC Tub to clear the transmission.)
- NOTE: Every order comes with the file pack whether you print them yourself or get a set from us. Enter "ICANREAD" at check out for ten percent off.
What you need: Hardware (See Instructions), Glue, Drill, Marking tool or 2mm Drill Bit (Body Mount Holes), 6mm Drill Bit or Body reamer, Tamiya Bug Body (Monster Beatle or Sand Scorcher), Additional Finishing Items for Appearance of your Bug Body, Paint, Hardware (See Hardware Pack)
Recommended: Due to the increased weight, I recommend adding Foam to the stock tires. Though they do work as is, it drives like you have 8 PSI in your tires and can flatten out with heavy articulation. Additionally, use the narrow 12mm Hex from the kit in the front and standard width in the rear. If you are using custom wheels, adjust offset as needed. Heavier Springs would do it well unless you like the Droop driving experience. The current springs let the rig settle down like it's on hydraulics. It feels nice when driving but may need some preload added or stiffer springs.
CMS Note: If you decide to use the chassis mounted servo option, you must replace the stock axle servo mount with a rear upper link bracket (Stock Not a Tall Riser). My recommendation is to purchase the aluminum Treal Rear Upper Link riser and move the stock plastic upper link mount to the front axle. Once the CMS is installed, the servo will bottom out on the Pan Link before the shocks bottom out. This is a crawler and that it ok, you will still achieve full articulation. If that bothers you, please add about 6mm of nitro fuel line to the front shock shaft to prevent it from hitting. Or internally limit the shock under the piston to shorten the shaft stroke and use the bottom most row of shock-mounting holes.
Maximum Tire Size Without Trimming the Body: 1.9 Wheel and 3.85in (98mm) Tire

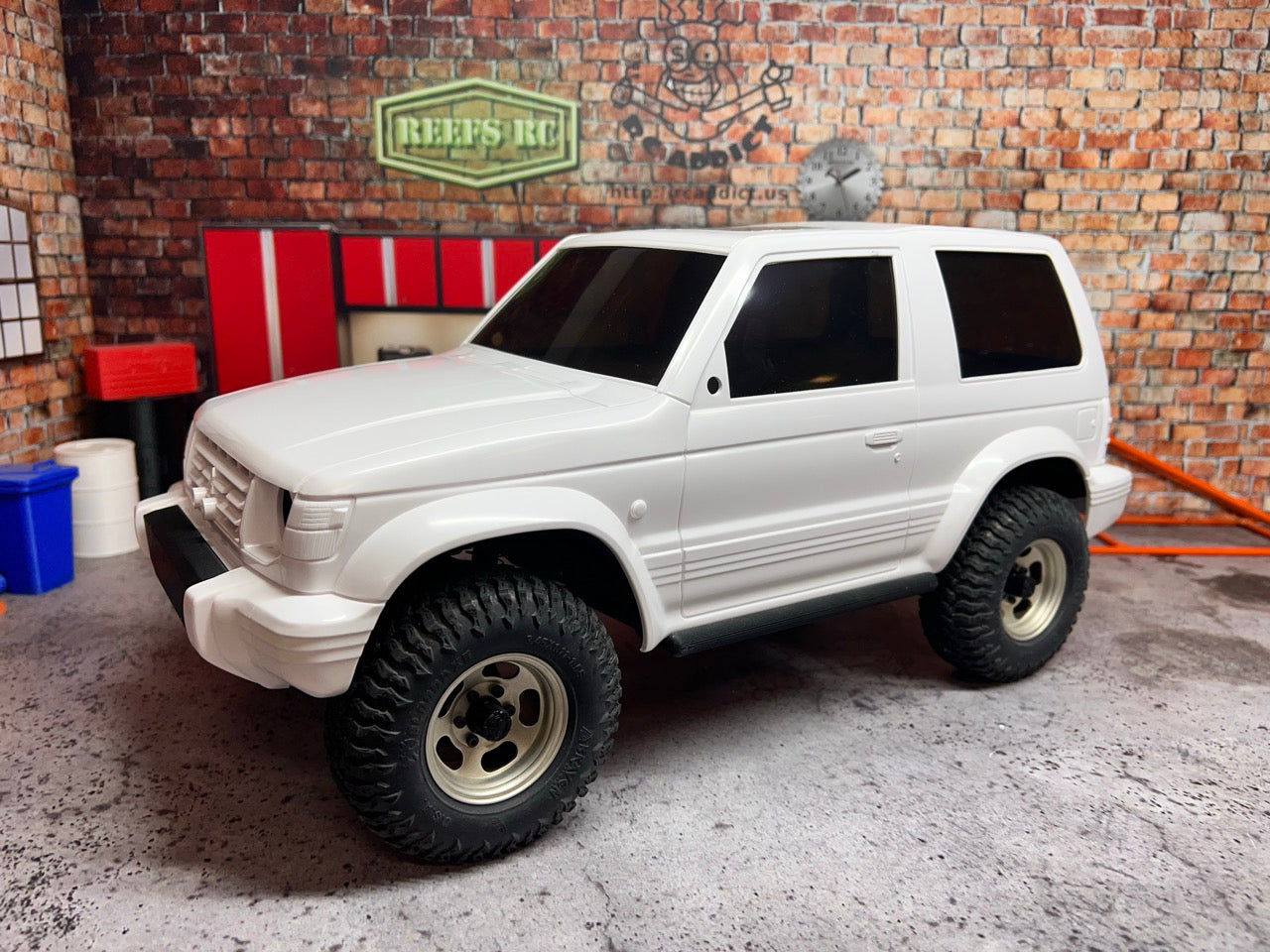

In the Photo: Tires, Element RC General Grabber A/T X 1.55in Tires, Wheels: 1.9 TGH H.O., Electronics: Stock, SSD 1.5 Stamped Wheels, Pitbull Braven Blood AX 3.45" Tires
Video Build Link: In Progress
Paper Instructions Link: https://drive.google.com/file/d/1r4x7HGKE1WHh6lRiP...
Products That Pair Well with this Build: Head over to https://rcaddict.com/ to find parts.
Treal Rear Upper Link Riser
Hot Racing Aluminum Rear Axle Truss Upper Link Mount
Reefs RC Micro 99 Servo Winch
Axial Racing Aluminum Link Set
Element RC General Grabber A/T X 1.55in Tires
Team Garage Hack H.O. Wheels
Spare-Time Hobbies Micro Winch Mount
Axial UTB18 RTR
Element Bushido 12
Tamiya Sand Scorcher Hard Body
Tamiya Monster Beetle Hard Body
Due to the nature of 3D printing, items may contain tiny visual blemishes. Items may require some trimming and painting for optimal visual appeal/fit; similar to what you would expect to do with model parts.
IMPORTANT: Do not use power drivers on 3D printed parts. Over tightening printed parts and cause premature cracking and crushing. Always ensure you hardware will not bottom out in the screw pocket. This can also cause at 3D printed part to break prematurely.
Printed Parts - These parts will be printed in Black (Unless otherwise requested) using advances slicing methods for maximum strength. All 3D printed parts come with a lifetime replacement guarantee. If you break a part, simply send us a photo and your order number. The photo is simply to evaluate for common issues and help identify potential improvements to existing designs.
