V1W Z-Pro: Laydown PH CMS

Regular price $14.95

Shipping calculated at checkout.

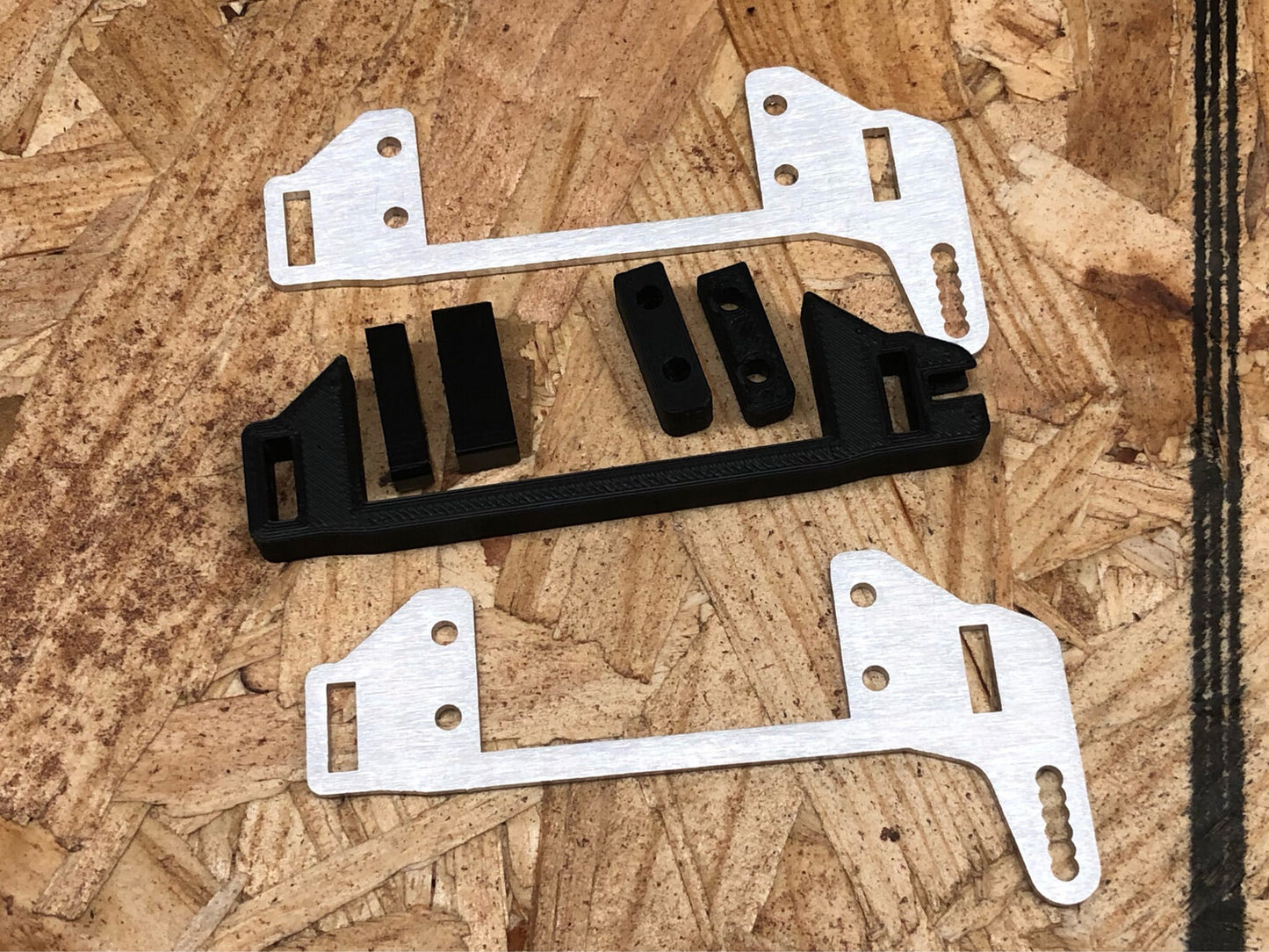

You will Receive: 1 pair of Servo Plates made of 2mm 6061 Aluminum, Spacers, Hardware if Selected (6 - M3 Nylock, 6 - M3x16mm, 2 - M3x12mm)

Note: 3D Print files will be available after purchase for down-load. You will receive the print files free of charge, even if you select the full kit.

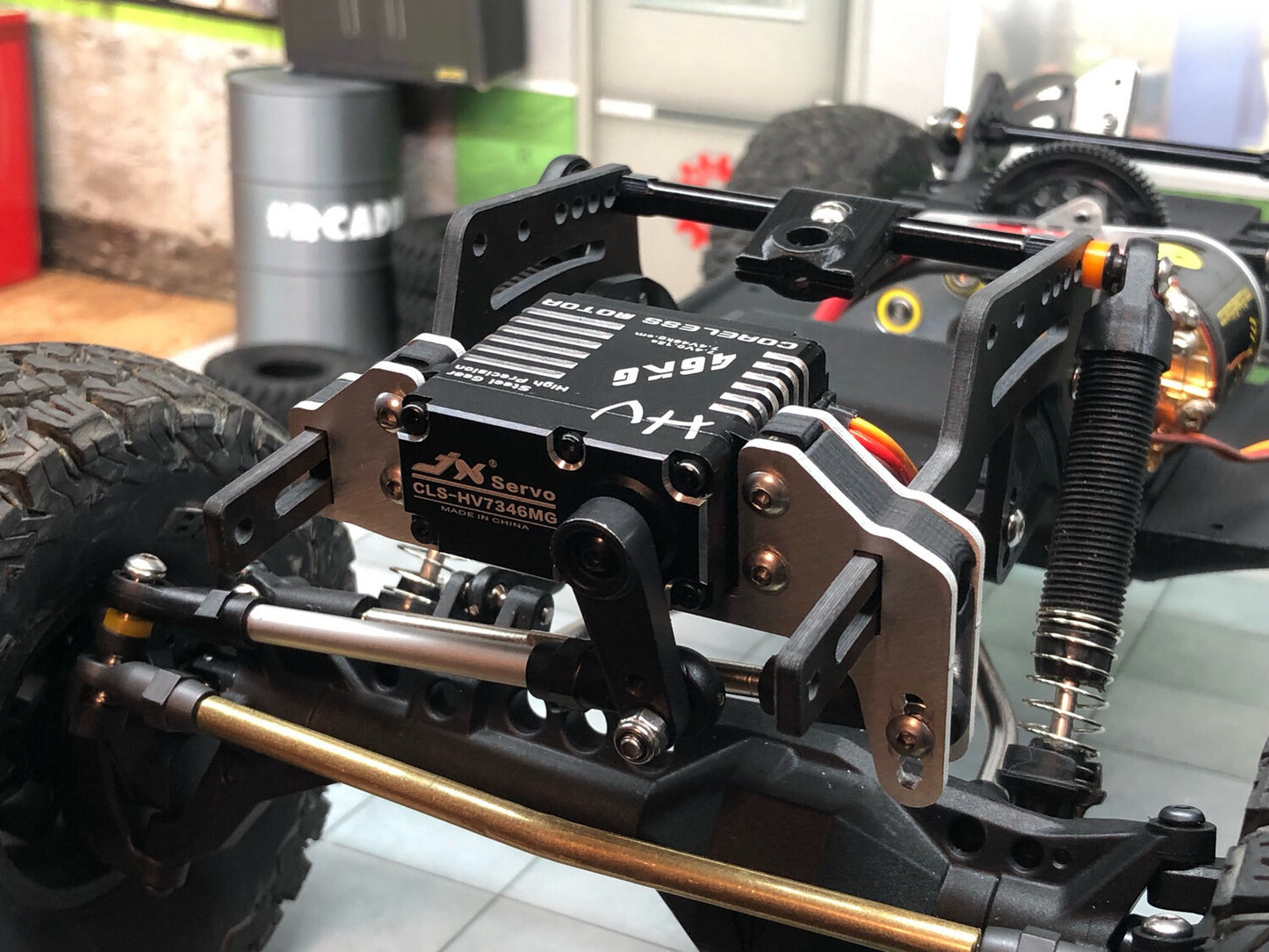

Chassis Mounted Servos (CMS): You will have two options, Single Lay Down or Double Standup. Both styles have an integrated Panhard Mount (PHM). If you plan to run a Chassis Mounted Servo Winch, you will need the Double Standup mount. The Laydown Servo Mount only provides room for one servo. The slots on the side of the chassis allow for the CMS and PH to slide forward or backwards to align the PH more precisely to your axle position. Either of the servo mounts can work in both the front or rear positions of the chassis. Our recommendation is, Double CMS up front and Laydown CMS in the rear (If using rear steer). Laydown CMS can prove to be difficult to configure depending on your drag link position and length of your servo horn. (Note: Excessive Shock travel can limit steering with a Laydown CMS)




Due to the nature of 3D printing, items may contain tiny visual blemishes. Items may require some trimming and painting for optimal visual appeal/fit; similar to what you would expect to do with model parts.


 IMPORTANT: Do not use power drivers on 3D printed parts. Over tightening printed parts and cause premature cracking and crushing. Always ensure you hardware will not bottom out in the screw pocket. This can also cause at 3D printed part to break prematurely.

Printed Parts - These parts will be printed in Black (Unless otherwise requested) using advances slicing methods for maximum strength. All 3D printed parts come with a lifetime replacement guarantee. If you break a part, simply send us a photo and your order number. The photo is simply to evaluate for common issues and help identify potential improvements to existing designs.

Contact us @ Sales@spare-timehobbies.com or PM us @ Spare-Time Hobbies on Face Book.
