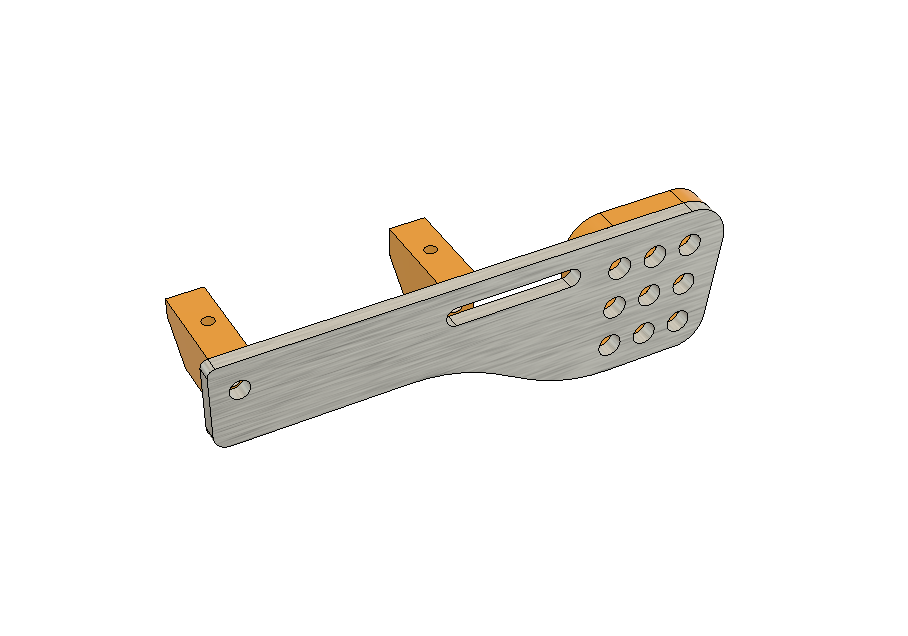

The Z-Pro Servo Mount, Side DIG/Winch mount is designed to hold a micro servo to function your Capra Transmission Dig or a Micro Servo Winch. The mount fixes to the to the rear upper link holes with one screw thought the mount, spacer and upper link. The second screw will secure it from further movement in an available hole that does not interfere with the upper links.

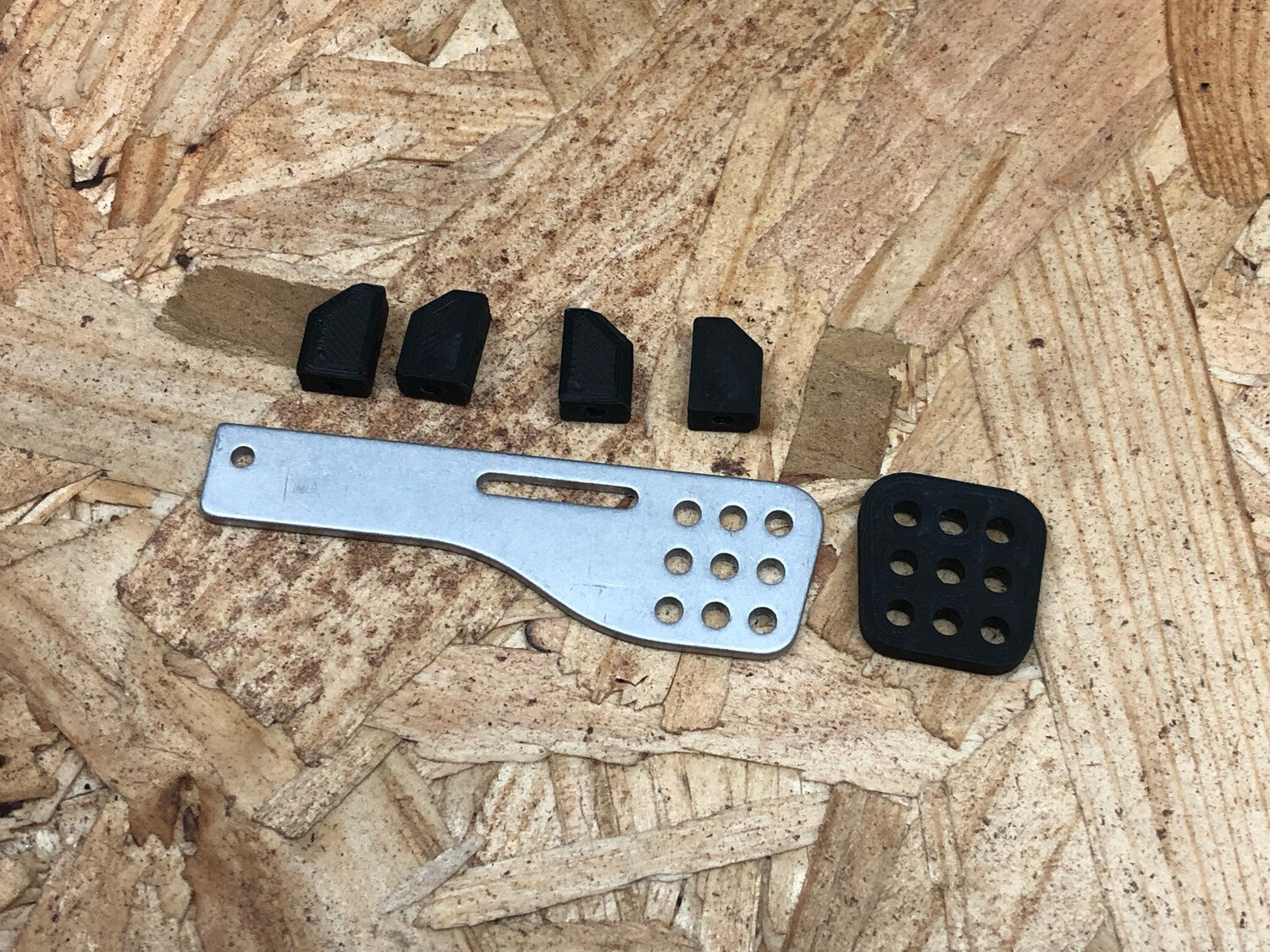

You will Receive: 1 - Aluminum Bracket, 4 - Micro Servo Mount Ears, 1 - Spacer, Hardware if selected (2 - M2.5x6, 1 - M3x20, 1 - M3x16, 1 - M3 Lock Nut)
If you intend on using the "Capra DIG", You mush use this Servo Mount Bracket.
Note: 3D Print files will be available after purchase for down-load. You will receive the print files free of charge, even if you select the full kit.
Skid Selection: The Z-Pro offers and 8 degree sloped belly to better aid clearing challenging break overs. Our skids with the exception of the TRX4 are designed to maintain a horizontal output shaft to maintain proper driveline alignment. We offer 3 Skids for 6 different populate transmissions. Capra, TRX4, SCX-10 3Gear, and a Universal Skid which fits the (TGH 2 Low, Axial 3 Gear, Element OD, Deluxe CB) Transmissions. (Note: Other variations can be designed upon request if we have the transmission on hand)
Motor Fitment with Transmissions: Capra (Up to Fusion or 550 Size Motor), Axial 3 Gear (540 Motors), Element OD (540 motors), Deluxe CB (Revolver Type Motors), TGH 2 Low (540 Motors), TRX4 (Fusion or 550 Sized Motor Dependent on Axle Used and Shock full Compression Length)
Due to the nature of 3D printing, items may contain tiny visual blemishes. Items may require some trimming and painting for optimal visual appeal/fit; similar to what you would expect to do with model parts.
IMPORTANT: Do not use power drivers on 3D printed parts. Over tightening printed parts and cause premature cracking and crushing. Always ensure you hardware will not bottom out in the screw pocket. This can also cause at 3D printed part to break prematurely.
Printed Parts - These parts will be printed in Black (Unless otherwise requested) using advances slicing methods for maximum strength. All 3D printed parts come with a lifetime replacement guarantee. If you break a part, simply send us a photo and your order number. The photo is simply to evaluate for common issues and help identify potential improvements to existing designs.
Contact us @ Sales@spare-timehobbies.com or PM us @ Spare-Time Hobbies on Face Book.
